Technical Parameters：
| Receiver: | |
| ● Input voltage：DC 5V~24V | ● Connection mode：Common anode |
| ● Output：3CH-RGB /4CH-RGBW | ● Static power consumption：<1W |
| ● Max output current：≤6A | ● Net weight：58g(set) Gross weight：60g(set) |
| ● Controller size：L60mm*W30*H15mm / Output wire length: 125MM | ● Output power：5V:≤30W, 12V:≤72W, 24V:≤144W |

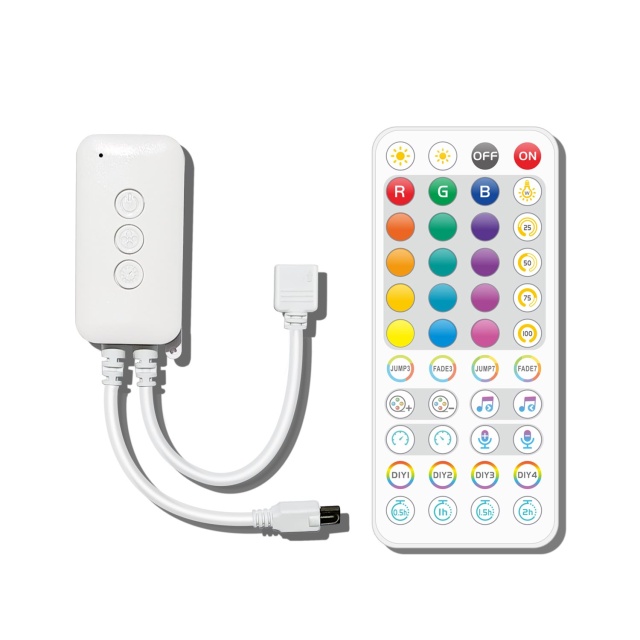

| Remote control： |
|
●Working voltage：3V, 1* CR2025 betton cell |
| ●External dimension：L124mm*W54*H7mm： |
| ●Remote control distance：8-12m |
Tuya APP wifi device pairing instructions:
1. Before use, please install wifi control software App (“Tuya Smart” or “Smart life”) on mobile, open the phone wifi function and connect the router;
2. Open the control software APP-“Tuya Smart”or“Smart life” on the phone:
If you don’t have an account, please click “Register” to register an account first; if you already have an account, you can use the existing account to log in directly.
3. After registration, log in and enter the homepage "Home", Click "Add Device" or "+" sign in the upper right corner to add a wifi device; Select the "Lighting" line item in the Add Manually column, select the “Lighting (Wi-Fi)” go to the “Add Device” page;
4. Controller device part installation :
Connecting controller and output led light first, then connect the power supply , to ensure no short circuit between the cables before power on,supply voltage is DC5-24V, do not input on other voltage.
5.Wifi device configuration status setting & Factory reset:
Long press”on/off” button on the controller for 5 seconds into wifi pairing status, and the light fast blinking means setting successfully.
6.Select wifi routing network and input password ---> click “next”---> click “blinking quickly”--->, app will remind “ Add successfully” , the output light will stop fast blinking at the same time. now you can customize the naming settings for the controller.
Tuya APP Interface
