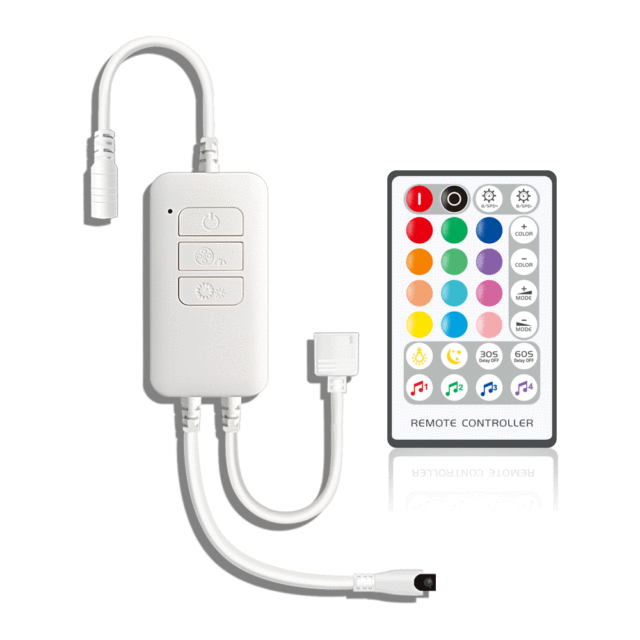

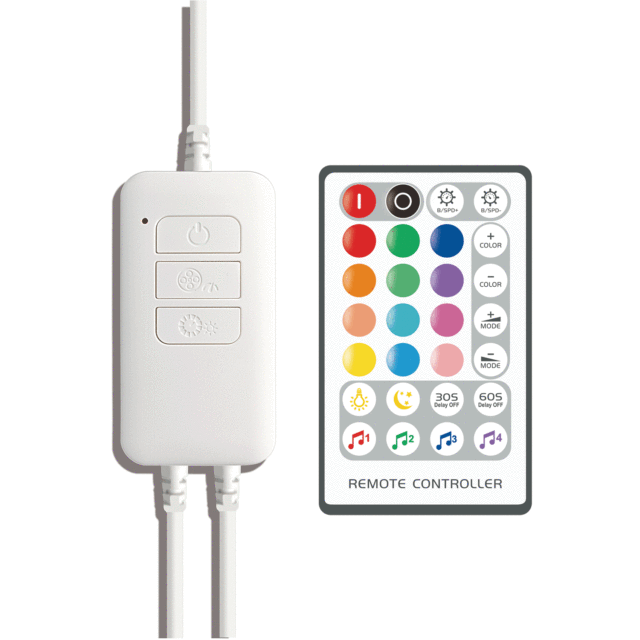

Bluetooth Music IR 28 keys RGB(W) controller is a intelligent LED controller which is compatible with APP control and IR Remote control. It use latest Bluetooth solution technology to ensure device’s stability and easy to use. Main function are Music control,16 million colors, dynamic modes, brightness adjustment, speed adjustment etc.

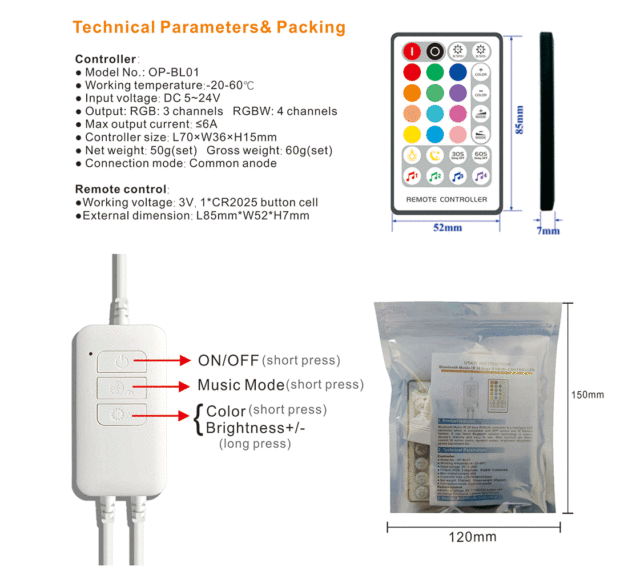

Technical Parameters：

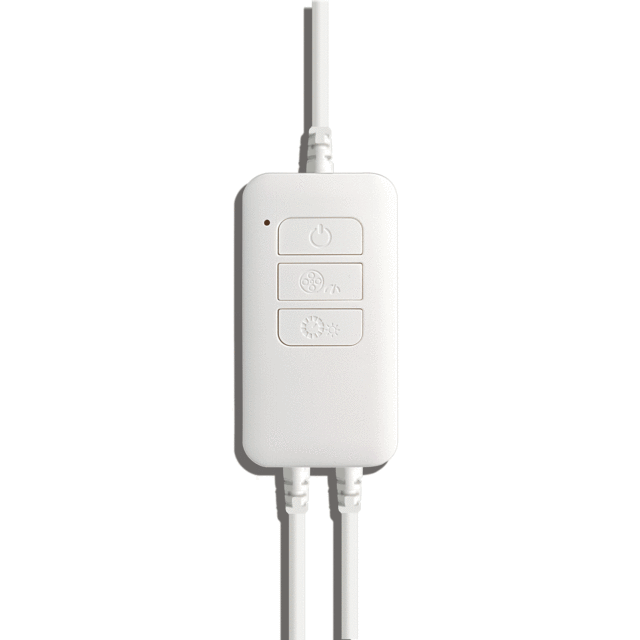

Controller：

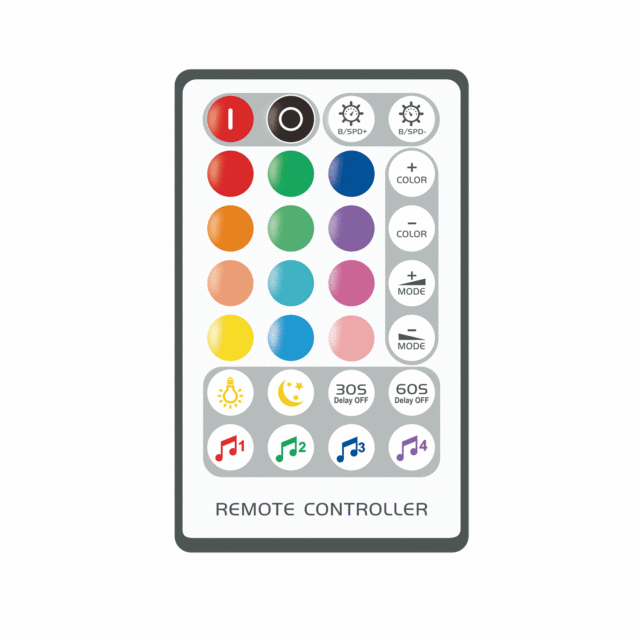

Remote control:

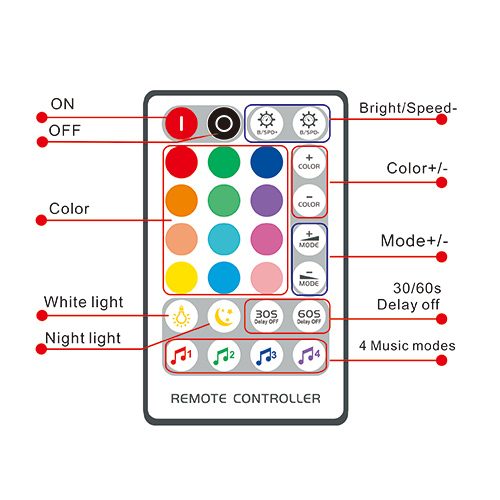

Controller & Remote control fuction instruction：
ISTRIP APP pairing instructions:
(1) APP download
① Scan this QR Code to download “ISTRIP” APP via mobile phone.
② Other methods to download APP:
iOS system: search “ISTRIP" in APP Store.
Android system: search “ISTRIP" in Google play.
③ Open your phone Bluetooth function.
(2) Controller device installation
① Connecting controlller and output led light first.
② Connecting input power supply , to ensure no short circuit between the cables before power on, supply voltage is DC5-24V, do not input on other voltage.
(3) To add bluetooth device
1: Open the control software APP--“ISTRIP” ;
2: Enter the homepage, Click "+" in the upper right corner to add the bluetooth device;
3: APP into “connection” page, long press the device name “HT-01020" to rename the device name,

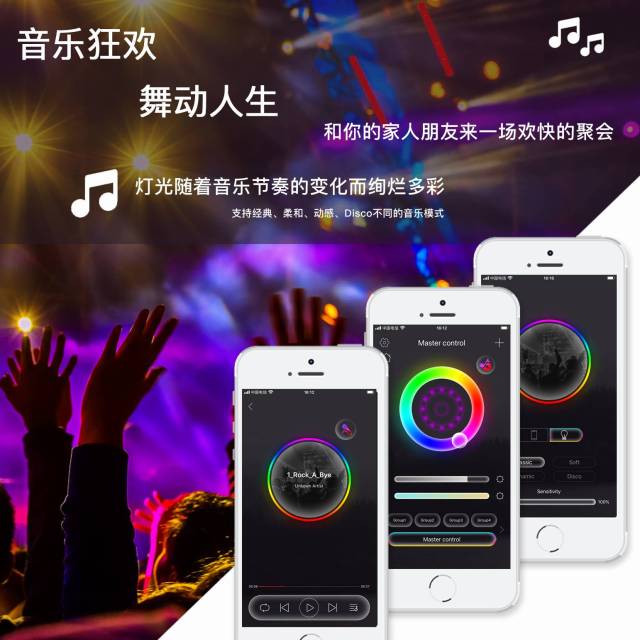

APP main function:
(1) Home page main function:
1: Touch the Palette in home page can choose 1600 millions colors.
2: Click in the middle of palette can turn on/off bluetooth device.
3: Slide first slide bar can adjust device brightness from 1%~100%.
4: Slide second slide bar can adjust lamp color’s saturation.
5: There are 9 static colors that can be selected quickly.
Tuya APP Interface:
Cautions:
