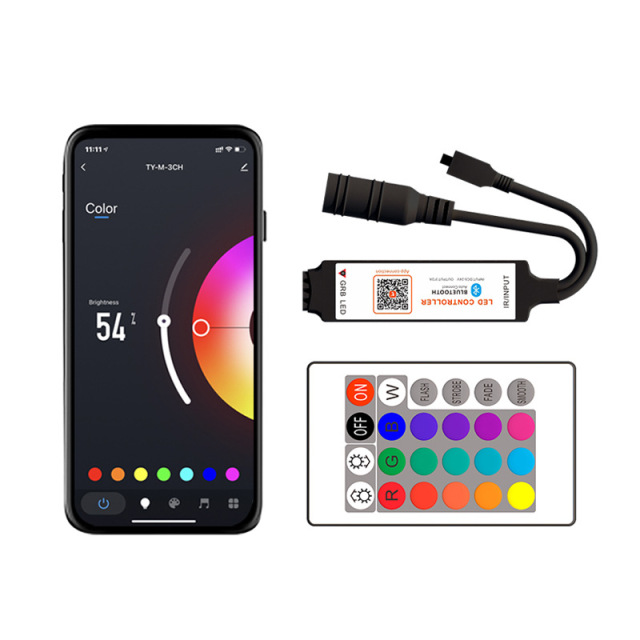

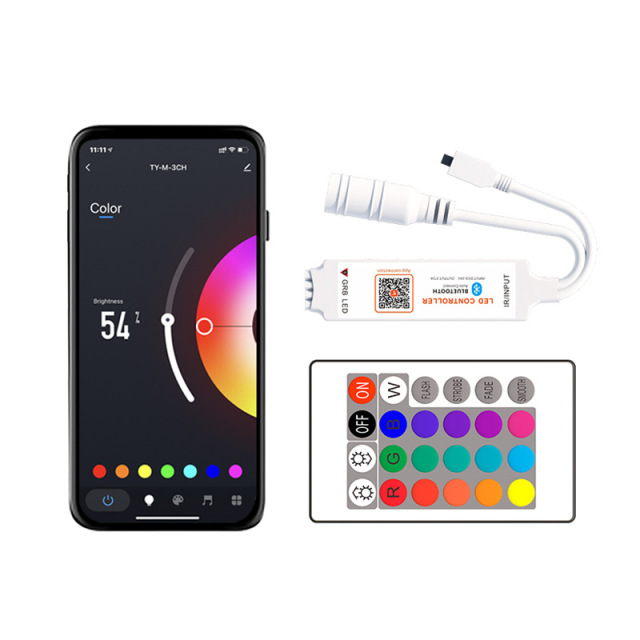

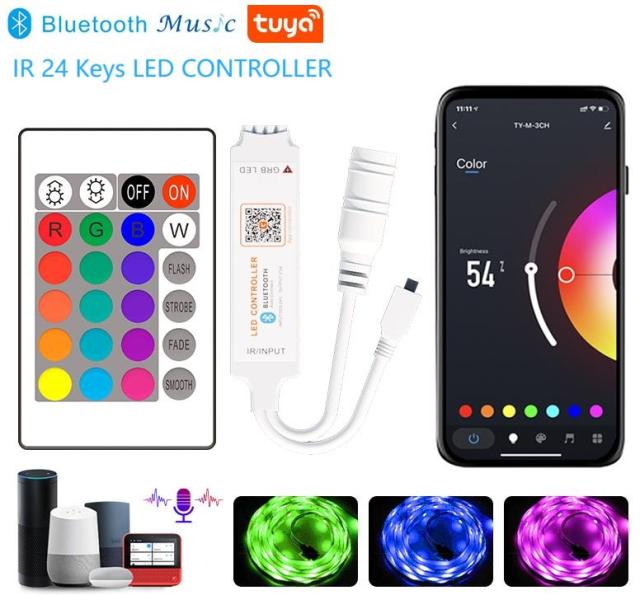

Tuya smart Bluetooth mini RGB LED controller is a intelligent LED controller which is compatible with "Tuya smart" APP control and IR Remote control. It use latest Bluetooth solution technology to ensure device’s stability and easy to use. Main function are Music control,16 million colors, dynamic modes, brightness adjustment, speed adjustment etc.

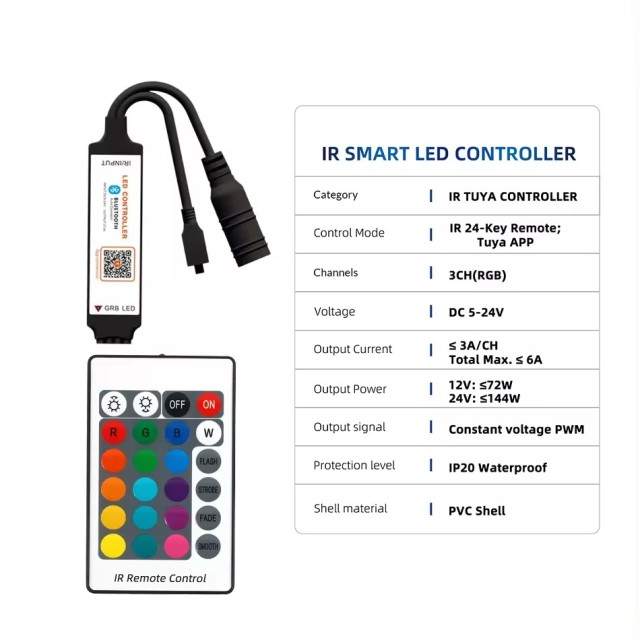

Technical Parameters：
Controller：
Remote control:
Tuya APP wifi device pairing instructions:
1. Before use, please install wifi control software App (“Tuya Smart” or “Smart life”) on mobile, open the phone wifi function and connect the router.
2. Open the control software APP-“Tuya Smart”or“Smart life” on the phone:
If you don’t have an account, please click “Register” to register an account first; if you already have an account, you can use the existing account to log in directly.
3. After registration, log in and enter the homepage "Home", Click "Add Device" or "+" sign in the upper right corner to add a wifi device; Select the "Lighting" line item in the Add Manually column, select the “Lighting (Wi-Fi)” go to the “Add Device” page;
4. Controller device part installation :
Connecting controller and output led light first, then connect the power supply , to ensure no short circuit between the cables before power on,supply voltage is DC5-24V, do not input on other voltage.
5.Wifi device configuration status setting & Factory reset:
Long press”on/off” button on the controller for 5 seconds into wifi pairing status, and the light fast blinking means setting successfully.
6.Select wifi routing network and input password ---> click “next”---> click “blinking quickly”--->, app will remind “ Add successfully” , the output light will stop fast blinking at the same time. now you can customize the naming settings for the controller.
"Tuya Smart" APP Interface & Application:
Cautions:
