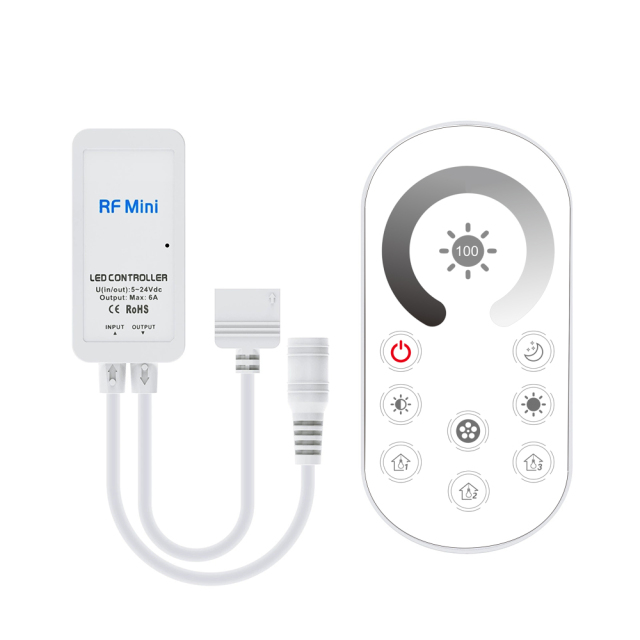

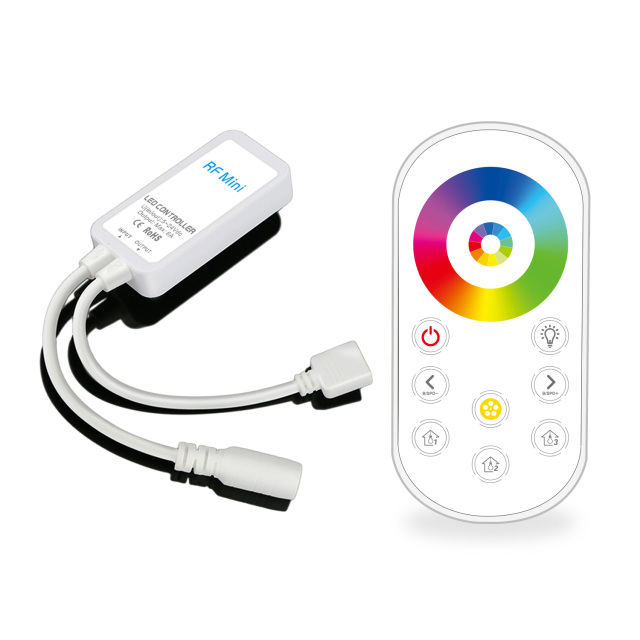

RF Ultrathin full touch RGB(W) LED Controller

No.RF-D1(DIM), D2(CCT),D3(RGB),D4(RGBW),D5(RGBCCT)

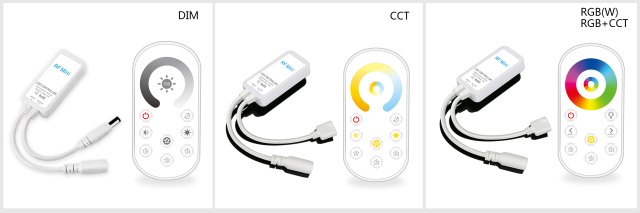

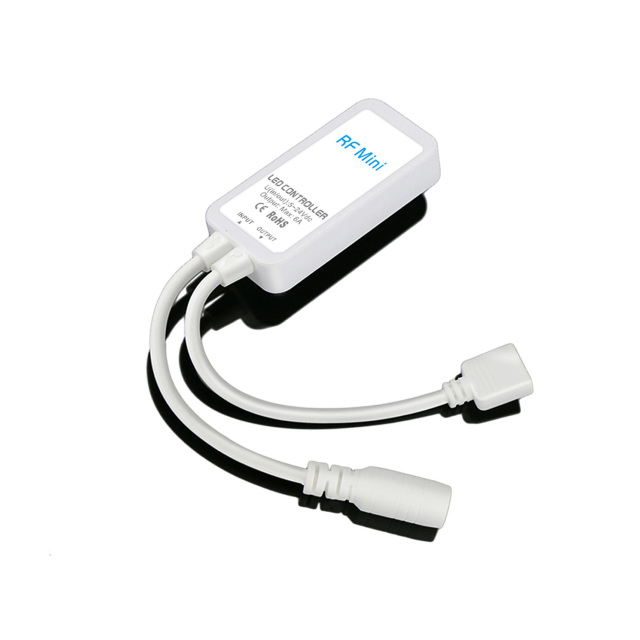

RF Ultrathin Mini led controller has 5 types, which form a series. The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from. The main features of the controller are:

Compact body and convenient wiring;
Simple and clear operation,
Compatible with full touch remote, one touch to change color and modes;
Diversified dynamic mode;
Soft dimming effect.

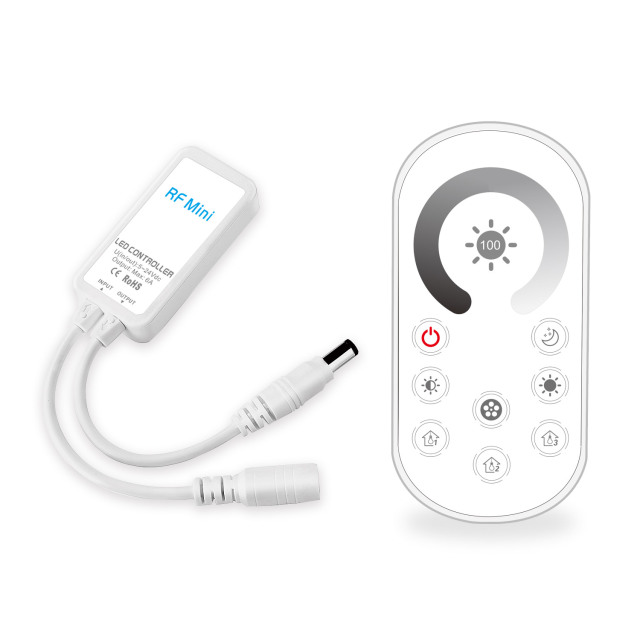

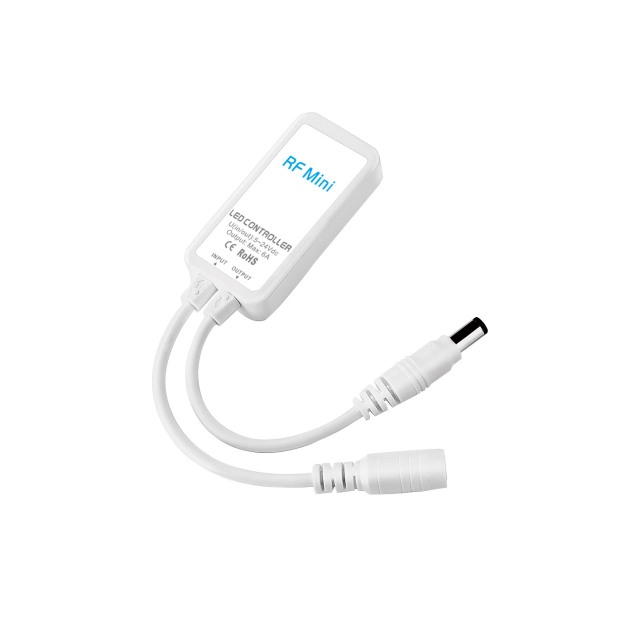

DIM:

1 Channel

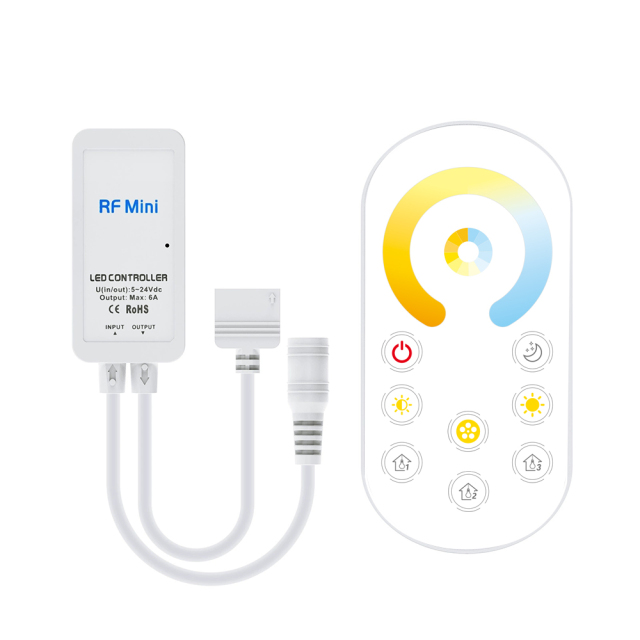

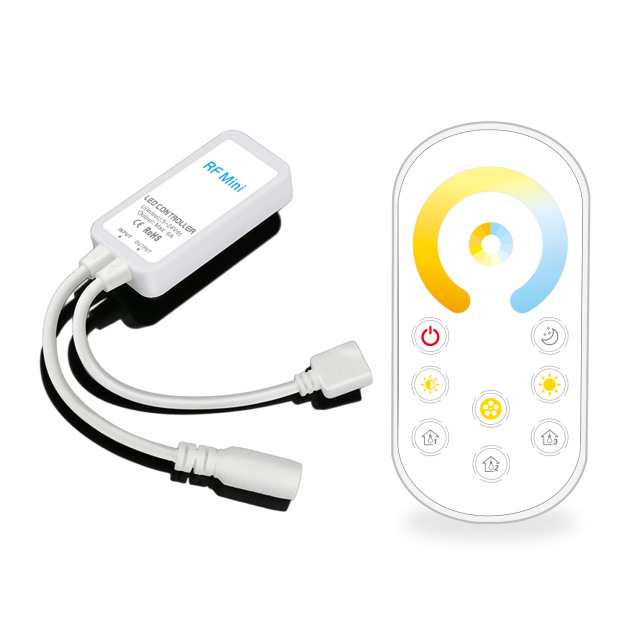

CCT:

2 Channel

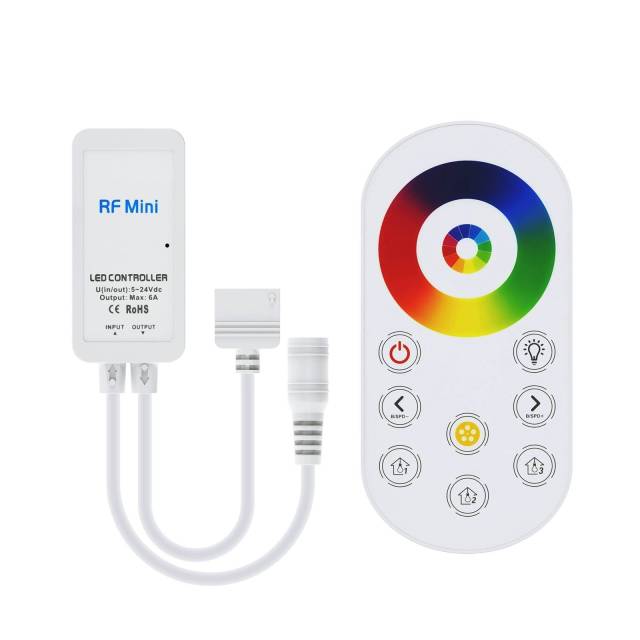

RGB:

3 Channel

RGBW:

4 Channel

RGBCCT:

5 Channel

Description

Technical Parameters：

- - - - Product name: RF Ultrathin Miniled controller

        Model No.：RF-D1~D5

        Working temperature：-20-60℃

        Input voltage：DC5~24V

        Connection mode：Common anode

        controller size：L58×W28×H11mm

        Net weight：55g

        Gross weight：62g

        Static power consumption：<0.5W

        Output current：<2A/CH max:6A

        Output power: Max: 5V:<30W,12V:<72W, 24V:<144W

        Output control: DIM/CCT/RGB/RGBW/ LED lamps

        Certification: CE ROHS

Controller & Remote fuction instruction：

Connection description：

Application:

Attention:

Controller’s input voltage is DC5~24V, never connectto others or AC220V, Pls do not overload, the total maxoutput current is 6A;
Before using the infrared remote, the insulating filmshould removed.
Please don’t reverse the power input connection ofboth cathode and anode, please switch on again onlywhen it is in right connection and no short circuit.
Please power off the device if you don’t use it for aquit long time, don’t place in high dust, high temperatureenvironment.

5. Applicable site：TV table, counter, night table, bathroom etc
