RF mini CCT LED Controller--17 keys remote control

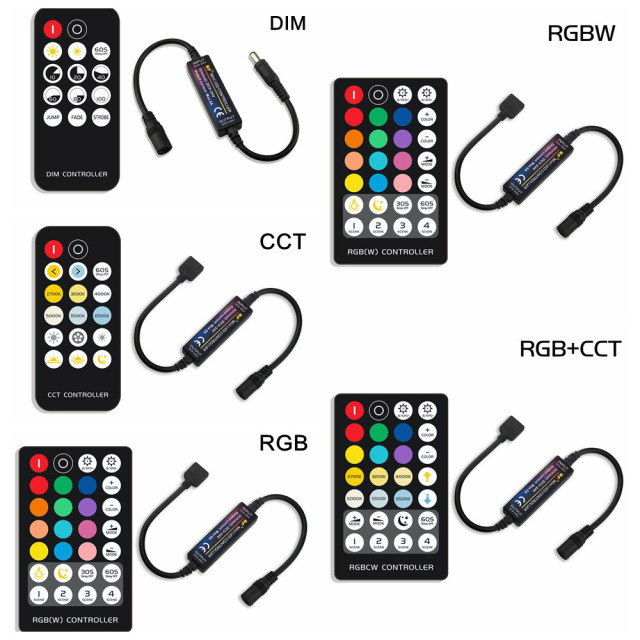

RF Mini led controller has 5 types, which form a series. The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from.
The main features of the controller are:
1. Compact body and convenient wiring;
2. Simple and clear operation, comfortable remote button feel;
3. Diversified dynamic mode;
4. Soft dimming effect.

CCT:

2 Channel

Description

Technical Parameters：

- - - - Product name: RF mini CCT LED Controller
      - Model No.：RF-M2
      - Working temperature：-20-60℃
      - Input voltage：DC5~24V
      - Connection mode：Common anode
      - controller size：L55.7×W16.6×H10.7mm
      - Net weight：40g
      - Gross weight：45g
      - Static power consumption：<0.5W
      - Output current：<2A/CH max:6A
      - Output power: Max: 5V:<30W,12V:<72W, 24V:<144W
      - Output control: Color tempurature LED lamps
      - Certification: CE ROHS

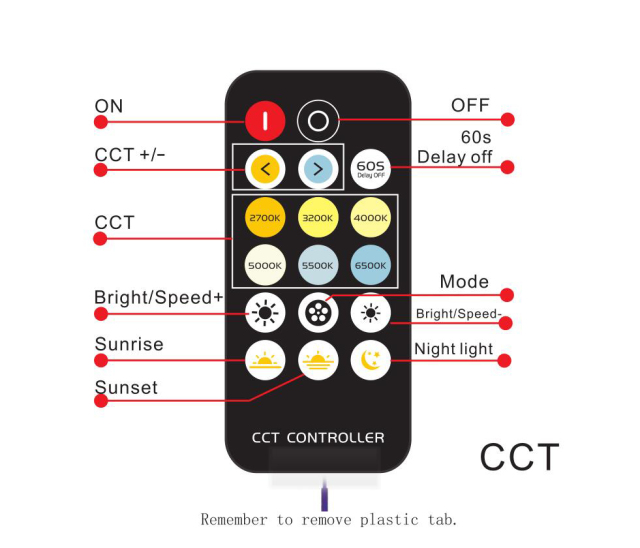

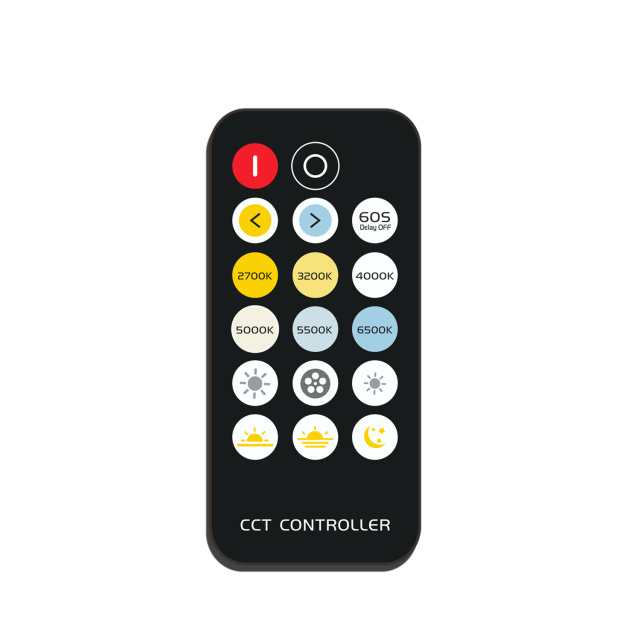

Controller & Remote fuction instruction：

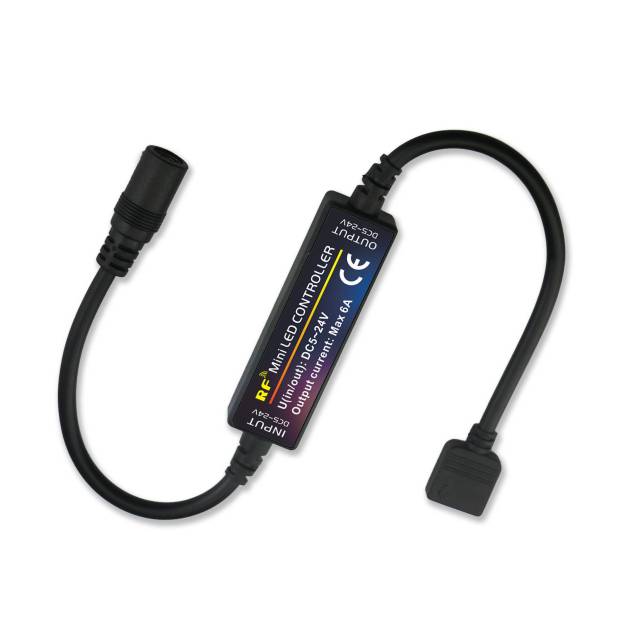

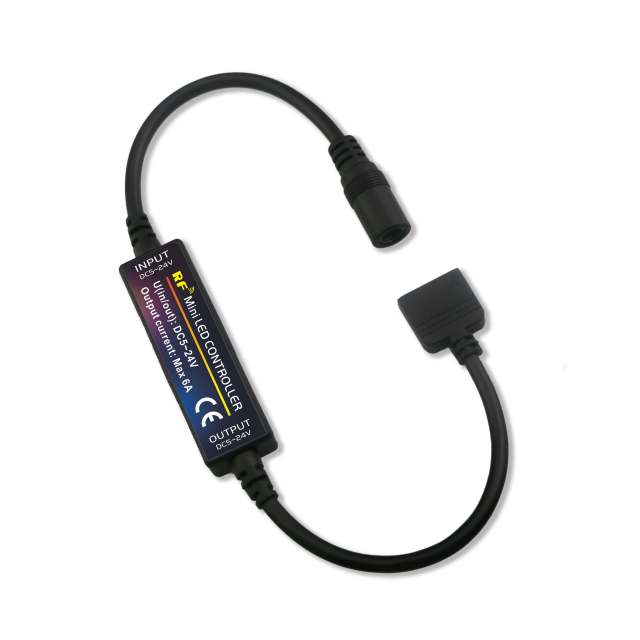

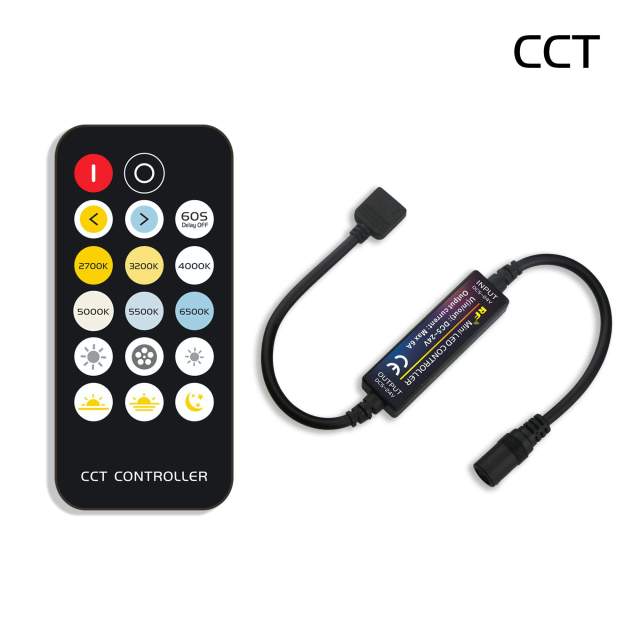

Product picture：

Connection description：

Application：

Attention:

Controller’s input voltage is DC5~24V, never connect to others or AC220V, Pls do not overload, the total maxoutput current is 6A;
Before using the infrared remote, the insulating filmshould removed.
Please don’t reverse the power input connection ofboth cathode and anode, please switch on again only when it is in right connection and no short circuit.
Please power off the device if you don’t use it for aquit long time, don’t place in high dust, high temperature environment.

5. Applicable site：TV table, counter, night table, bathroom etc
