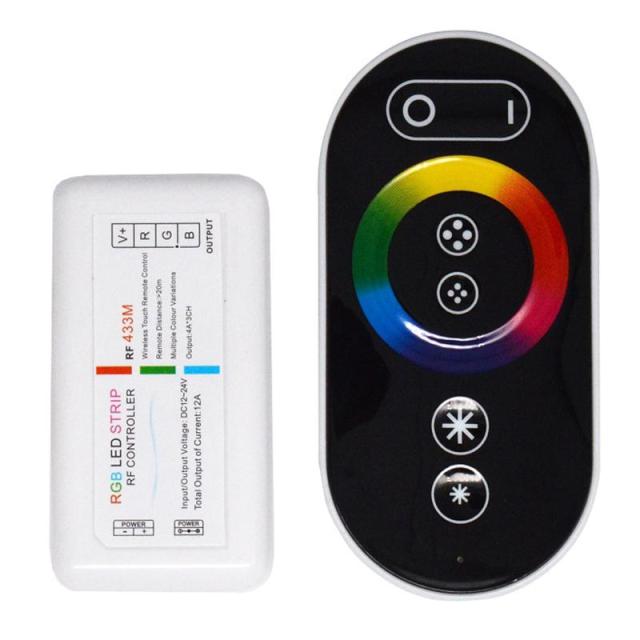

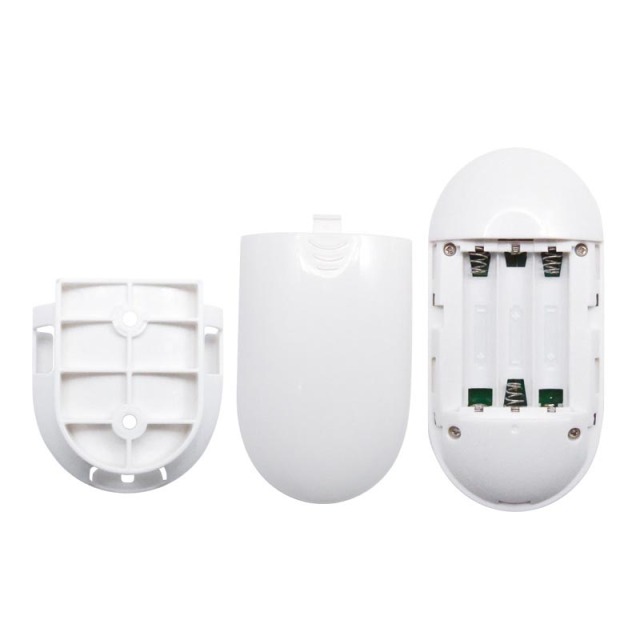

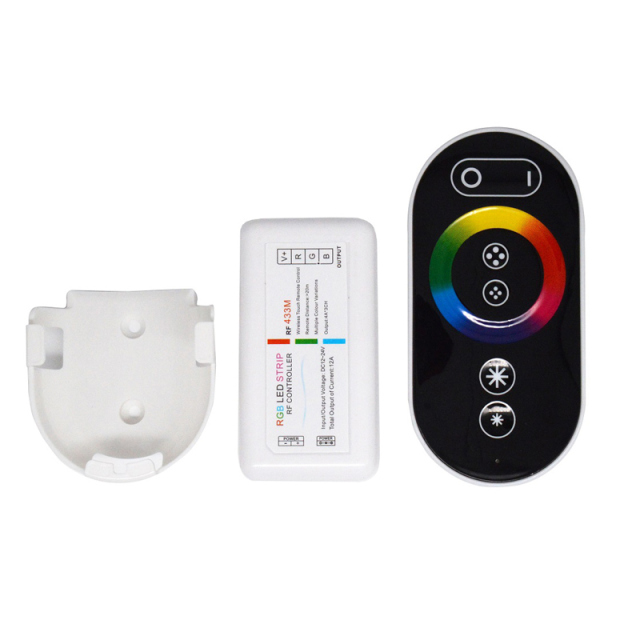

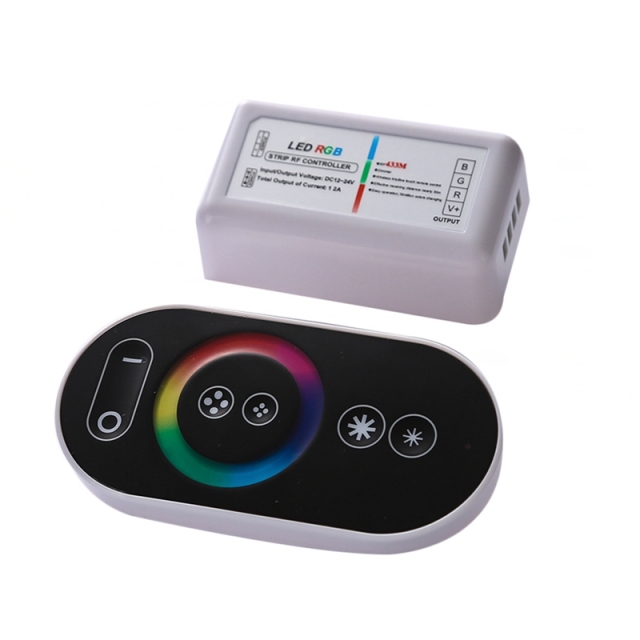

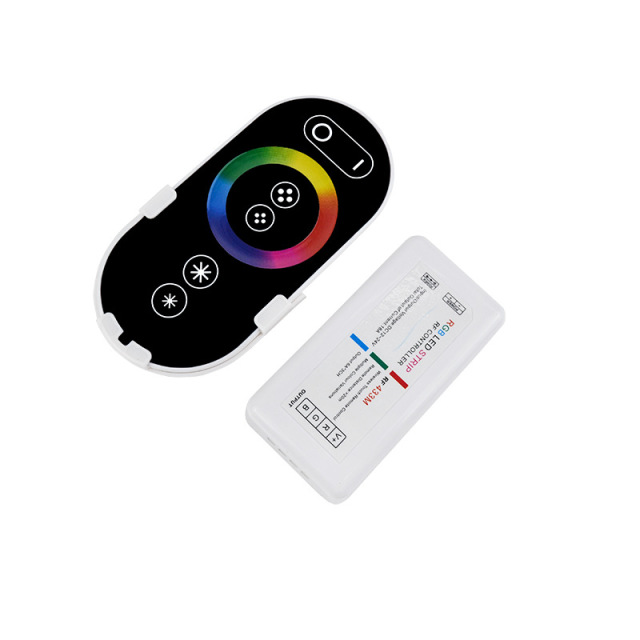

Technical Parameters：
Controller:● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：3 Channel
● Connection mode：Common anode
● Controller size：L85×W45×H23mm
● Packing size：L20*W13*H3CM
● Net weight：110g
● Gross weight：130g
● Static power consumption：<1W
● Output current：<6A/CH
● Output power：12V:<216W；24V:<432W
● Carton size: 42*29*30CM 7.3KG/carton
● Remote: RF433Mhz

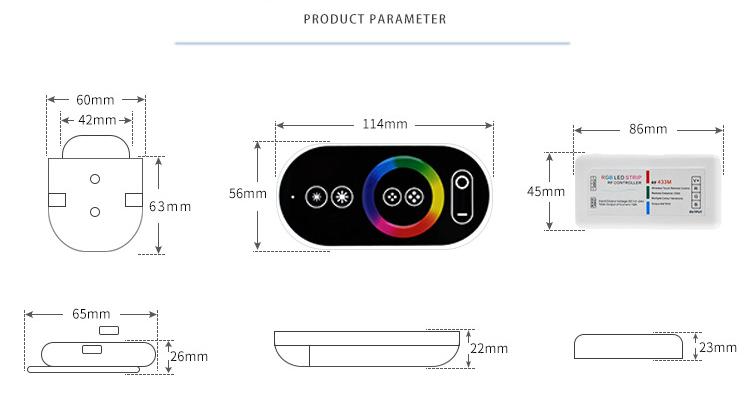

Controller Dimention：
External dimension:
Direction for use
● Function introduction：1、Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2、In the open area remote control distance is over 30 meters;
3、Each controller and the remote are sticked with an unique ID on it,each controller can be study two remote control’s ID,
this means that one controlled can be controlled by two remote at the same time.Besides,this controller can make it to be controlled by the unique remote ,
or make one remote to controlled many controller as well.
4、the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.
● Operation method:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2.Just the ON key is valid in OFF condition, to turn on the controller by press the ON key for the first time.the controller will be in the same mode as last time it save.
3.when controller is on ,press the Mode button can change the mode(Total 18 mode),the mode are as following table:
|
No.
|
Mode
|
Remarks
|
No.
|
Mode
|
Remarks
|
|
1
|
Static Red
|
Brightness adjustable
|
10
|
Three color fade
|
Speed and brightness are adjustable
|
|
2
|
Static Green
|
11
|
Three color flow
|
|
3
|
Static Blue
|
12
|
Seven color fade
|
|
4
|
Static Yellow
|
13
|
Seven color flow
|
|
5
|
Static Purple
|
14
|
Three color stroboscopic
|
|
6
|
Static Cyan
|
15
|
Seven color stroboscopic
|
|
7
|
Static White
|
16
|
Three color burst flashing
|
|
8
|
Three color Jump
|
Speed and brightness are adjustable
|
17
|
Seven color burst flashing
|
|
9
|
Seven color Jump
|
18
|
Automatic mode
|
- Match code function Instruction: Every dimmer is already match code with the unique remote(the ID in the remote and the dimmer are the same),
if the user want to match code again, then just need to press the “ON” and “speed/brightness-”key at the same time within 5 seconds after powered on the dimmer.
- Remarks:One receiver can be match code with two remote at the same time.
if one remote match code with many receiver, than can realize one remote to controlled many receiver.

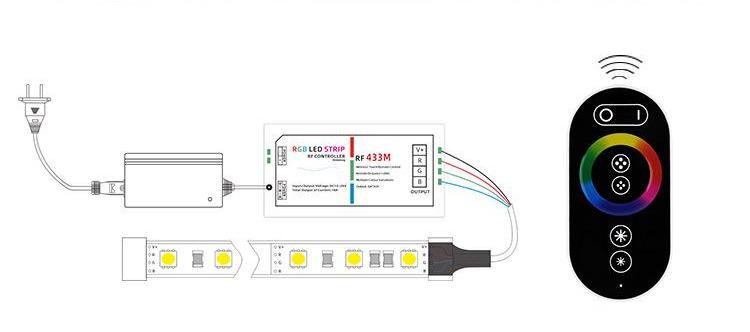

Connection description：
Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
