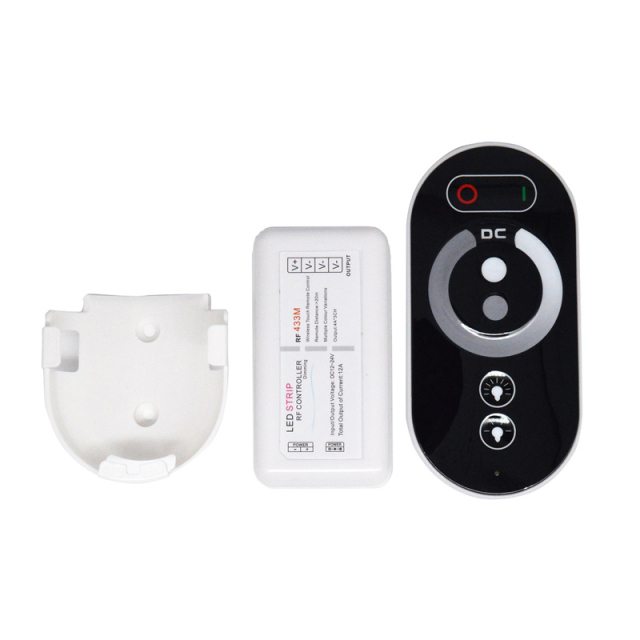

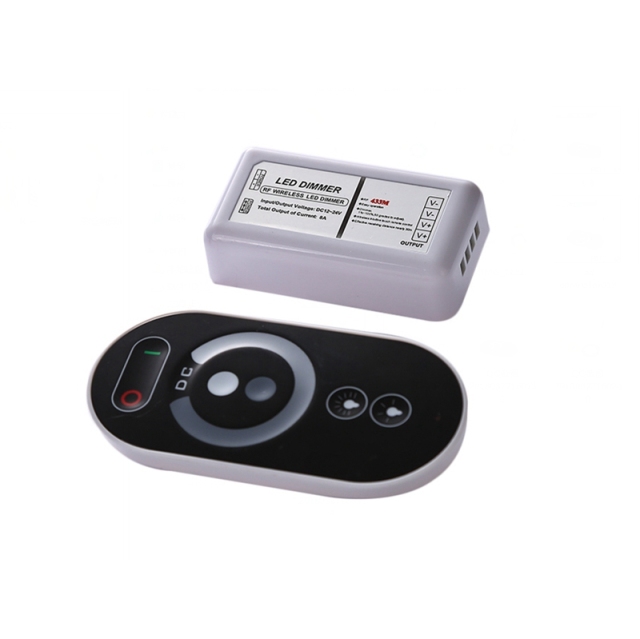

Technical Parameters：

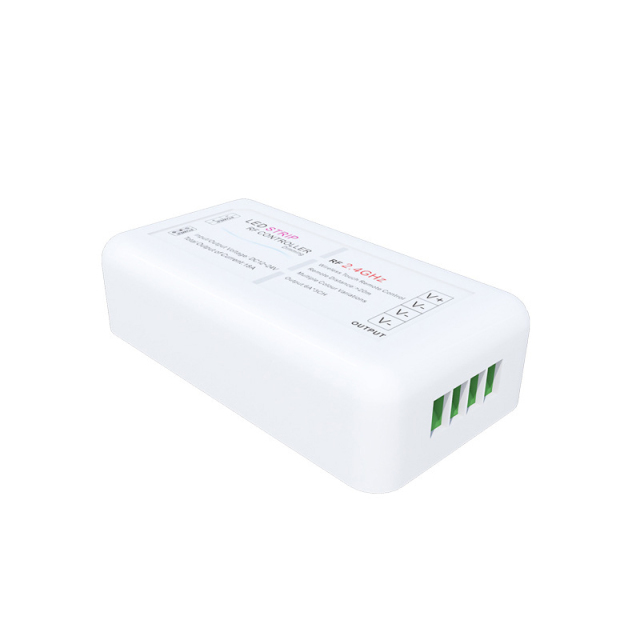

Controller:● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：3 Channel (3 Channel signal are the same)
● Connection mode：Common anode
● Controller size：L85×W45×H23mm
● Packing size：L20*W13*H3CM
● Net weight：110g
● Gross weight：130g
● Static power consumption：<1W
● Output current：<6A/CH
● Output power：12V:<216W；24V:<432W
● Carton size: 42*29*30CM 7.3KG/carton
● Remote: RF433Mhz radio frequency wireless

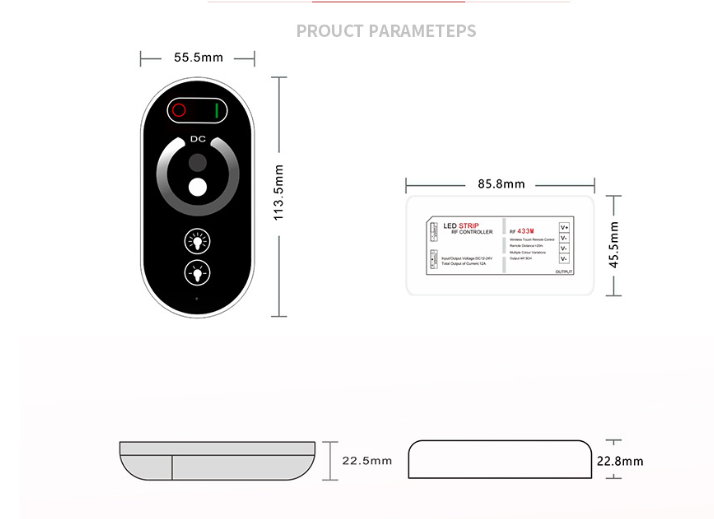

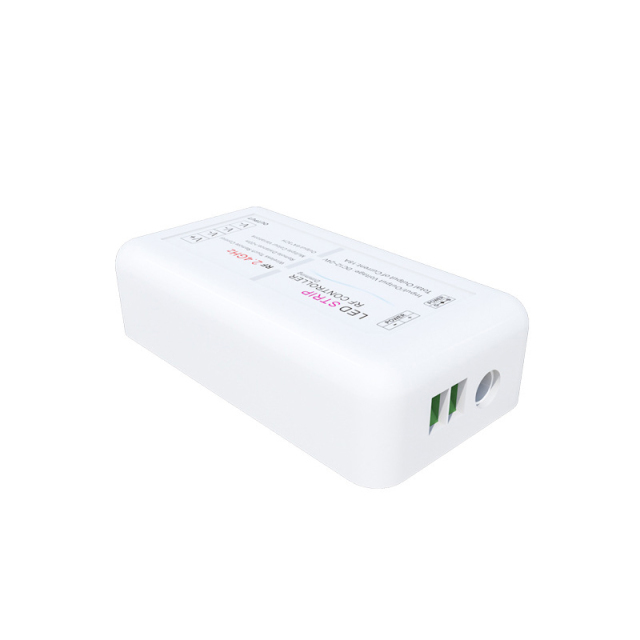

Controller Dimention：
External dimension:
Direction for use
1、Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2、In the open area remote control distance is over 30 meters;
3、Each controller and the remote are stick with an unique ID on it,each controller can be study two remote control’s ID,
this means one controller can be controlled by two remote at the same time.Besides,this controller can make it to be controlled by the unique remote ,
or make one remote to controlled many controller as well.(remarks:need to make to order)
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2.Adopt wireless 433.9mhz RF full Touch remote control, its function as follows:

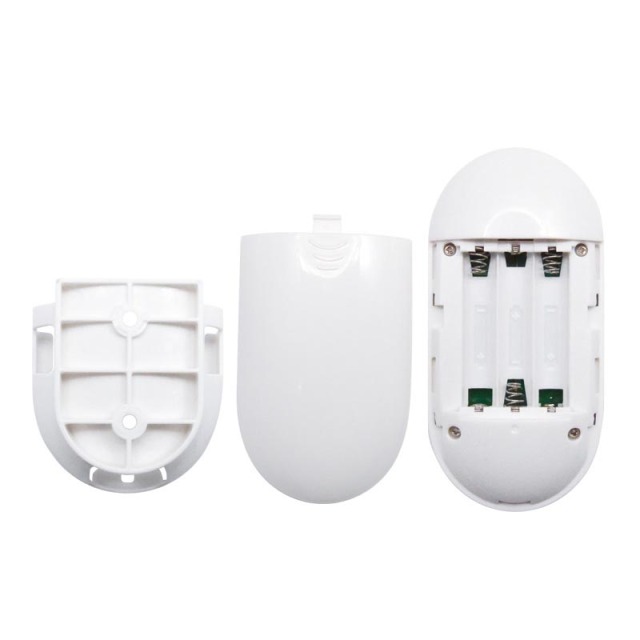

Remote control Function instruction:
-
Use the RF433Mhz radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
-
About over 30m empty remote control distance.
-
Remote control touch function as below:
- Match code function Instruction: Every dimmer is already match code with the unique remote(the ID in the remote and the dimmer are the same),
- if the user want to match code again, then just need to press the “ON” and “Speed/brightness-”key at the same time within 5 seconds after powered on the dimmer.
- Remarks:One receiver can be match code with two remote at the same time.if one remote match code with many receiver, than can realize one remote to controlled many receiver.

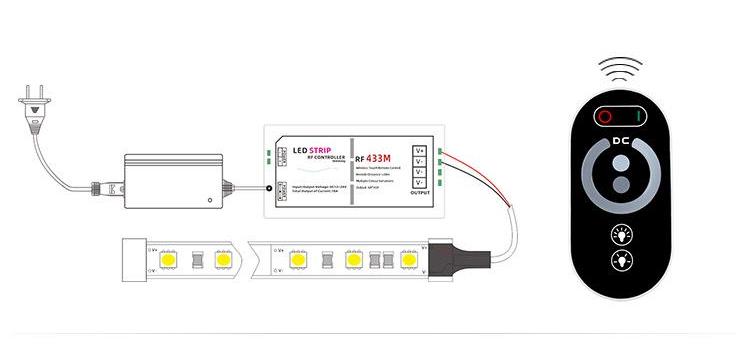

Connection description：
Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
Application:
