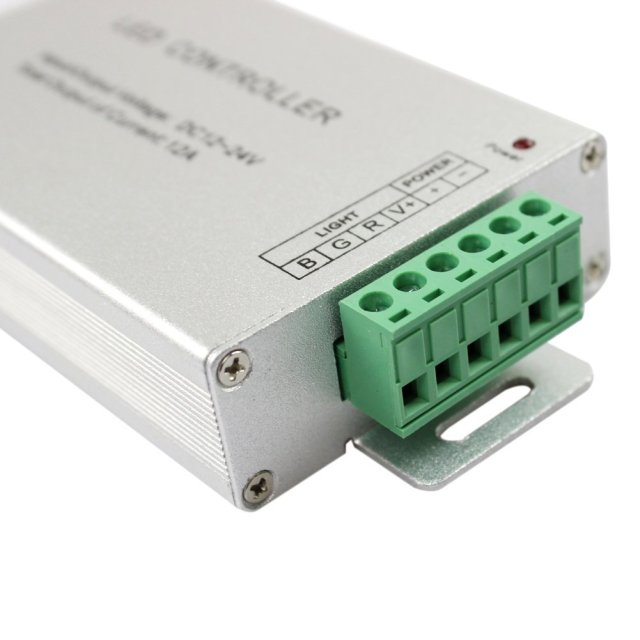

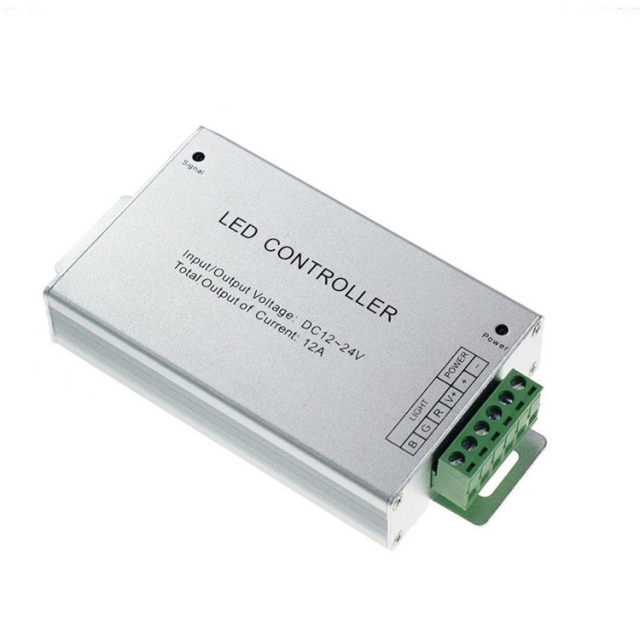

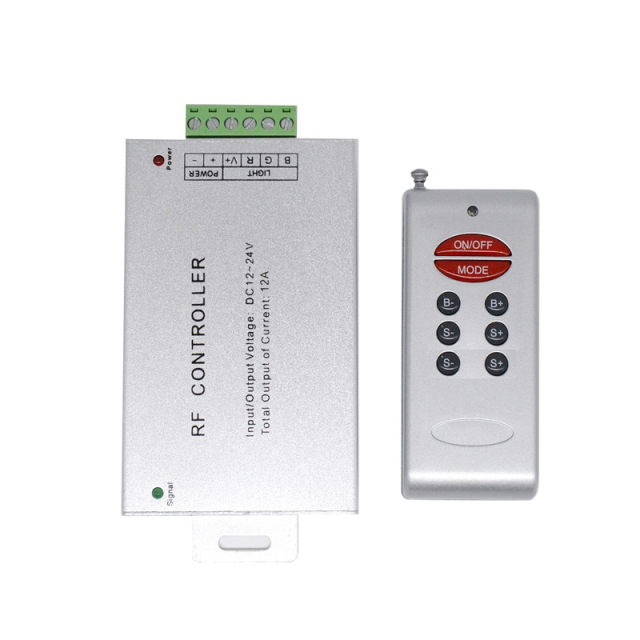

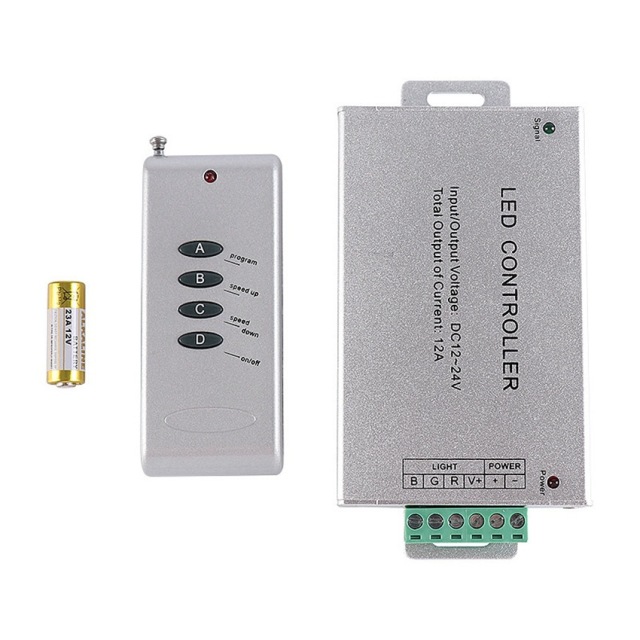

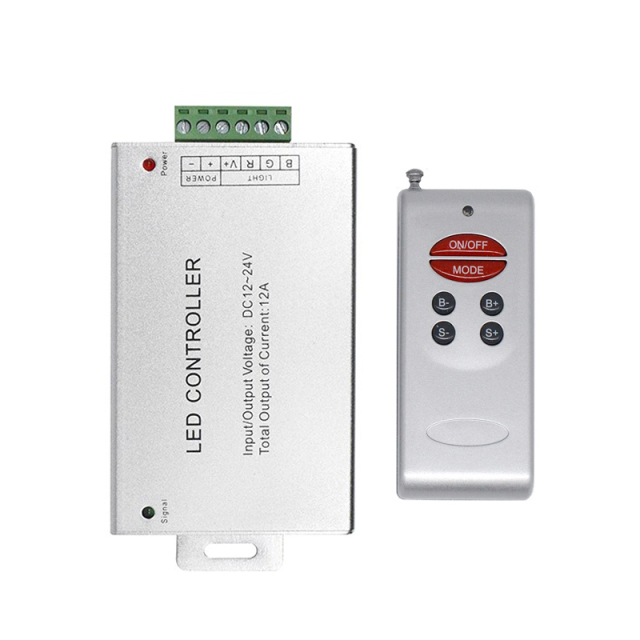

RF 4 keys rgb led controller - Aluminium shell DC12~24V (4 keys / 6 keys / 8 keys)

No.RF-LT4 (4key), RF-LT2 (6key), RF-LT3 (8key)

RF 4-key controller adopts the advanced micro control unit, it is used for controlling a variety of constant voltage LED lights. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, strobo flash and other effects of change.

Remote Type:

4 keys

6 keys

8 keys

Output Current::

4A/CH

6A/CH

8A/CH

Description

Technical Parameters：

● Working temperature：-20-60℃
● Input voltage：DC12~24V
● Output：3 circuit
● Connection mode：Common anode
● Controller size：L130×W65×H25mm
● package size：L135×W80×H54mm
● Net weight：150g
● Gross weight：165g
● Static power consumption：<1W
● Output current：<4A/ch or <6A/ch (optional)
● Output power： (4A) 12V< 144W; 24V< 288W
(6A) 12V< 216W; 24V< 432W
● Carton size: 42*29*30CM 50pcs 8.3 KG/carton
● Remote: RF433Mhz radio frequency wireless

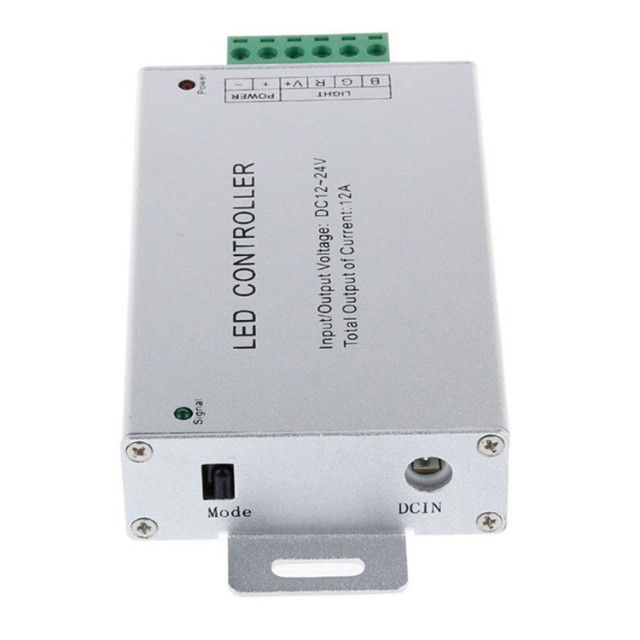

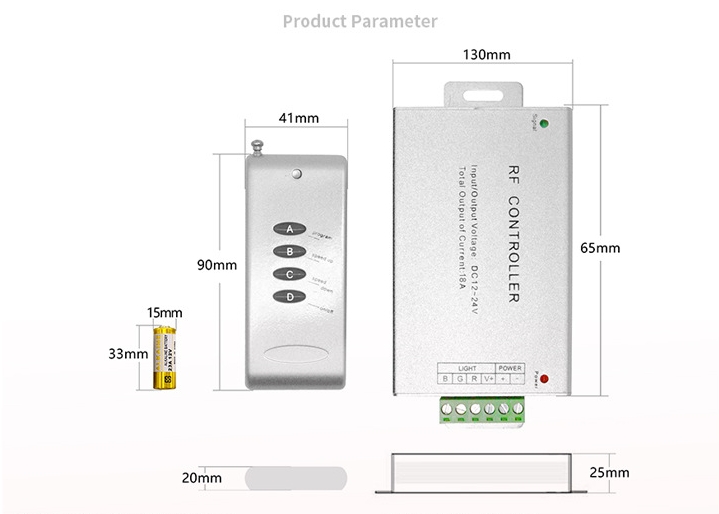

Controller Dimention：

External dimension:

Direction for use
Connection description:

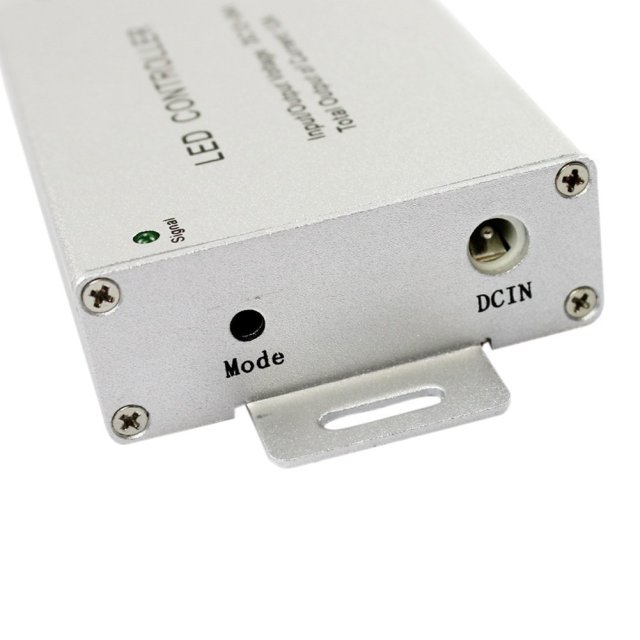

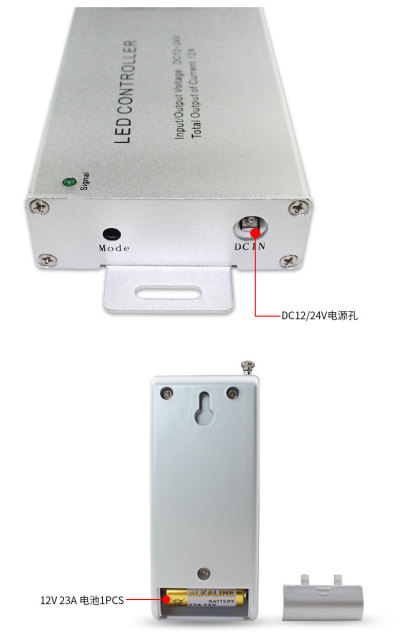

Power input interface (port1):

Adopt conventional power transposon as a DC power input interface.
Power input interface (port2):

Adopt male and female connector with screw.

Load output interface:

Adopt male and female connector with screw.
Function introduction：
● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

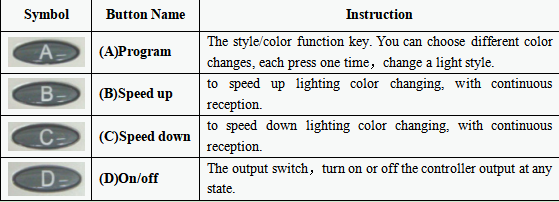

● Adopt wireless control method, 4/6/8 keys in total, function of each button as below:

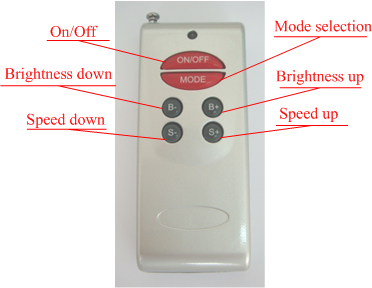

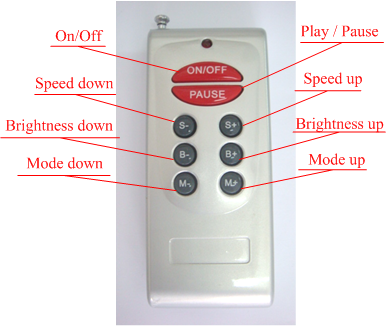

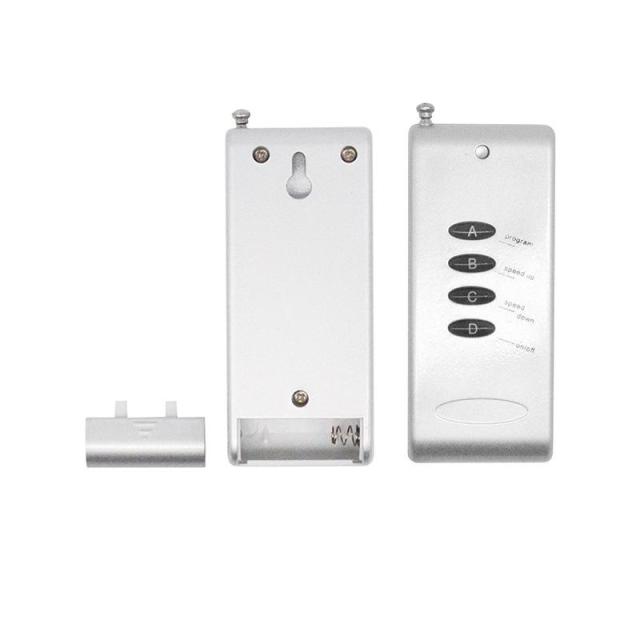

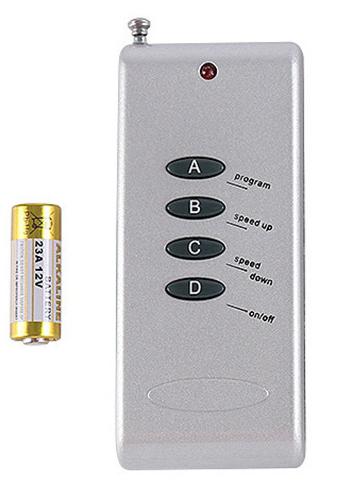

Remote introduction:

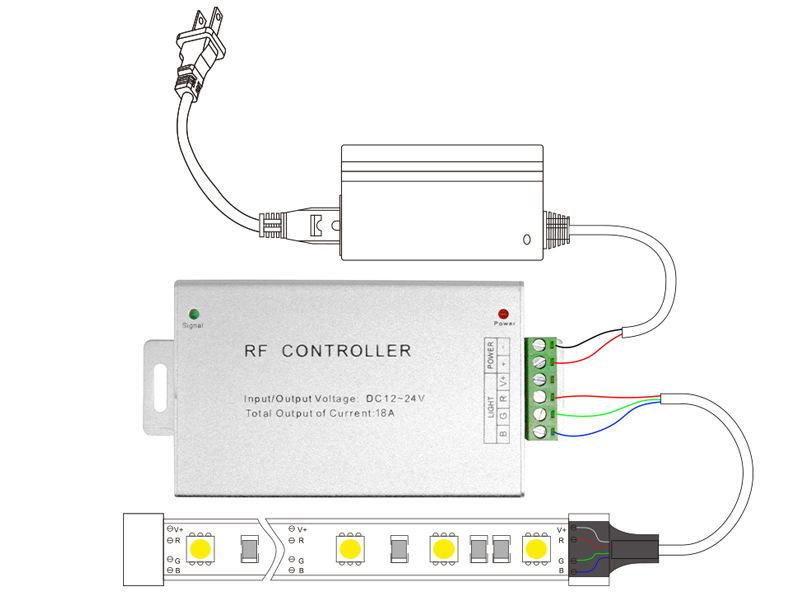

Connection description：

Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 4A/CH or 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.

Application:
