Technical Parameters：

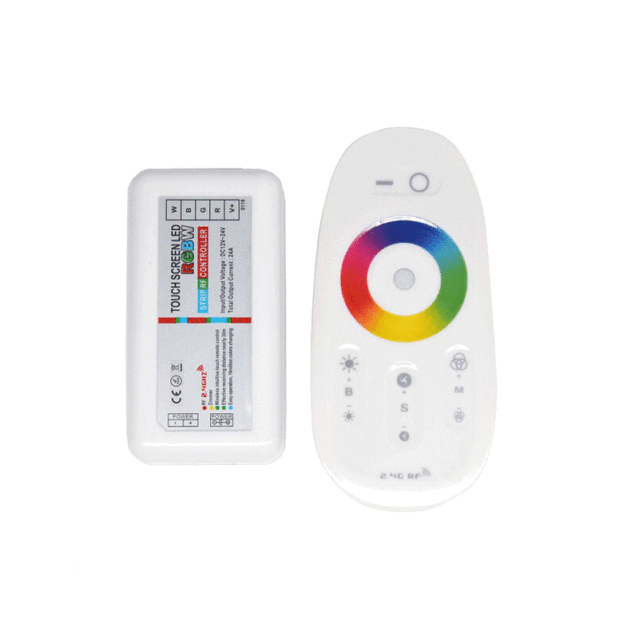

- Product name: RF 2.4G RGBW LED touch remote controller
- Model No.：RF-2.4G-04
- Working temperature：-20-60℃
- 0utput: 4 circuit
- Input voltage：DC12-24V
- Connection mode：Common anode
- Controller size： L85×W45×H22mm
- Net weight：85g
- Gross weight：125g
- Static power consumption：<1W
- Output current：<6A/CH
- Output power: Max:12V:<288W, 24V:<576W
Controller Dimention：
Function information:
- Use the 2.4G radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
- About 20-30m empty remote control distance.
- Remote control has touch function.
Control methods:
-
- Connect the load line firstly, then connect the power line; make sure all lines no short circuit before power on.
- When it’s ON state, touch ring can become quick and smooth changes on colors,
“mode+” and “mode-“ have 20 different mode choices, modes details as below:
No. Mode
1 Static white color
2 White color gradual changes
3 All colors gradual change
4 Red/green/blue 3 colors gradual change
5 7 colors jump to change
6 3 colors jump to change
7 Red/green jumps to change
9 Blue/green jumps to change
10 White color frequently blinks
11 White color glitters
12 Red color frequently blinks
13 Red color glitters
14 Green color frequently blinks
15 Green color glitters
16 Blue color frequently blinks
17 Blue color glitters
18 Yellow color frequently blinks
19 Yellow color glitters
20 Circulation mode
Connection description：
Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
