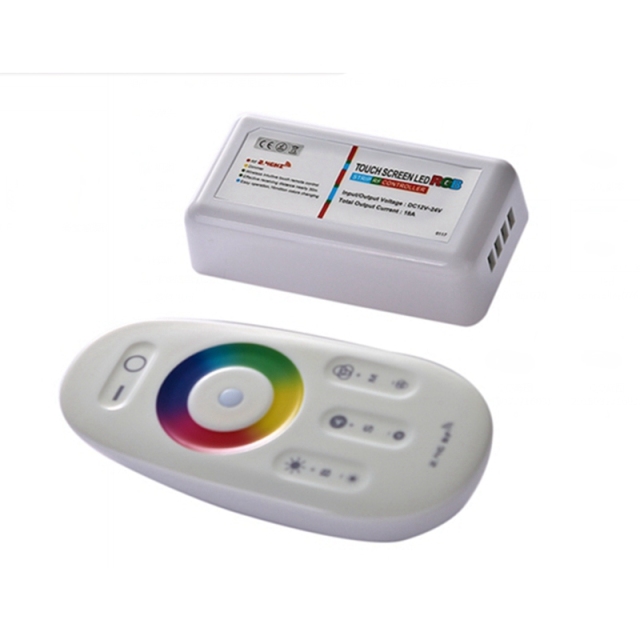

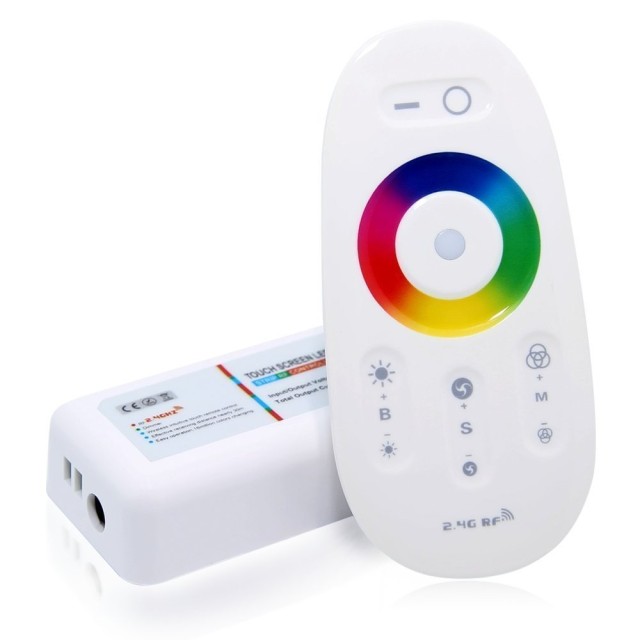

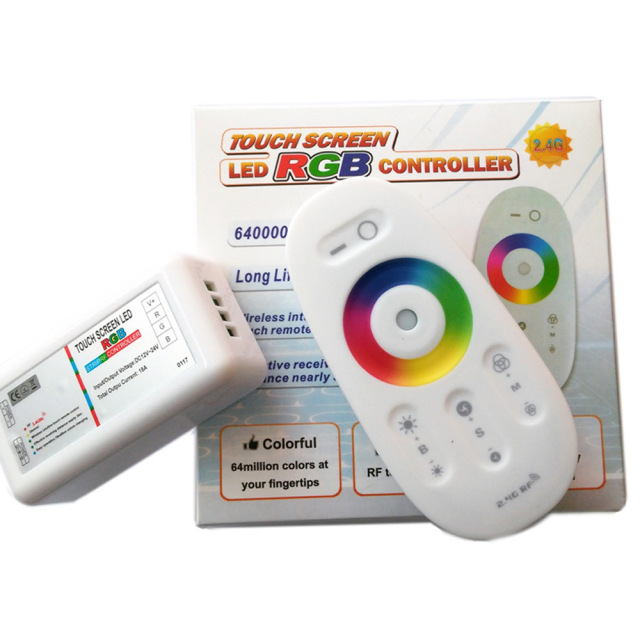

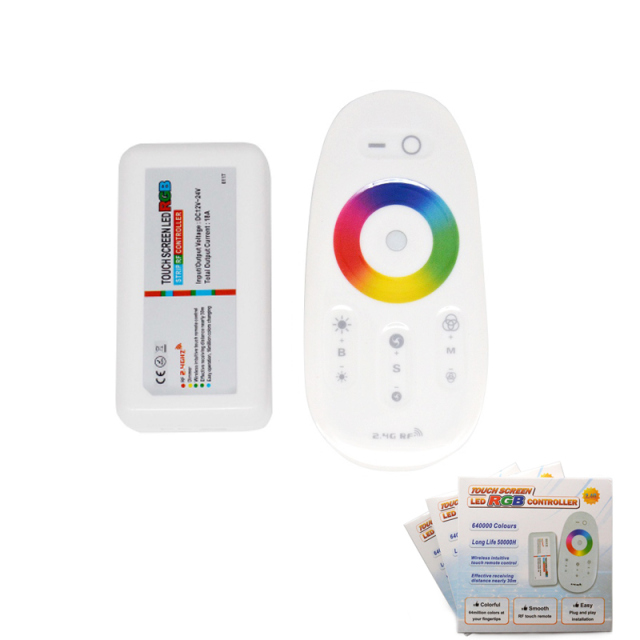

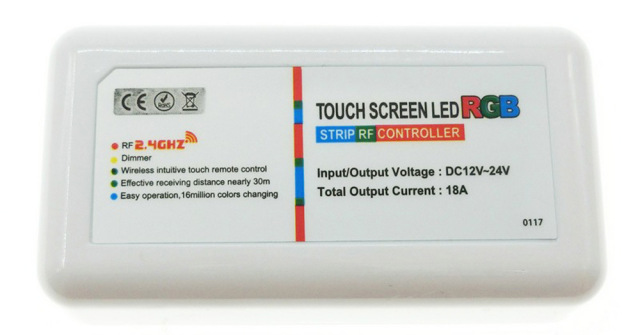

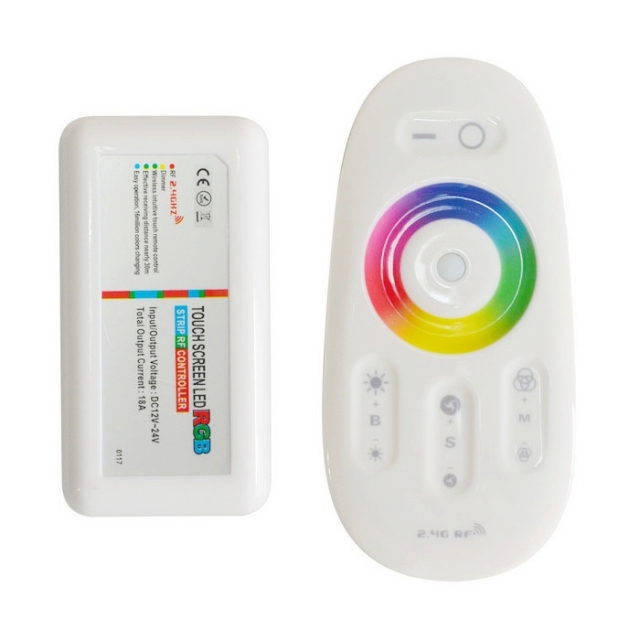

RF 2.4G RGB LED Touch remote controller

No.RF-2.4G-03

RF 2.4G RGB LED touch remote controller, which is adopting the most advanced PWM control technology, controlling all RGB LED products with Four lines and three circuits( common anode),owning 640 thousand colors and 20 automatic changing modes to choose.
Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, LED module, LED lamp house and so on. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc.

Description

Technical Parameters：

Product name: RF 2.4G RGB LED touch remote controller
Model No.：RF-2.4G-03
Working temperature：-20-60℃
0utput: 3 circuit
Input voltage：DC12-24V
Connection mode：Common anode
Controller size： L85×W45×H22mm
Net weight：85g
Gross weight：125g
Static power consumption：<1W
Output current：<6A/CH
Output power: Max:12V:<216W, 24V:<432W

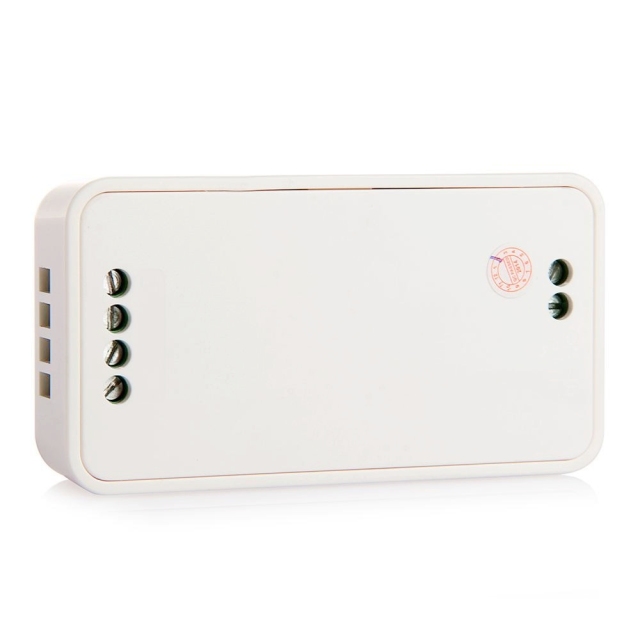

Controller Dimention：

Function information:

Use the 2.4G radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
About 20-30m empty remote control distance.

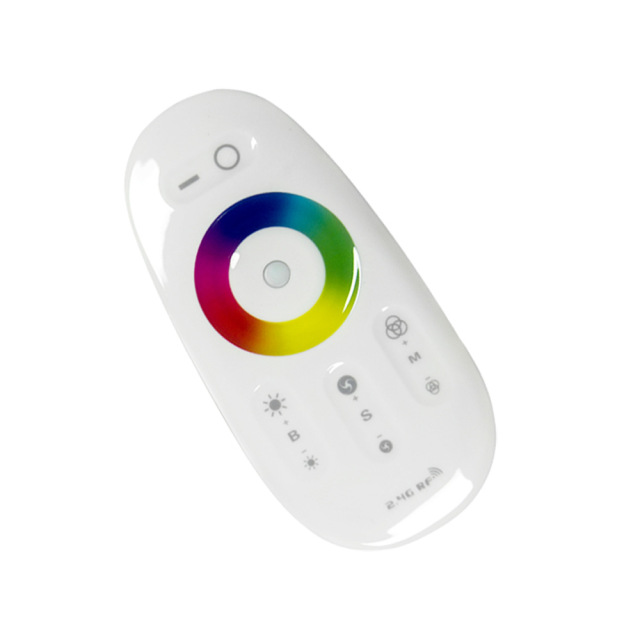

Remote control has touch function.

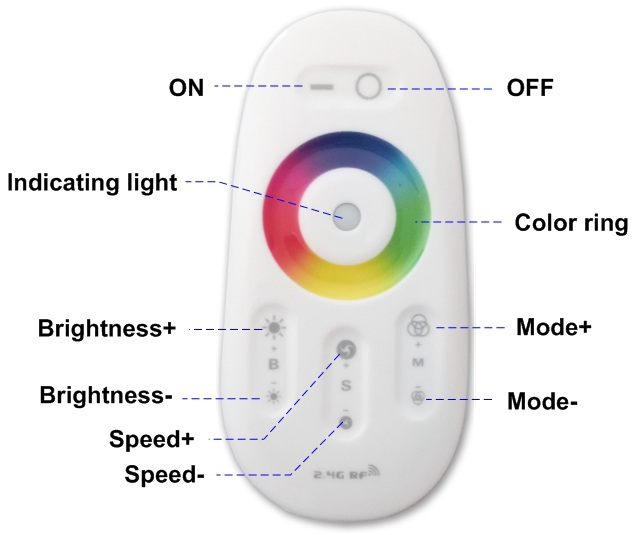

Control methods:

- Connect the load line firstly, then connect the power line; make sure all lines no short circuit before power on.
- When it’s ON state, touch ring can become quick and smooth changes on colors,

“mode+” and “mode-“ have 20 different mode choices, modes details as below:

No.	Mode	Brightness state	Speed state
1	Static white color	Adjustable	Unadjustable
2	White color gradual changes	Adjustable	Adjustable
3	All colors gradual change	Adjustable	Adjustable
4	Red/green/blue 3 colors gradual change	Adjustable	Adjustable
5	7 colors jump to change	Adjustable	Adjustable
6	3 colors jump to change	Adjustable	Adjustable
7	Red/green jumps to change	Adjustable	Adjustable
8	Red/blue jumps to change	Adjustable	Adjustable
9	Blue/green jumps to change	Adjustable	Adjustable
10	White color frequently blinks	Adjustable	Adjustable
11	White color glitters	Adjustable	Adjustable
12	Red color frequently blinks	Adjustable	Adjustable
13	Red color glitters	Adjustable	Adjustable
14	Green color frequently blinks	Adjustable	Adjustable
15	Green color glitters	Adjustable	Adjustable
16	Blue color frequently blinks	Adjustable	Adjustable
17	Blue color glitters	Adjustable	Adjustable
18	Yellow color frequently blinks	Adjustable	Adjustable
19	Yellow color glitters	Adjustable	Adjustable
20	Circulation mode

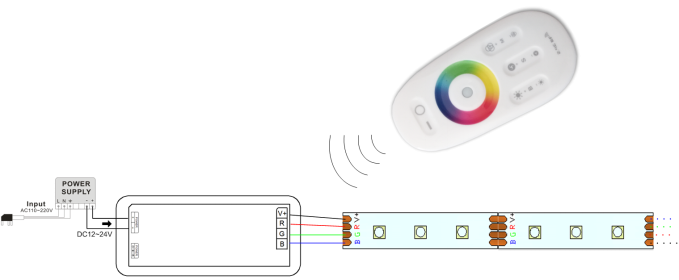

Connection description：

Attention:

1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 18A.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.

Application:
