RF 20 keys rgb led controller - Aluminium shell DC12~24V

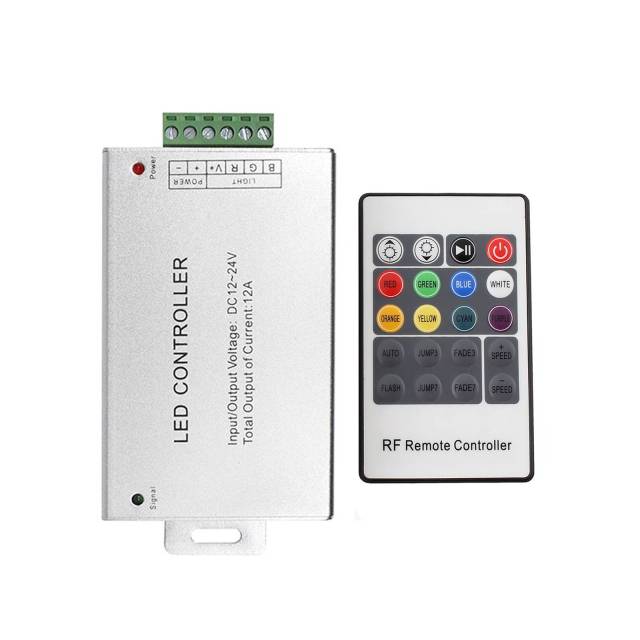

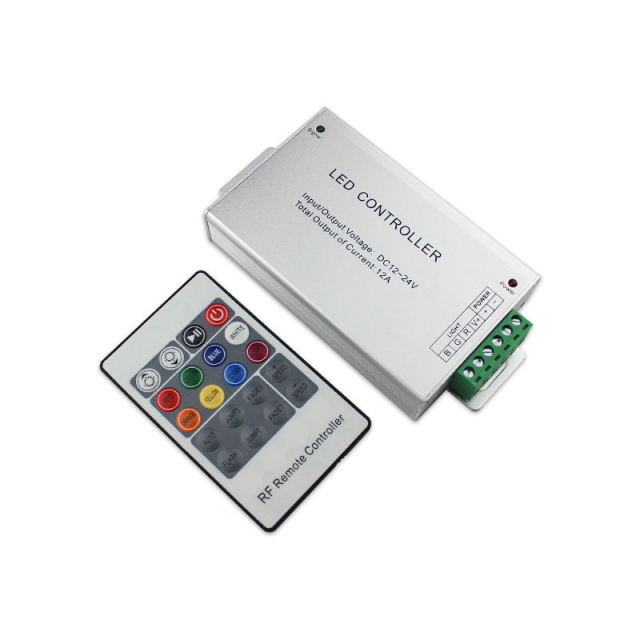

Aluminum RF 20 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.

Output Current:

4A/CH

8A/CH

Description

Technical Parameters：

● Working temperature：-20-60℃
● Input voltage：DC12~24V
● Output：3 circuit
● Connection mode：Common anode
● Controller size：L130×W65×H25mm
● package size：L135×W80×H54mm
● Net weight：150g
● Gross weight：165g
● Static power consumption：<1W
● Output current：<4A/ch or <8A/ch (optional)
● Output power： 12V/4A < 144W；12V/8A< 288W
24V/4A< 288W；24V/8A< 576W
● Carton size: 42*29*30CM 50pcs 8.3 KG/carton
● Remote: RF433Mhz radio frequency wireless

Controller Dimention：

External dimension:

Direction for use
Connection description:

Power input interface (port1):

Adopt conventional power transposon as a DC power input interface.
Power input interface (port2):

Adopt male and female connector with screw.

Load output interface:

Adopt male and female connector with screw.

Direction for use:

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

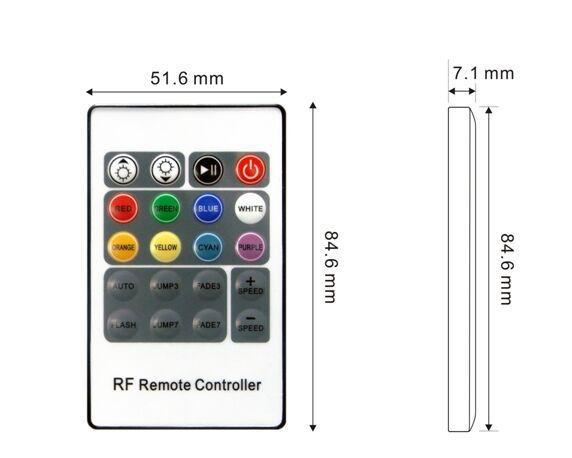

Adopt wireless control method, 20 keys in total, function of each button as below:
Press each time, the green light flash one time, indicating that has entered the next state.
Standard color changes as follows:

This RF 20 keys controller have match code version and not match code version for optional.
For the match code version, if you want to match code again, just simply need to
press" RED" button within 6 seconds when power the controller.(remarks:this function just for the match code version only)

Connection description：

Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 4A/CH or 8A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
