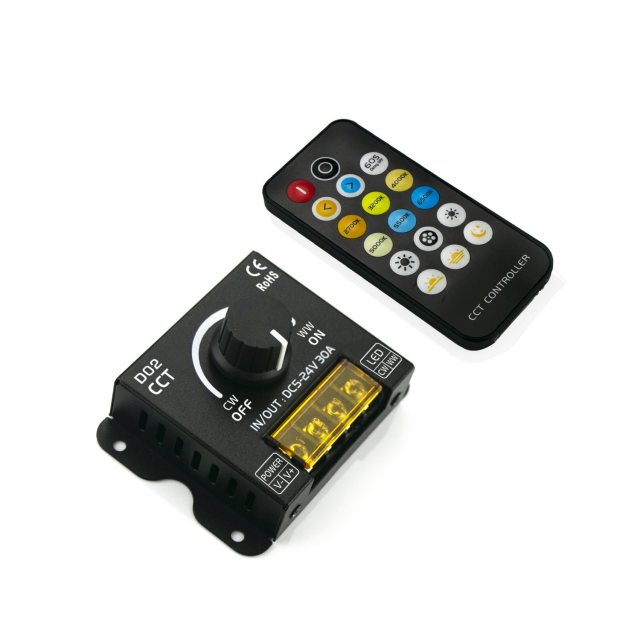

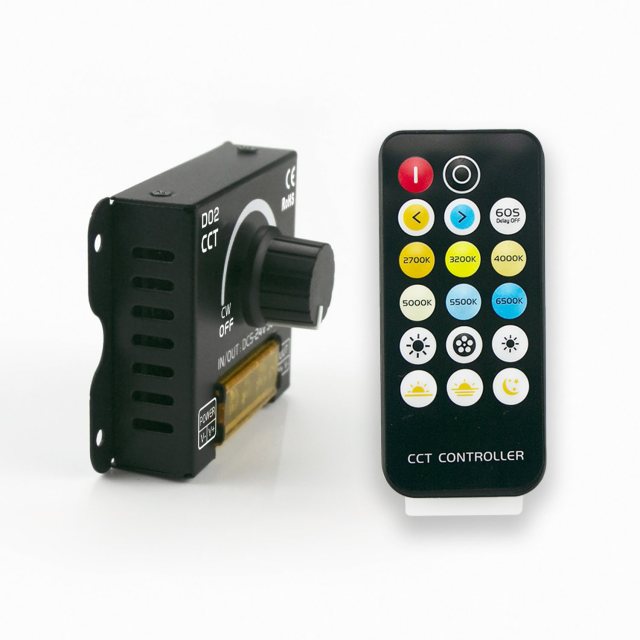

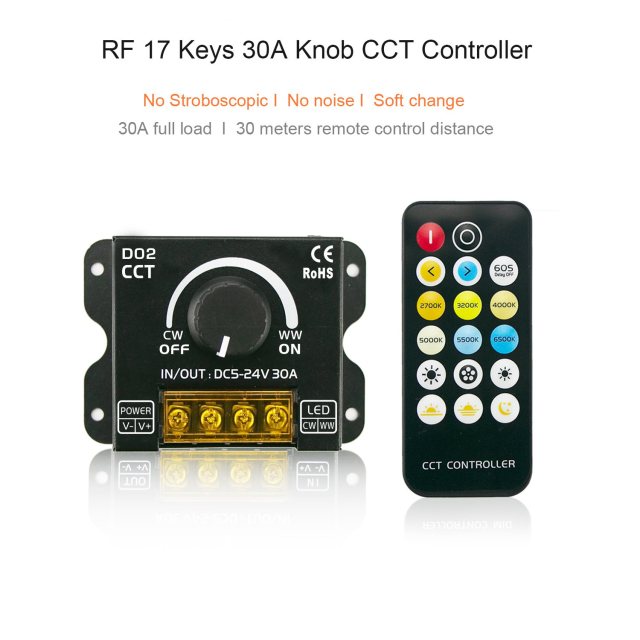

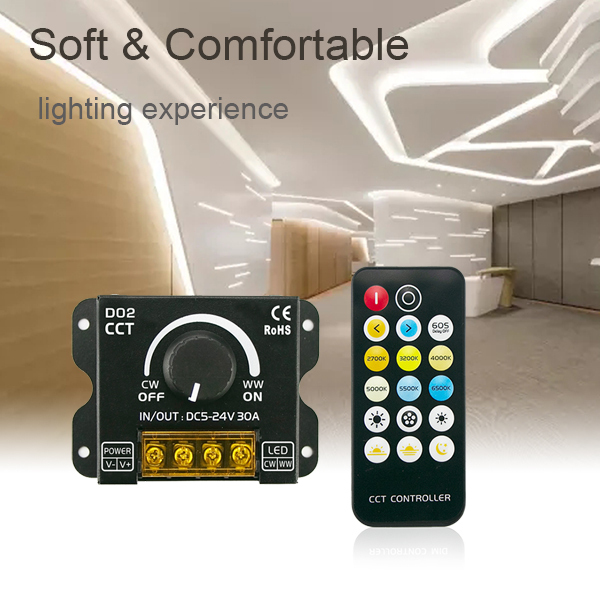

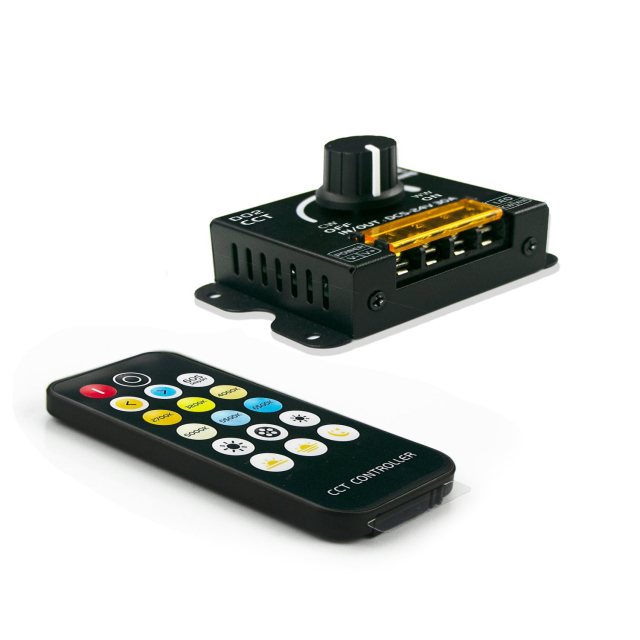

RF 17Keys 30A Knob CCT Controller

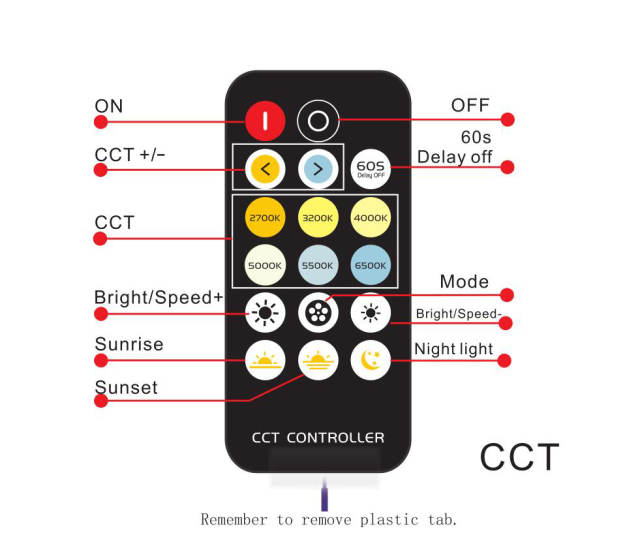

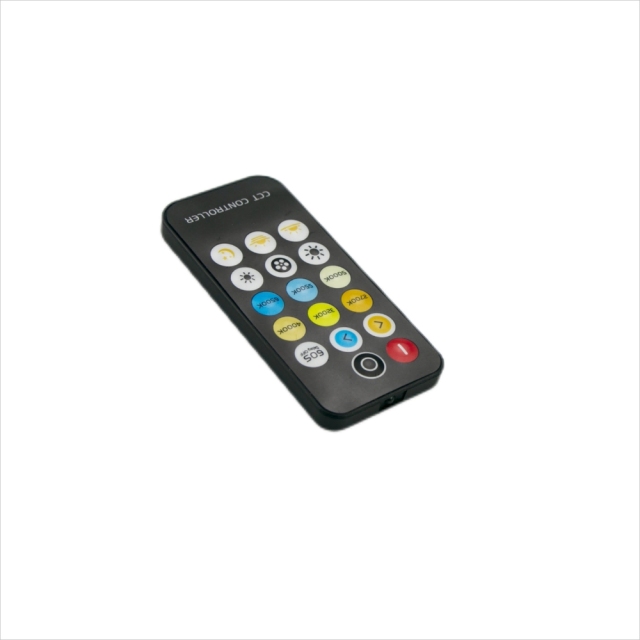

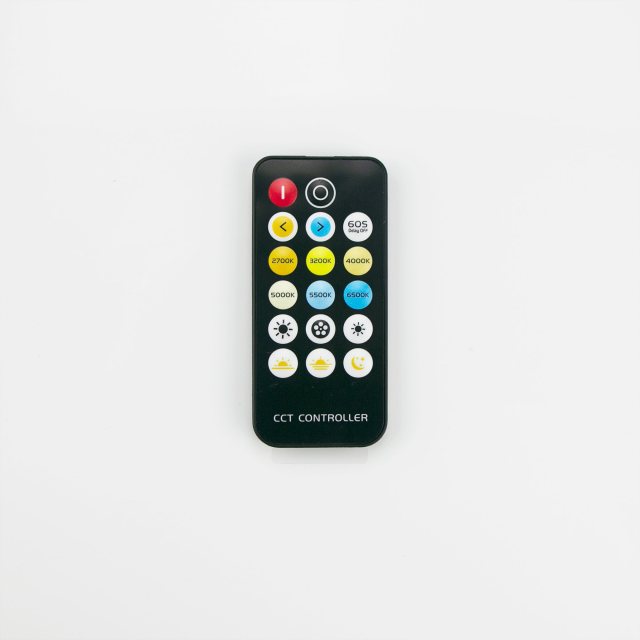

RF 17Keys 30A Knob CCT Controller is a dedicated intelligent LED lighting controller which is adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, It has the advantages of high power load, soft dimming, no flicker and stable performance etc. Users not only can through the knob of controller achieve color temperature adjustment but also can use RF17 keys remote to turn on/turn off light, choose 2700-6500K different color temperature directly, set different lighting modes, 60s delay off turn off light etc. Is used to control a variety of led lamps as the light source, for instance, point source of light, flexible light strip and so on.

  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
  • RF 17Keys 30A Knob CCT Controller
Description


Technical Parameters:


  • Product name: RF 17Keys 30A Knob CCT Controller
  • Model No.:D02
  • Working temperature:-20-60℃
  • 0utput: 2 channel
  • Input voltage:DC5-24V
  • Connection mode:Common anode
  • controller size: L86*W62*H36 mm
  • Packing size:    L90*W66*H50 mm
  • Net weight:113g
  • Gross weight:132g
  • Static power consumption:<0.5W
  • Output current:<30A
  • Output power: Max:12V:<360W,  24V:<720W
  • Remote distance: >30m

Controller Dimention:


  • Connect the load wire at first,following by the power wire;
  • Please ensure short circuit can not occur between connecting wire before you turn on the power;
  • Adopt rotary button, its function as follows:

Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.

Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

Long press button to adjust color temperature from 2700K ~6500K circularly;

Short press button to turn on or turn off light.

Connection description


Application:


Attention:

1. This products Input voltage is DC5V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 30A.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
