Mini 4keys RGB LED Controller

No.K01, K02, K03, K04, K05

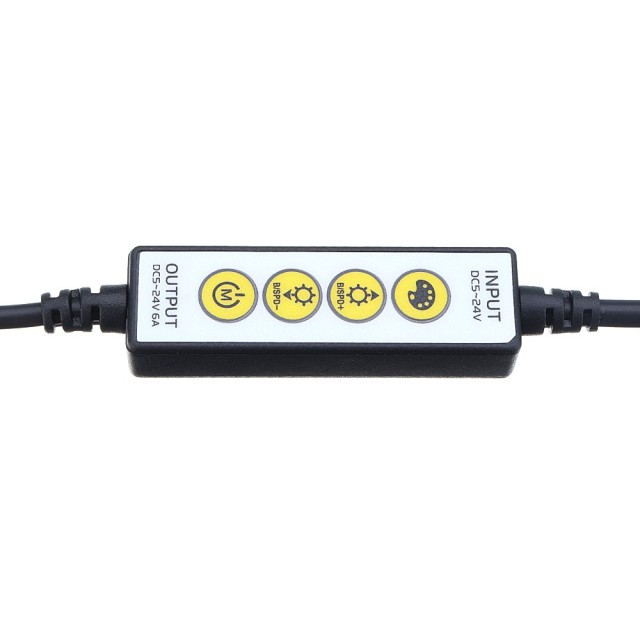

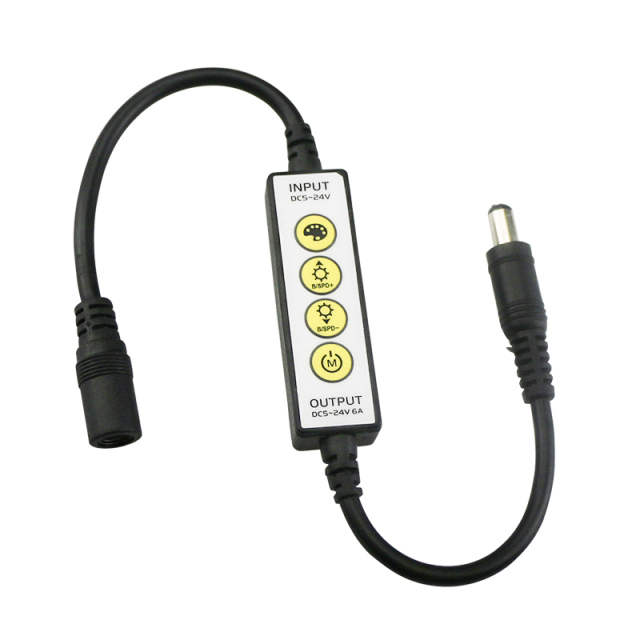

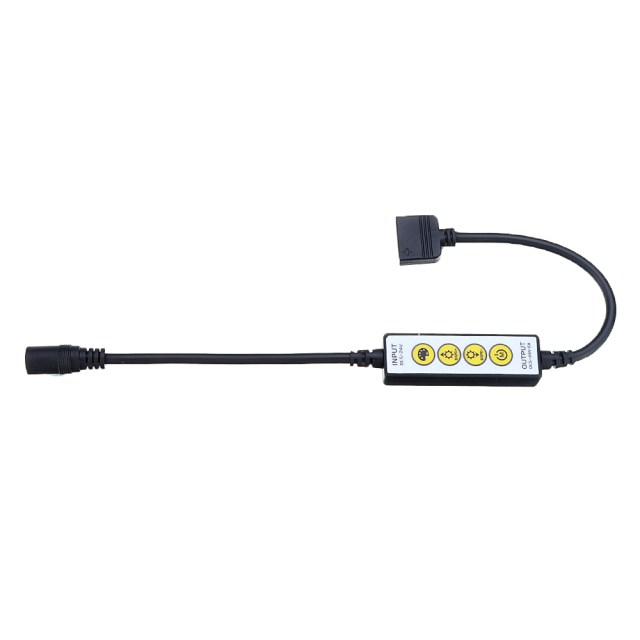

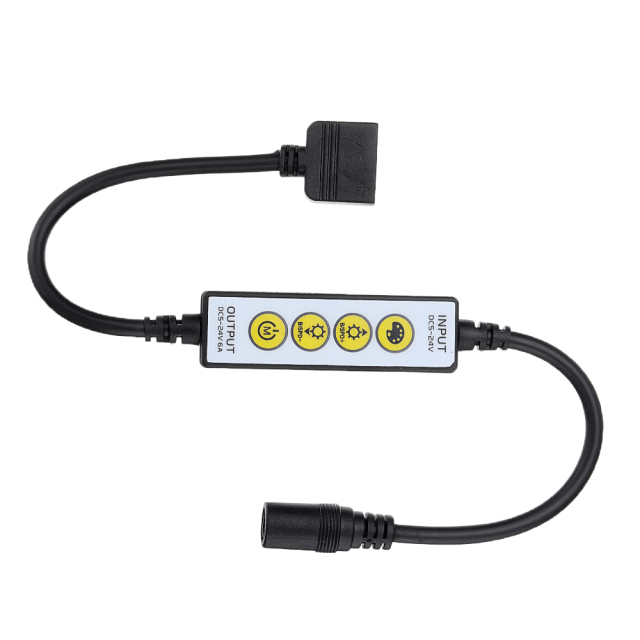

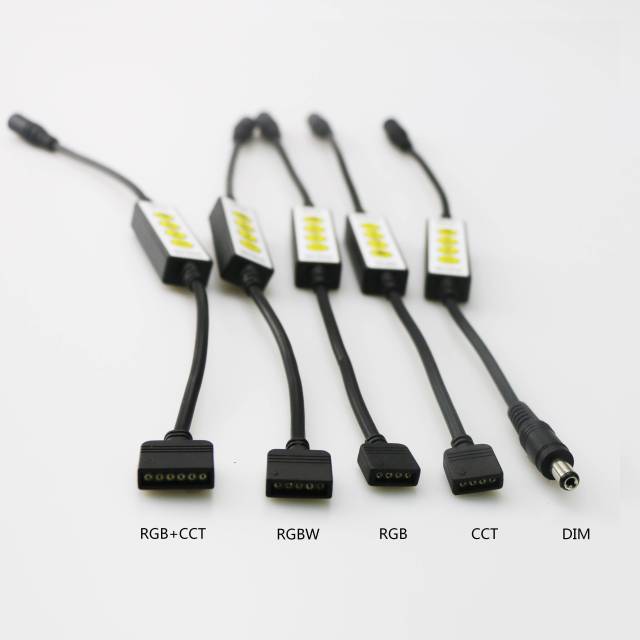

Mini 4 keys led controller has 5 types, which form a series. The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from. The main features of the controller are:
1. Compact body and convenient wiring;
2. Simple and clear operation, comfortable button feel;
3. Diversified dynamic mode;
4. Soft dimming effect.

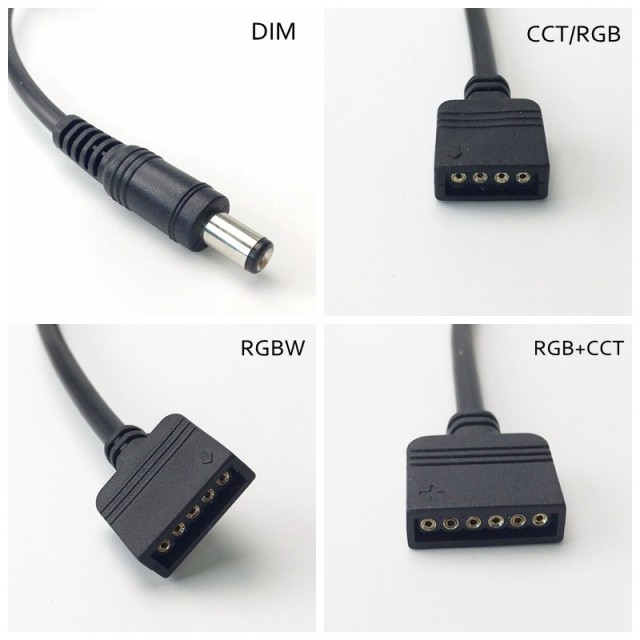

DIM:

1 Channel

CCT:

2 Channel

RGB:

3 Channel

RGBW:

4 Channel

Description

Technical Parameters：

Product name: Mini 4 Keys LED Controller
Model No.：K01~05
Working temperature：-20-60℃
Input voltage：DC5-24V
Connection mode：Common anode
controller size：L55.7×W16.6×H10.7mm
Net weight：18g
Gross weight：25g
Static power consumption：<0.5W
Output current：<2A/CH (each circuit)max:6A
Output power: Max: 5V:<30W,12V:<72W, 24V:<144W

Controller Dimention：

Connection description：

Application:

Attention:

Controller’s input voltage is DC5-24V, other input voltage are not allowed, Please do not overload, the total max output current is 6A;
Please connecting the power input and LEDs in power off, and power on in correct connection.
Please don’t reverse the power input connection of both cathode and anode, please switch on again only when it is in right connection and no short circuit.
Please power off the device if you don’t use it for a quit long time, don’t place in high dust, high temperature environment.
