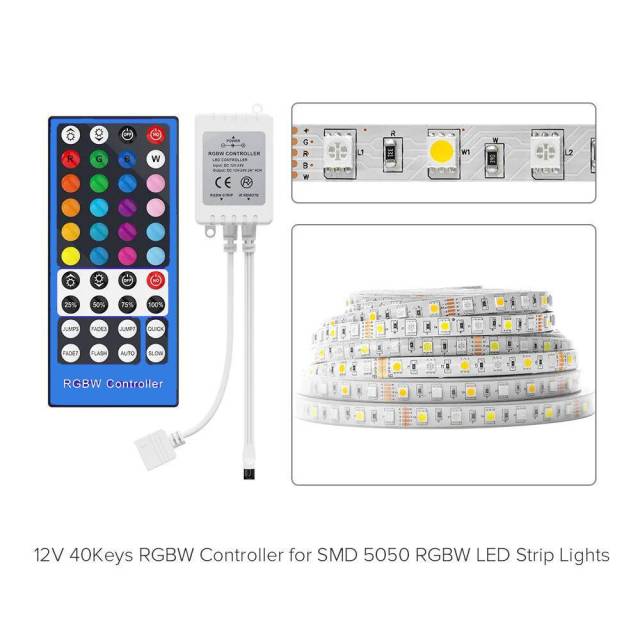

Technical Parameters：
● Working temperature：-20-60℃
● Input voltage： DC5V,12V,24V optional (specify the required voltage on orders)
● Output：3 circuit
● Connection mode：Common anode
● Static power consumption：<1W
● Output current：Maximum load current <6A
● Output power： 5V<40W，12V<96W, 24V<192W
● Controller size：L61*W35*H22 mm
● Package size： L136*W48*H59 mm
● Net weight：80g
● Gross weight：90g
● Carton size: L55*W44*H32cm 100pcs 13.7KG
● Remote:

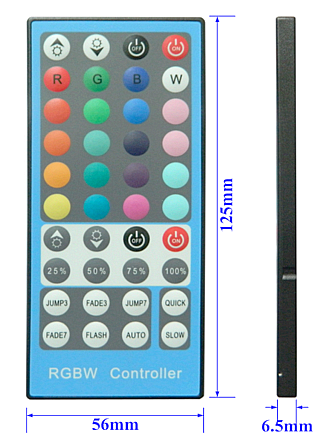

Size: L125*W56*H6.5mm
Control method: IR
Control range: 8-10M
Supply voltage：3V
Controller Dimention：
External dimension:
Direction for use

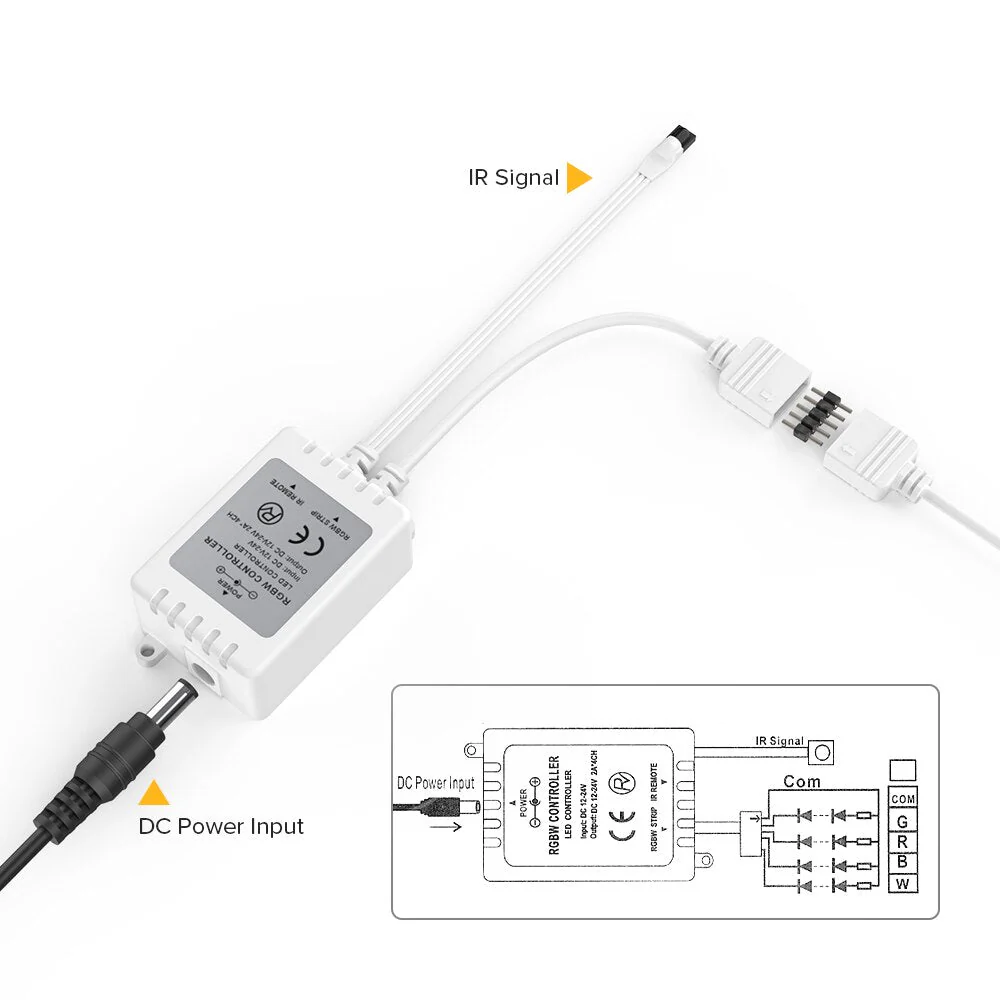

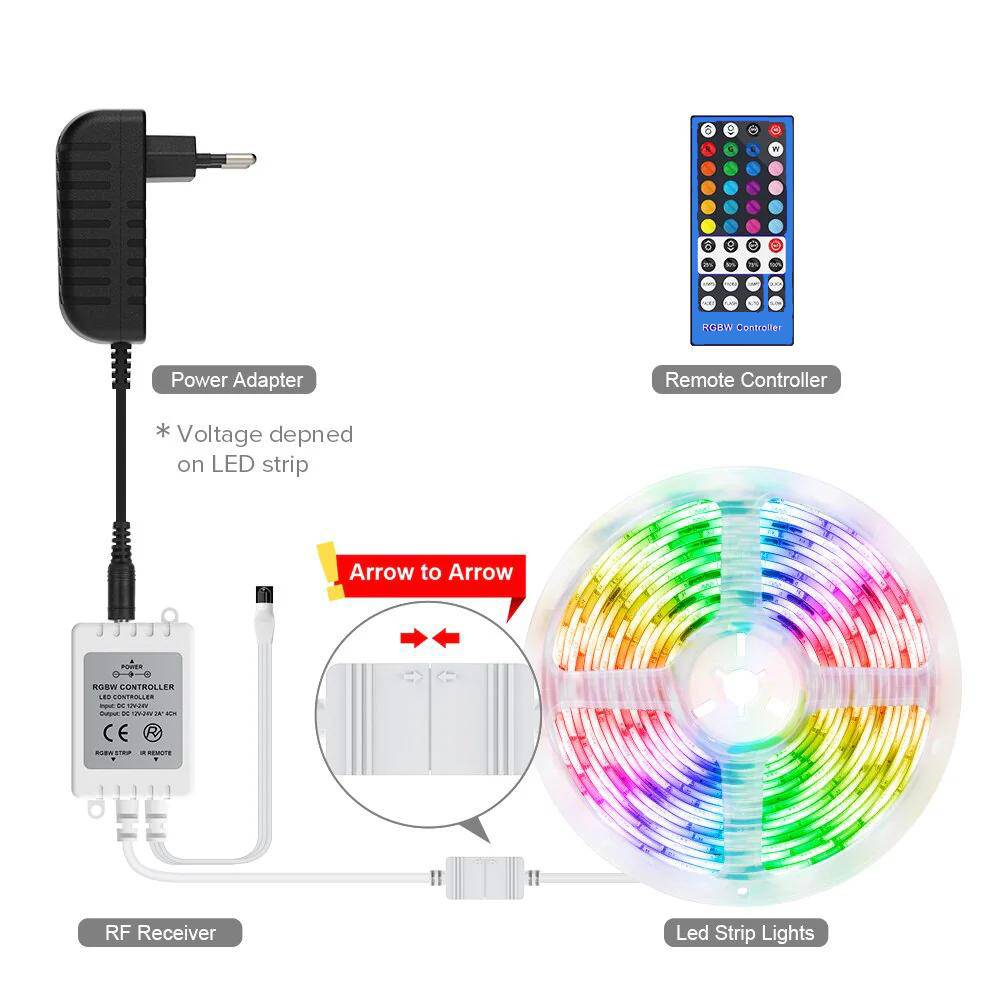

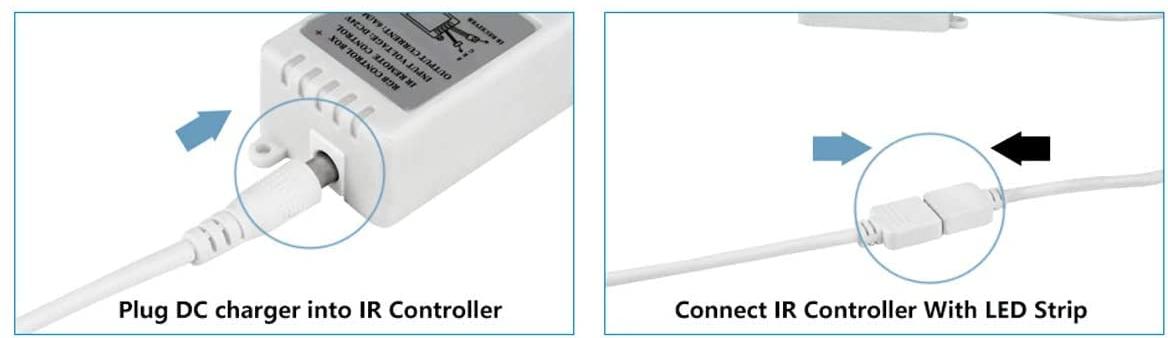

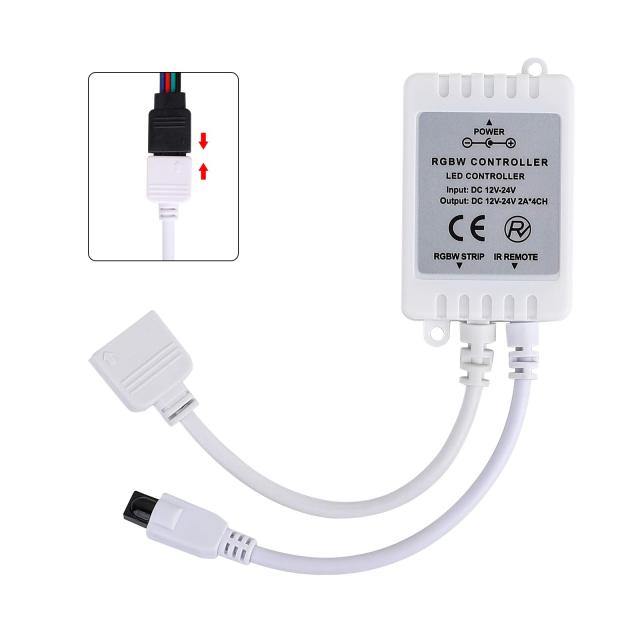

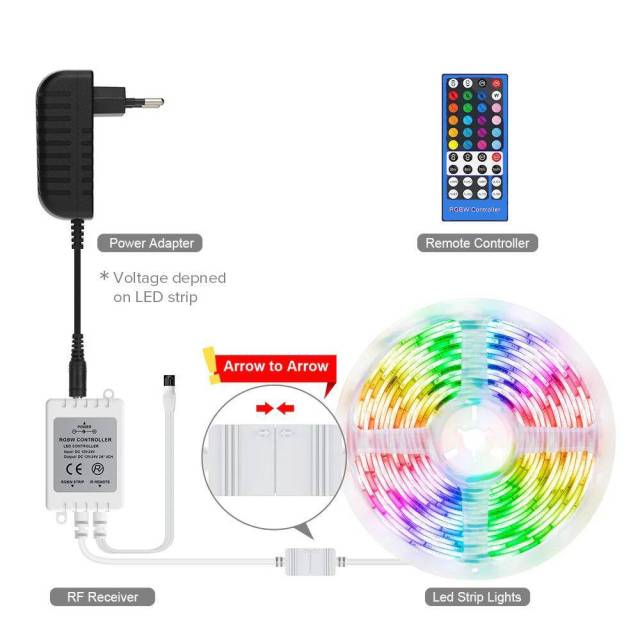

Connection description:

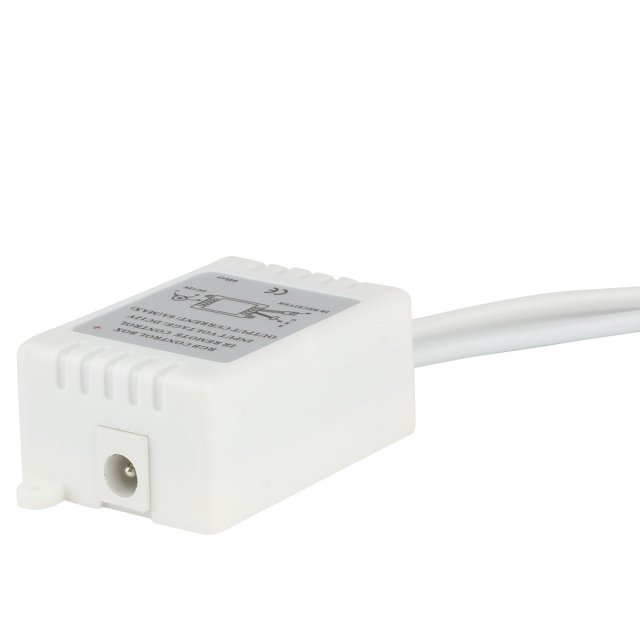

Power input interface (port1): Adopt the 5.5x2.1mm DC connector seat
Load output interface: Adopt oblate 5 pins interface.the channel near the arrow is the common V+, the second channel is the White light channel, and the three to five channel are R,G,B channels in sequence .
(the output color sequency can be customized：such as +GRBW/+RGBW/+BRGW)
Direction for use:● Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables;

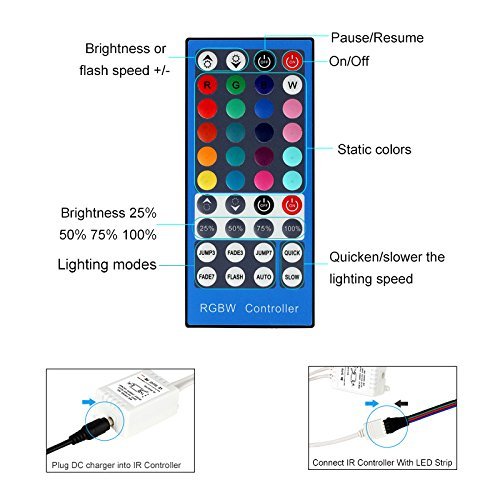

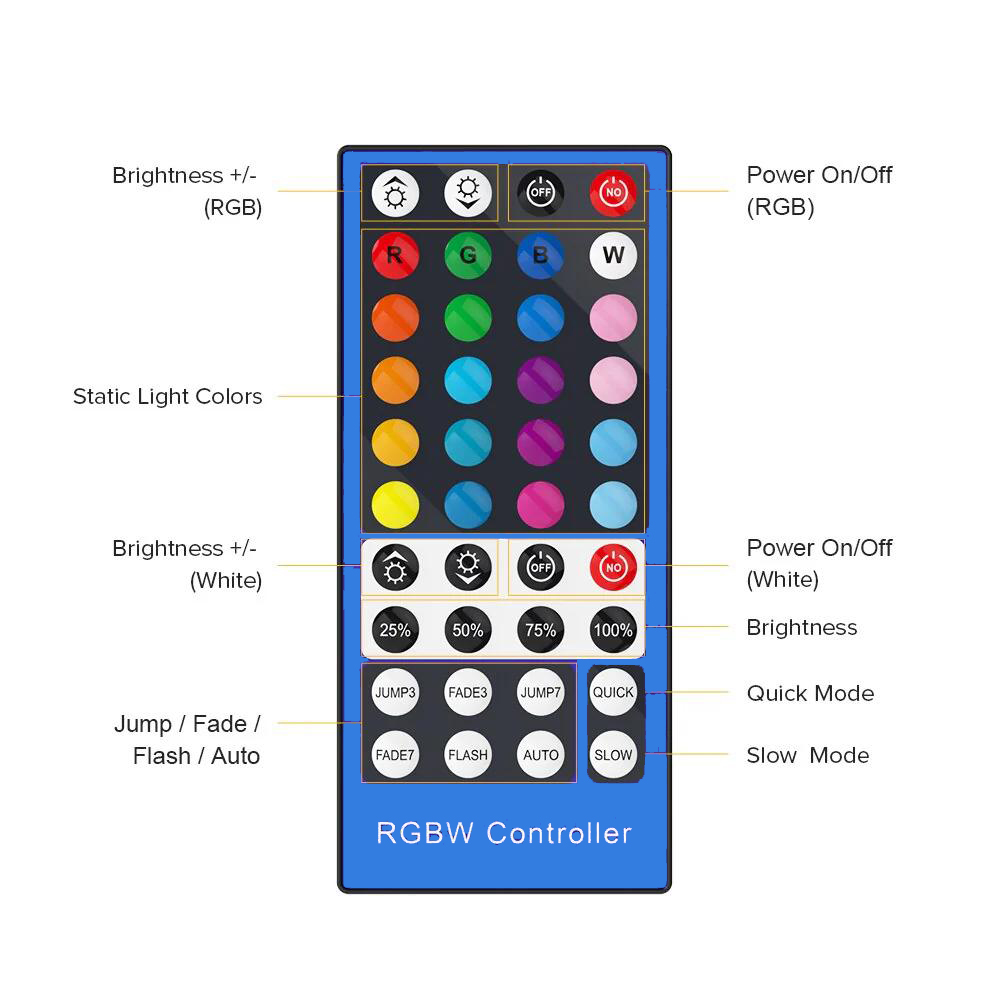

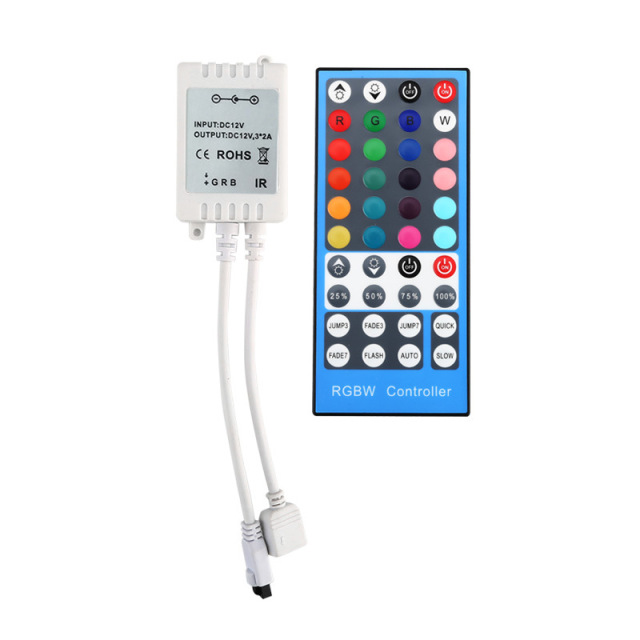

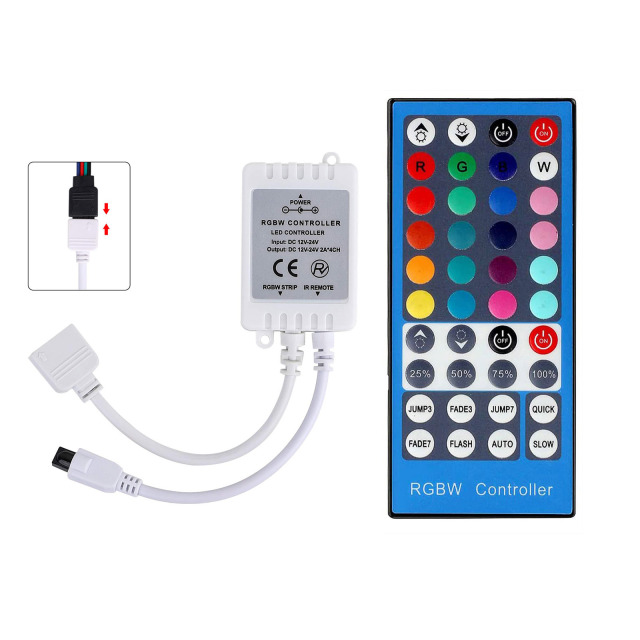

● Used the 40 key infrared remote control, the key function are as follows:
Connection description：
Attention:
- Supply voltage of this product is DC5V or DC12V-24V, never connect to others or AC220V.
- Before using the infrared remote,the insulating film should removed.
- Lead wire should be connected correctly according to gradethat connecting diagram offers.
- This product is not to overload;
- Warranty of this product is twoyear, but exclude the artificial situation of damaged or overload working.
