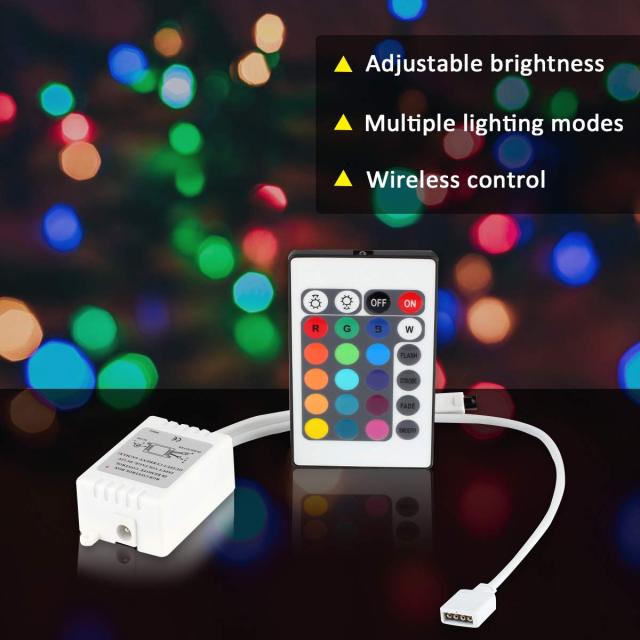

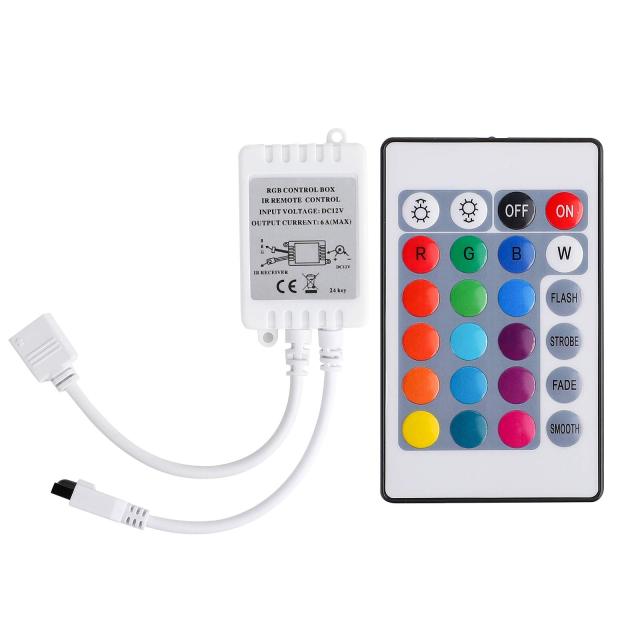

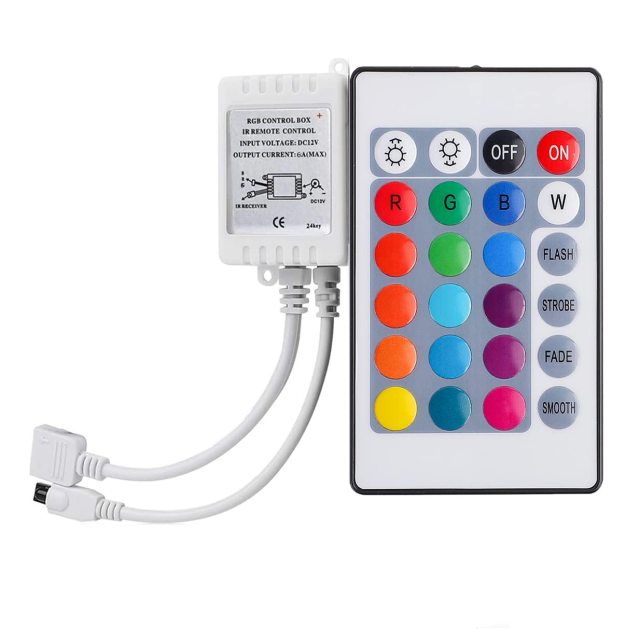

Technical Parameters：
● Working temperature：-20-60℃
● Input voltage： DC5V,12V,24V optional (specify the required voltage on orders)
● Output：3 circuit
● Connection mode：Common anode
● Static power consumption：<1W
● Output current：Maximum load current <6A
● Output power： 5V<30W, 12V<72W, 24V<144W
● Controller size：L61*W35*H22 mm
● Package size： L90ΧW60ΧH40mm
● Net weight：50g
● Gross weight：65g
● Carton size: L55*W44*H33cm 100pcs 9.6KG

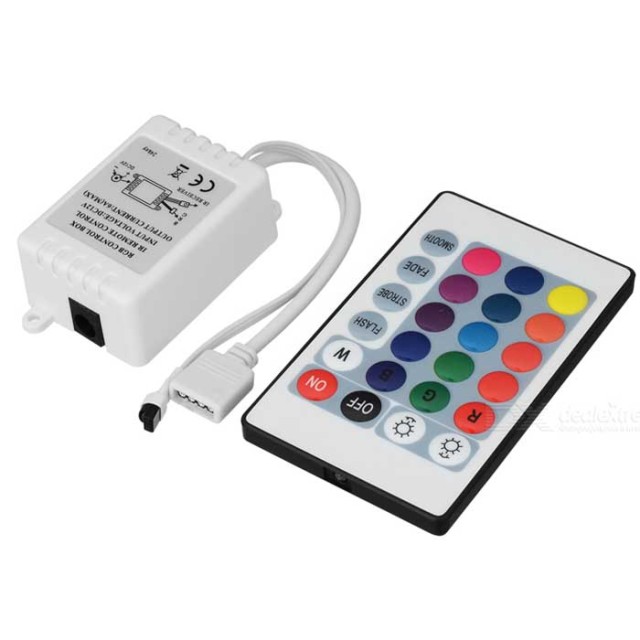

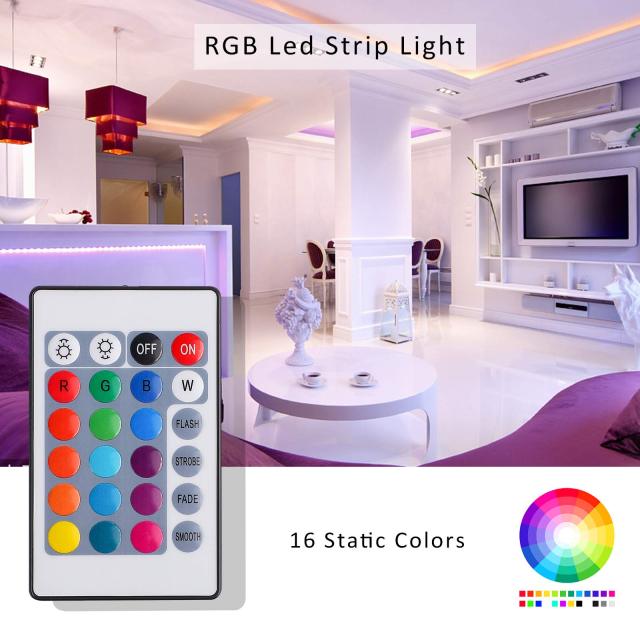

● Remote:

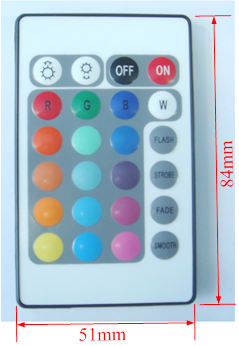

Size: L35*W50*H21mm
Control method: IR
Control range: 8-10M
Supply voltage：3V

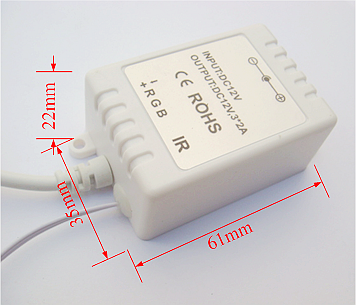

Controller Dimention：
External dimension:
Direction for use

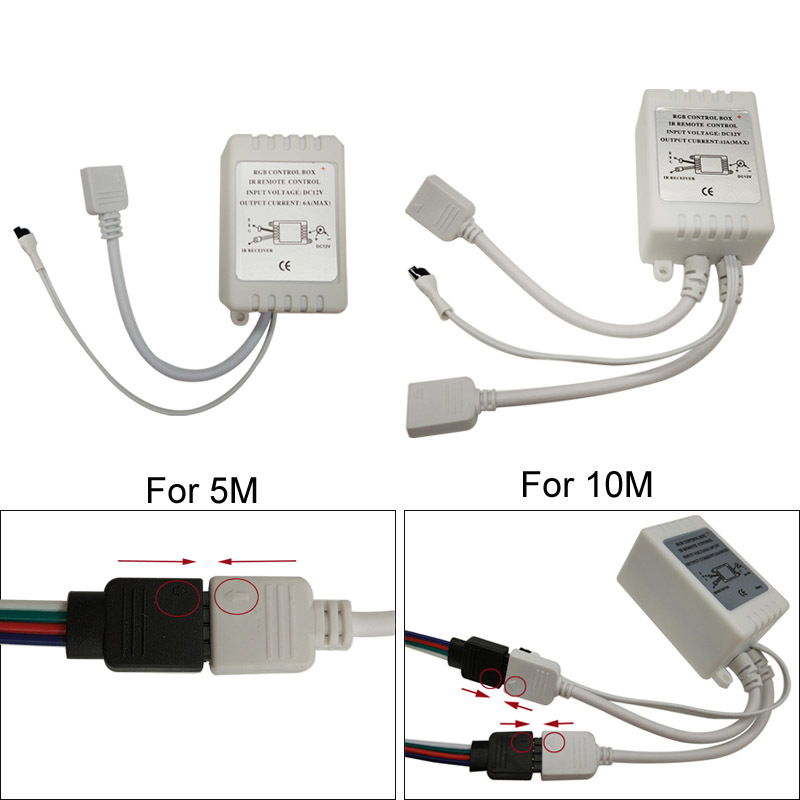

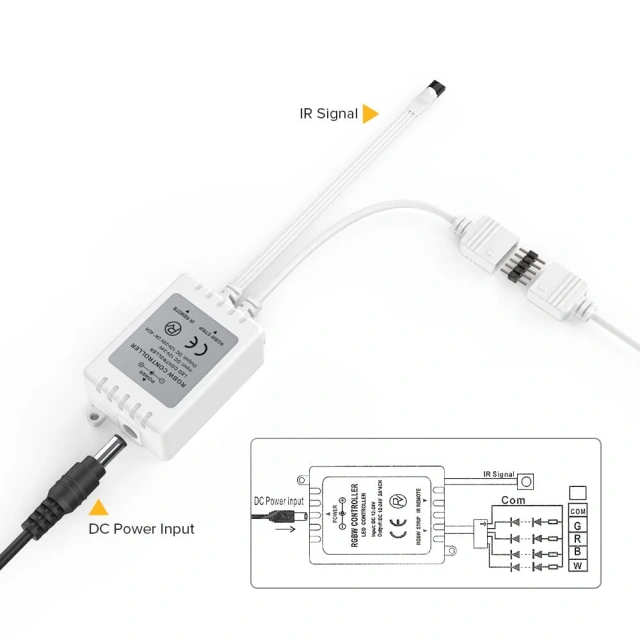

Connection description:

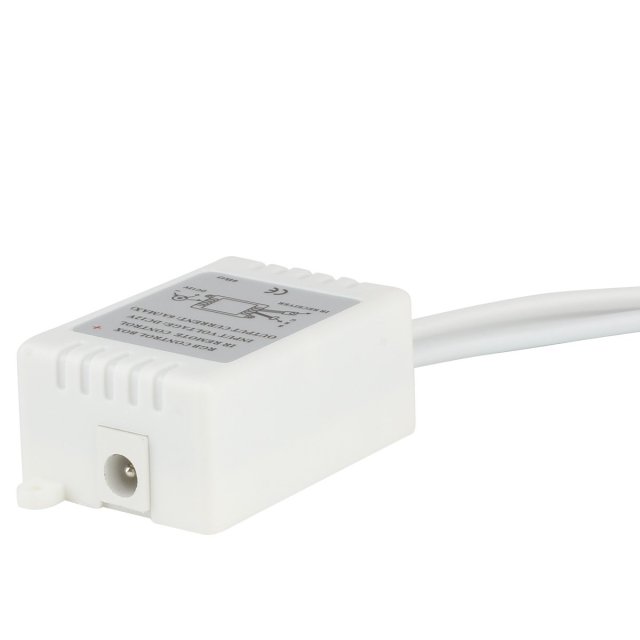

Power input interface (port1): Adopt the 5.5x2.1mm DC connector seat
Load output interface: Adopt the 4 pins connector, the channel near the arrow is the common + ,the second channel is for the green channel, the third channel is the red channel. the forth channel is the blue channel.
(the output color sequency can be customized：such as +GRB/+RGB/+BRG)
Direction for use:
- Connect the load wire at first,following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

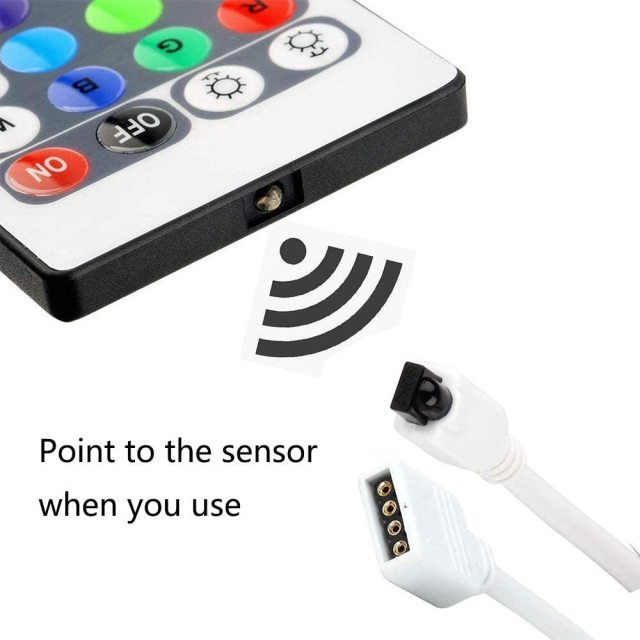

- Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controllerand rece

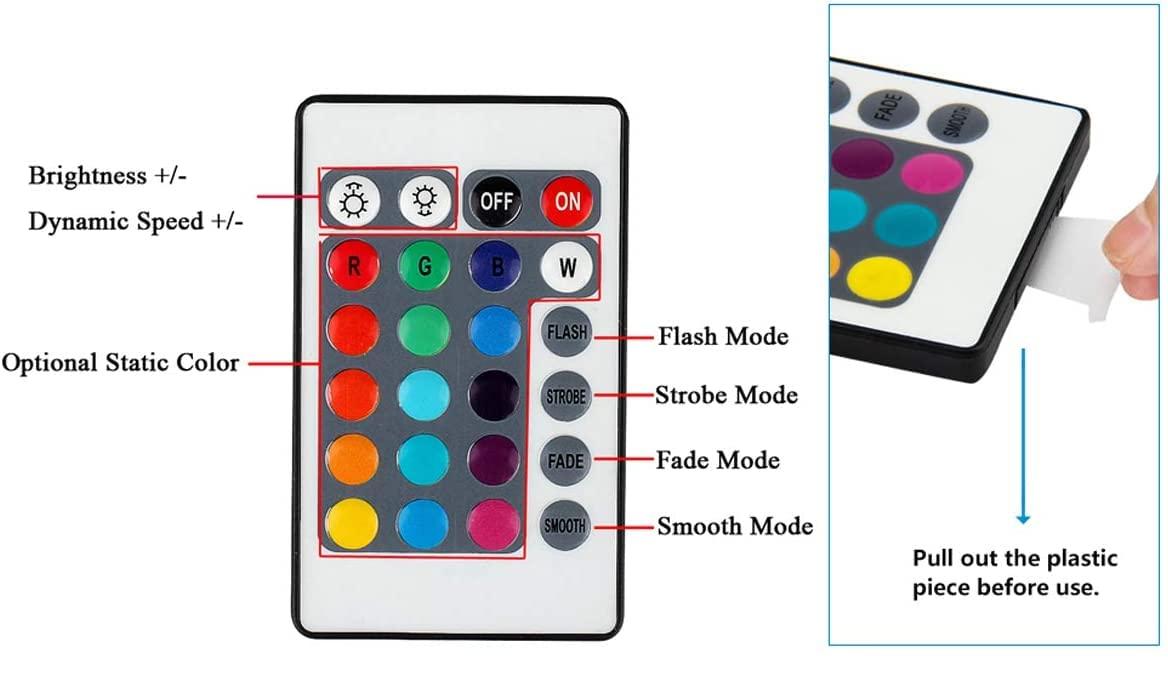

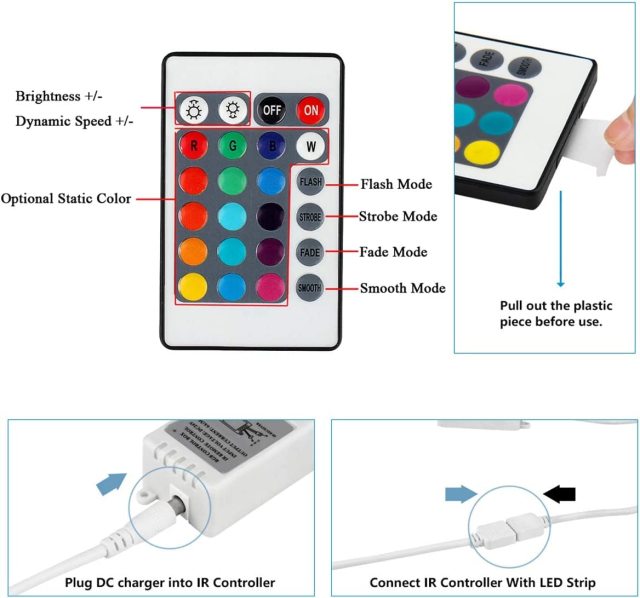

The key-press functions are shown in the table as below (in accordance with the key position order):
Direction: When switching to four dynamic mode (7 color jumpy change, Strobe flash , 7 color fade change, 3 base color jumpy), the button of “Brightness +”/ “Brightness -” means the speed of light change is up/ down, there are 32 step in all.

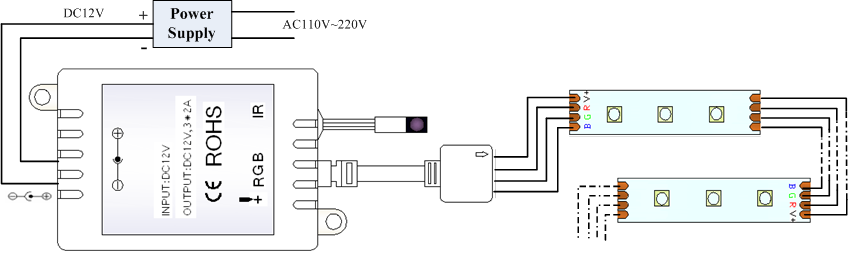

Connection description：
Attention:
- Supply voltage of this product is DC5V or DC12V-24V, never connect to others or AC220V.

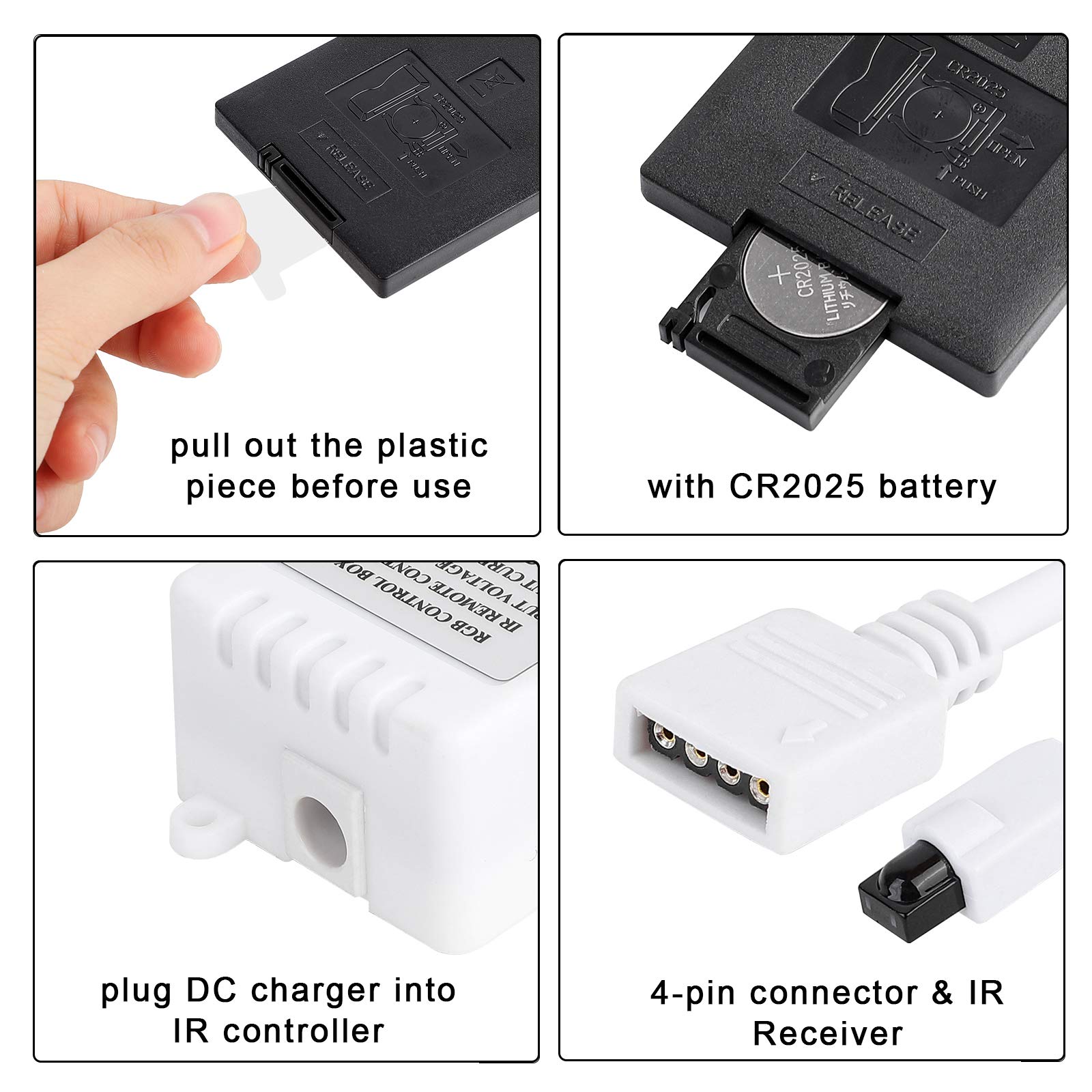

- Before using the infrared remote,the insulating film should removed.
- Lead wire should be connected correctly according to gradethat connecting diagram offers.
- This product is not to overload;
- Warranty of this product is twoyear, but exclude the artificial situation of damaged or overload working.

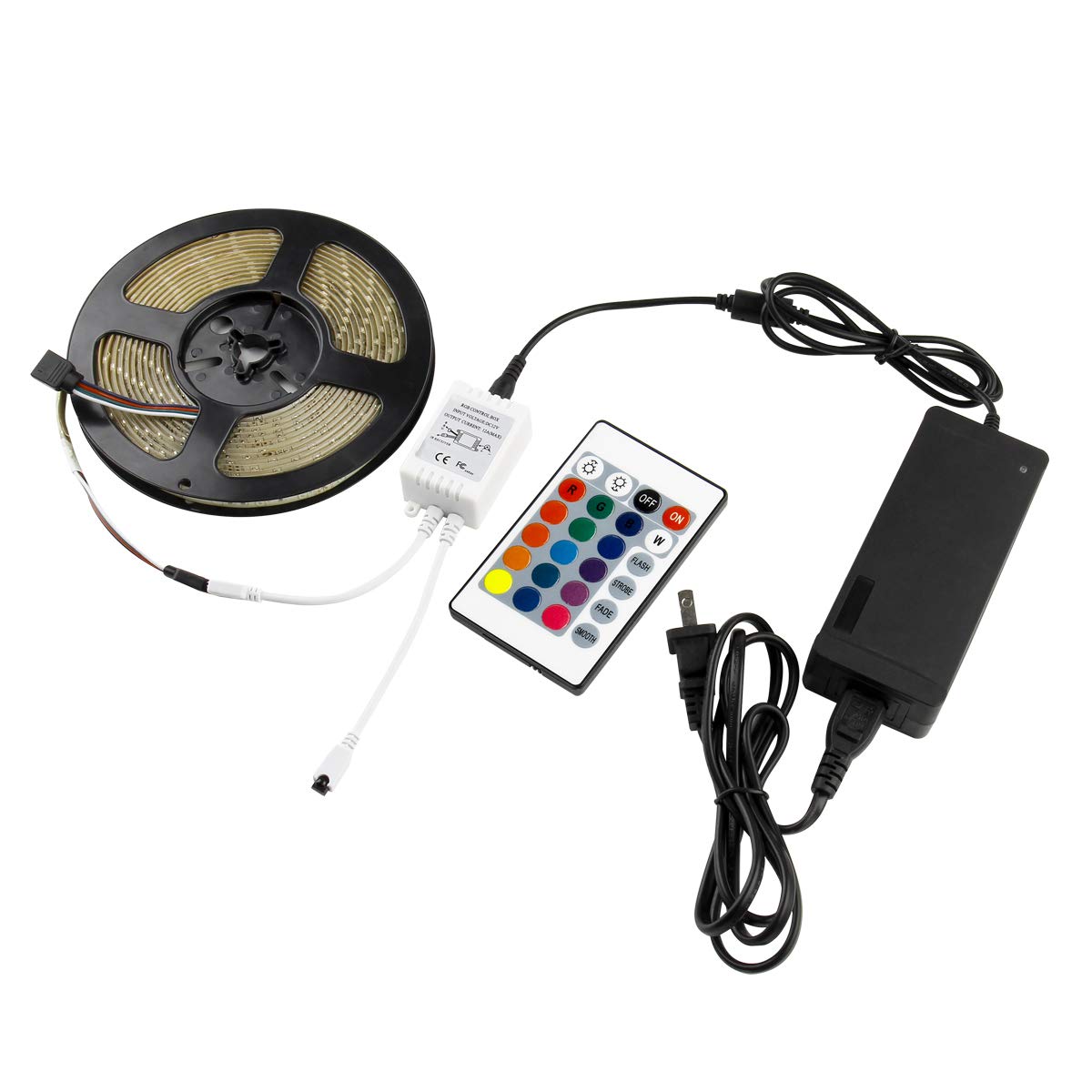

Application:
