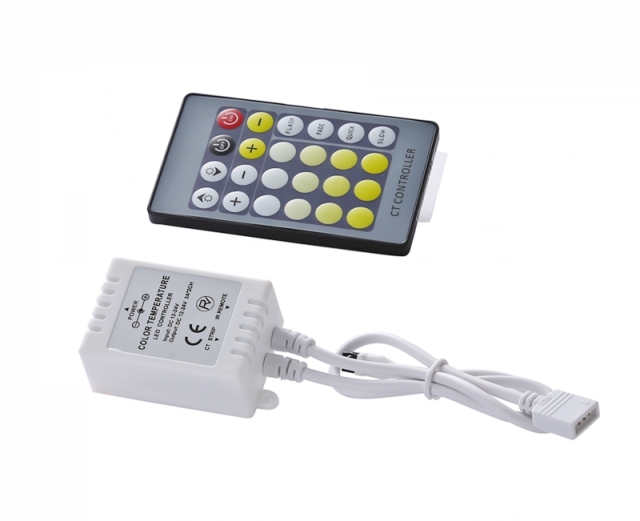

Technical Parameters：
● Working temperature：-20-60℃
● Input voltage：DC12~24V
● Output：3 circuit
● Connection mode：Common anode
● Static power consumption：<1W
● Output current：
Maximum load current <6A● Output power：
5V<30W, 12V<72W, 24V<144W ● Controller size：
L61*W35*H22 mm● Package size：
L90ΧW51ΧH40mm● Net weight：35g
● Gross weight：45g
● Carton size:
L38*W28*H22cm 100pcs

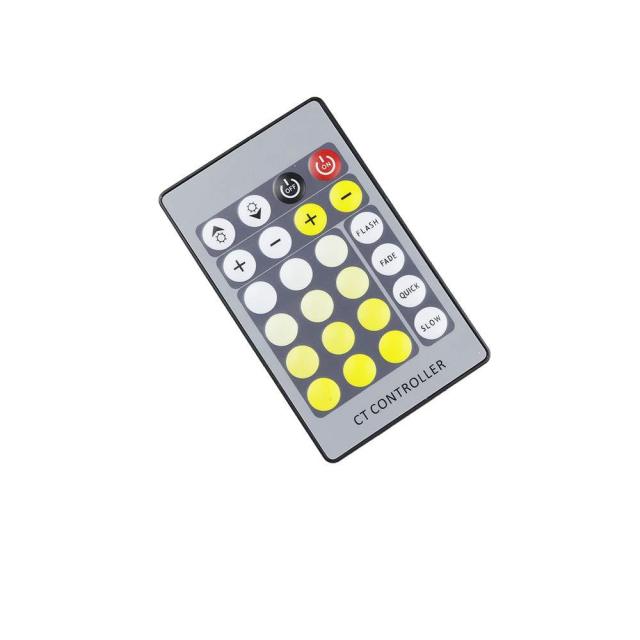

● Remote:

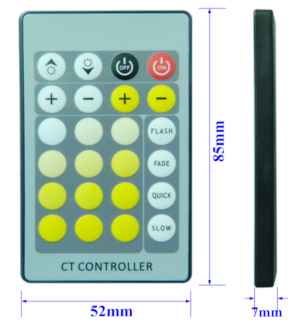

Size: L35*W50*H21mm
Control method: IR
Control range: 5-8M
Supply voltage：3V

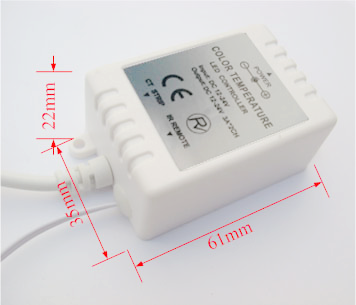

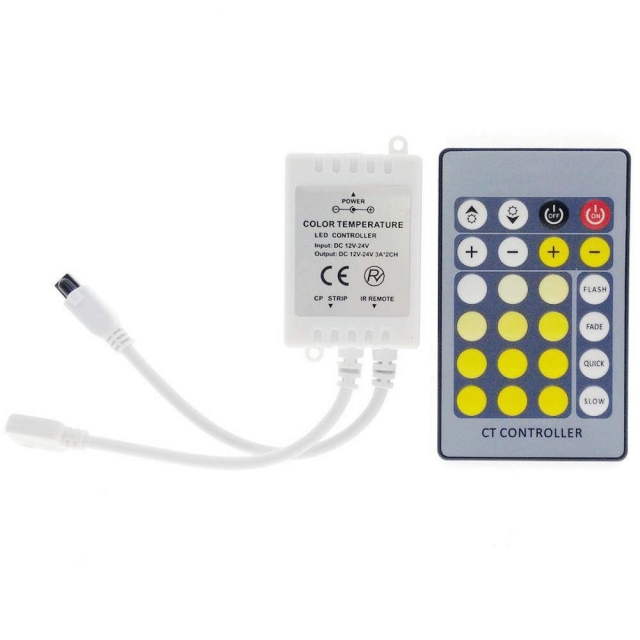

Controller Dimention：
External dimension:

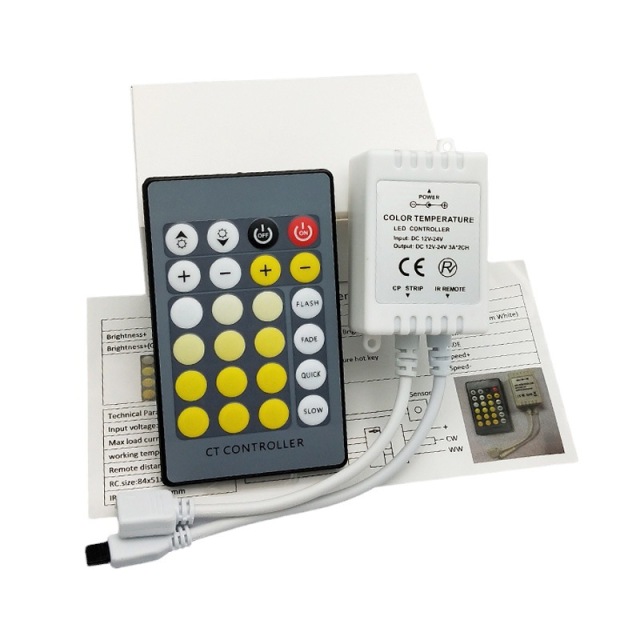

Direction for use

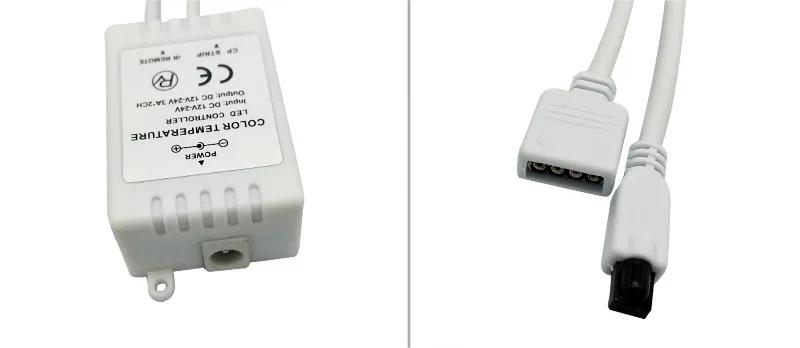

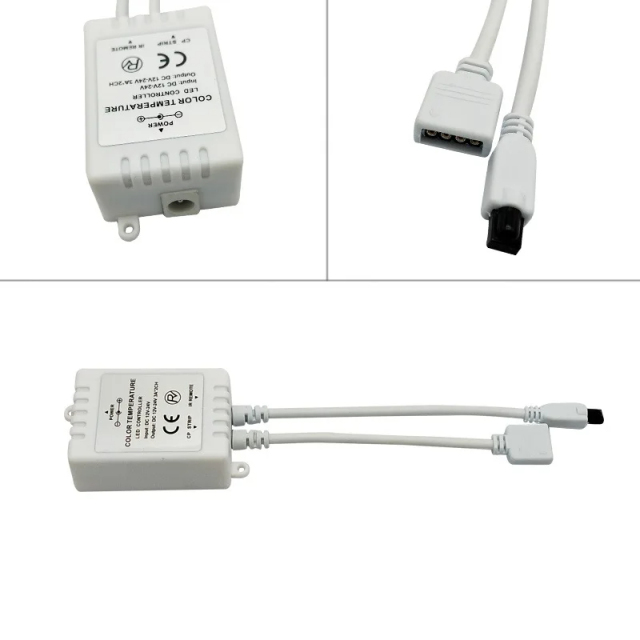

Connection description:

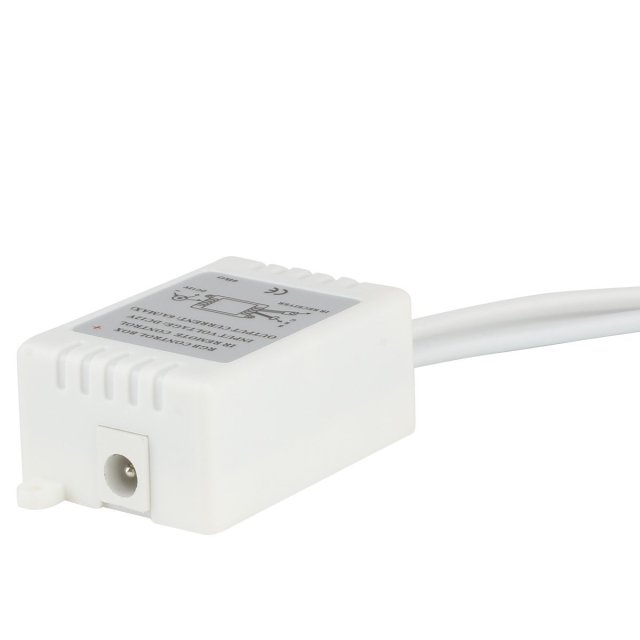

Power input interface (port1): Adopt the 5.5x2.1mm DC connector seat
Load output interface:Adopt the 4 pins connector, the channel near the arrow is the common + ,the second channel is for the warm white channel, the third channel is the cold white channel. The forth hold is blank,can be not used it .
Direction for use:
● Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables;

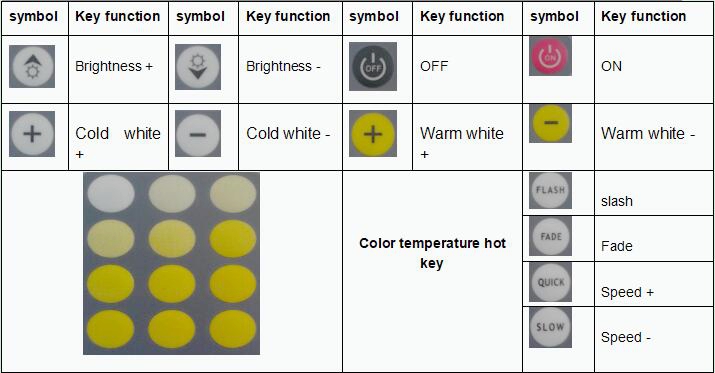

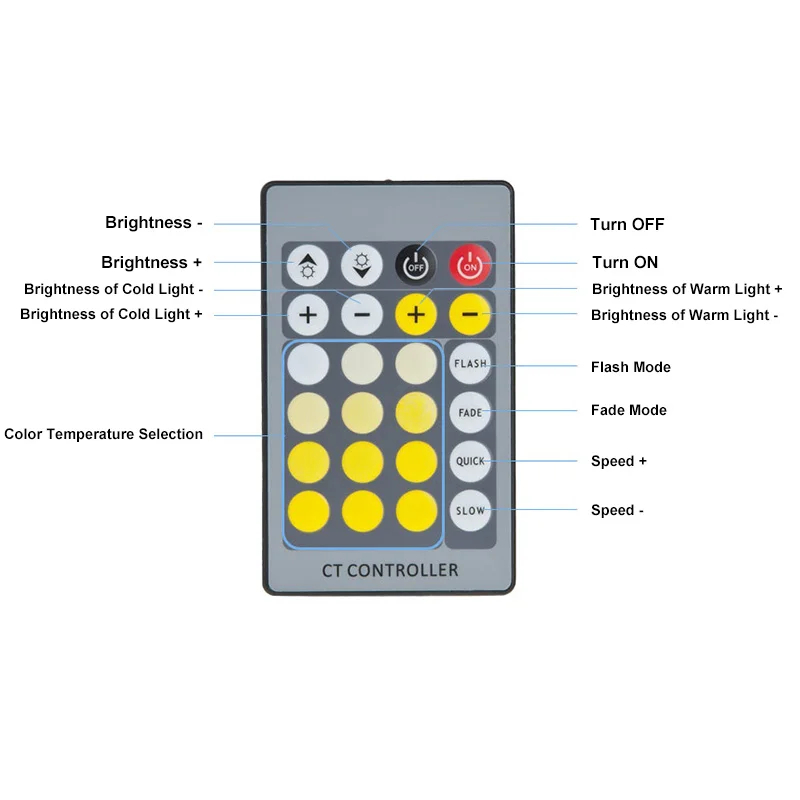

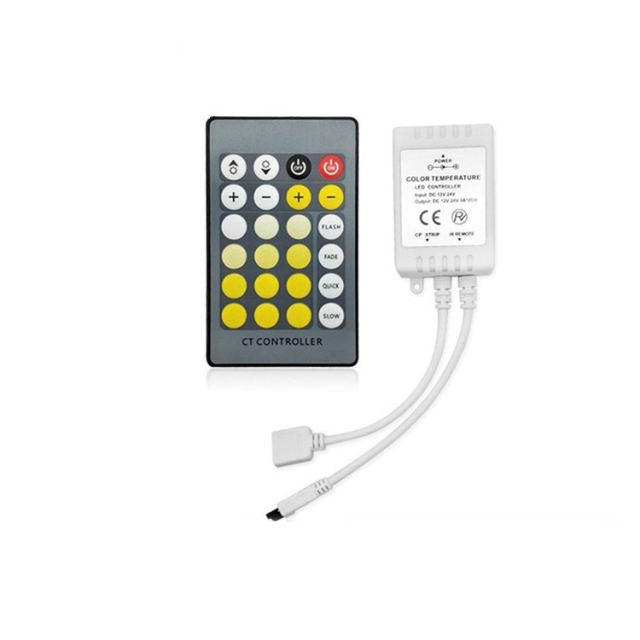

● Used the 24 key infrared remote control, the key function are as follows:

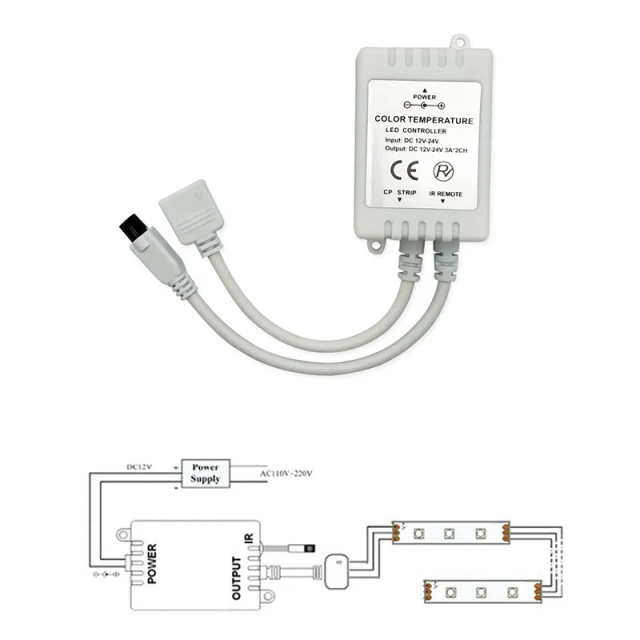

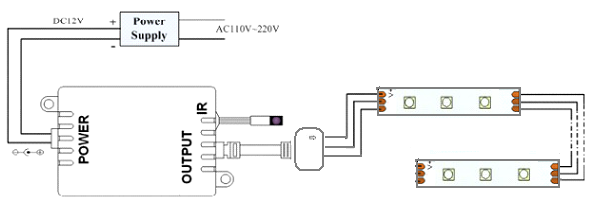

Connection description：
Attention:
1. This products Input voltage is DC5V or DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 2A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.

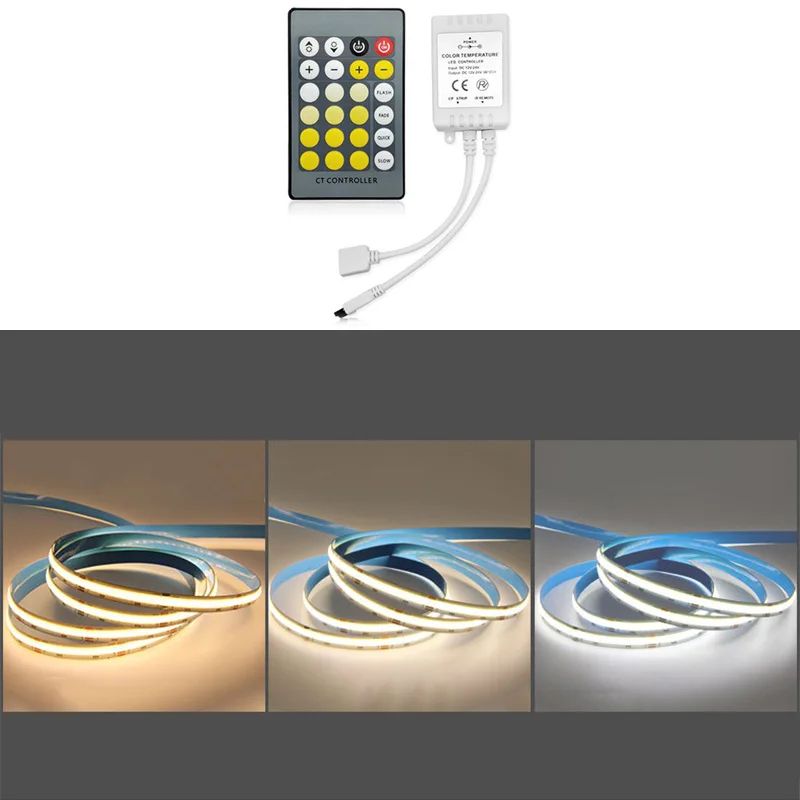

Application:
