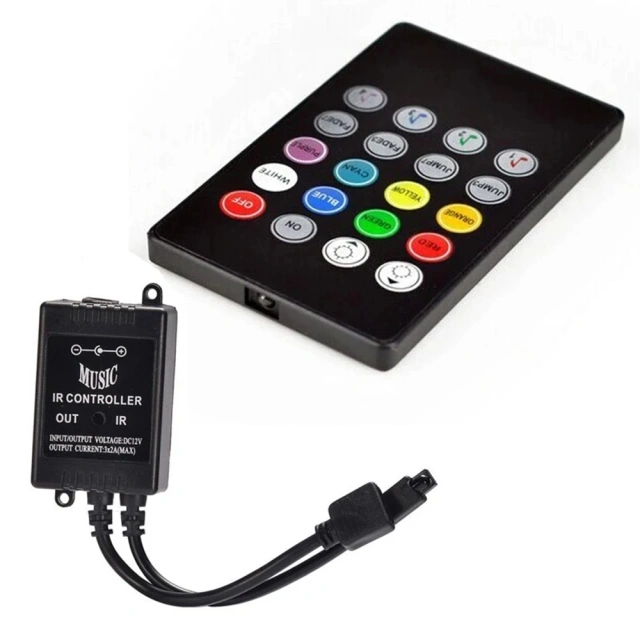

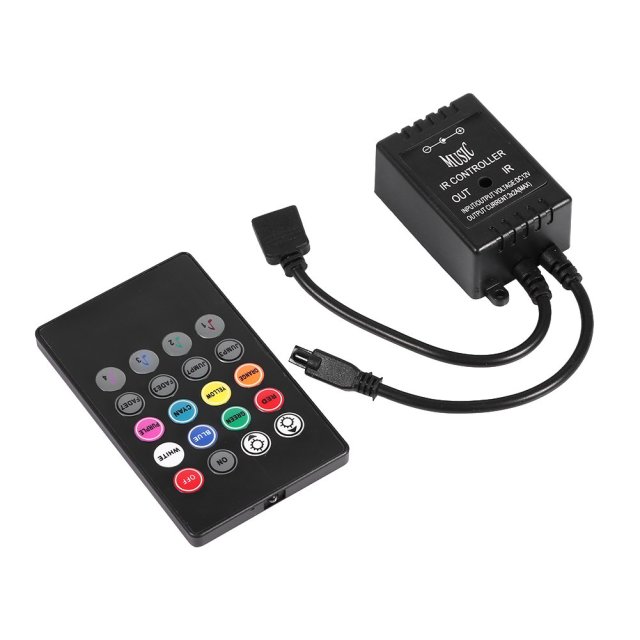

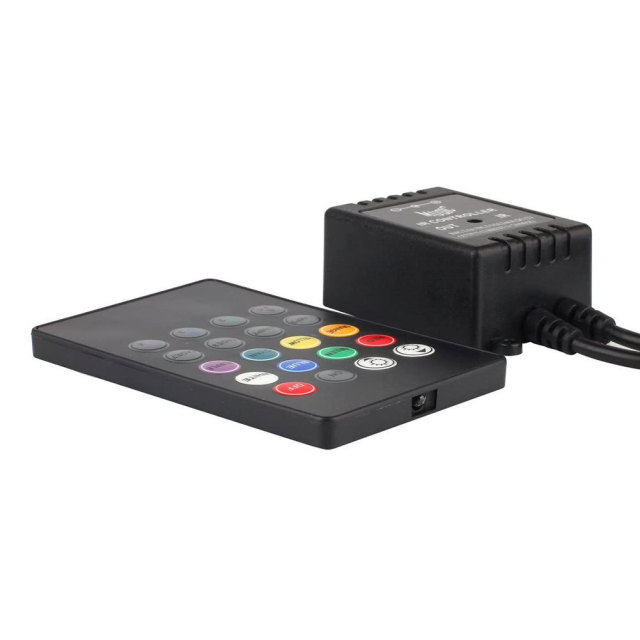

IR 20 Keys MUSIC RGB Led Controller - DC12~24V

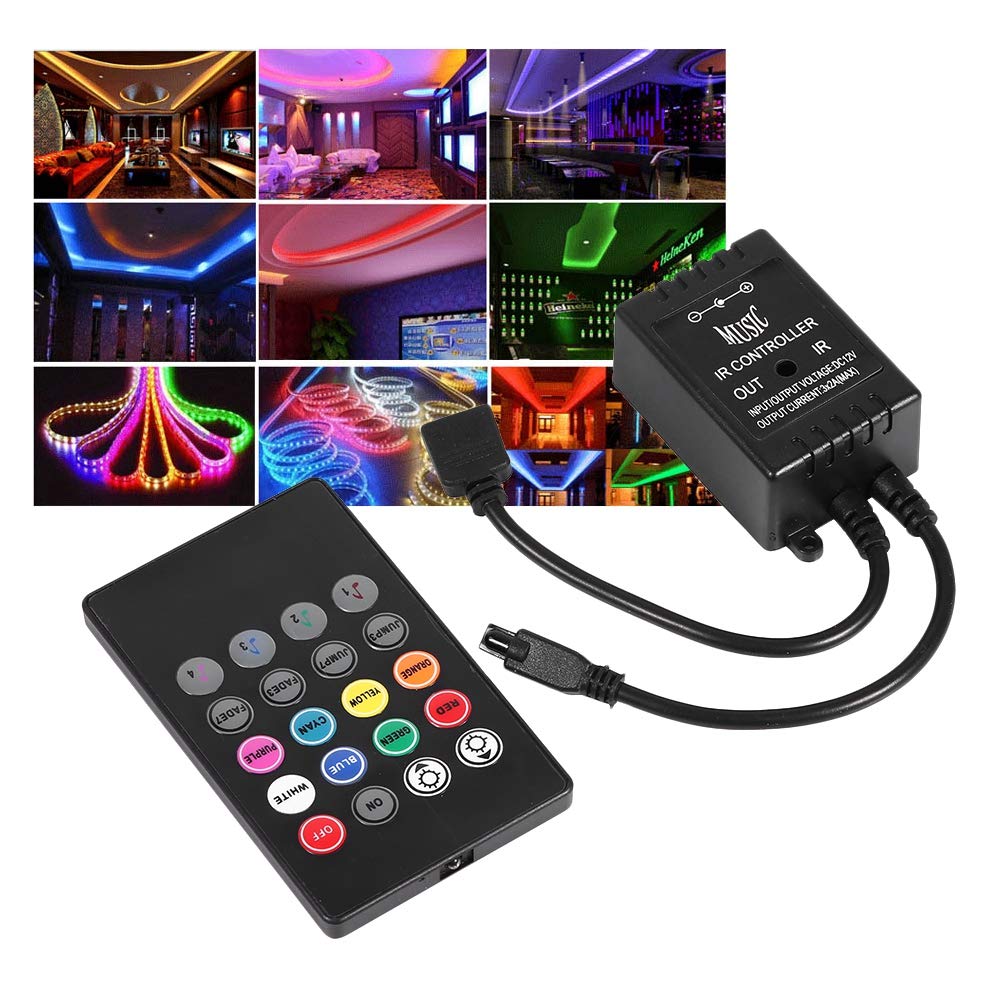

IR 20 Keys Music Controller adopts the advanced micro control unit. It is used for controlling a variety of LED lamp. For instance, LED strips, LED module light , LED light box, uminous characters etc. It has many advantages such as low cost, convenient connection and ease of use; With memory storage function, you can adjust the static brightness, static color, dynamic speed regulation and so on lighting change effects via the IR remoter. When it is in sound-control mode, the colors will change with the music rhythm.

Output connector quantity:

1 pcs 4 pin connector

2 pcs 4 pin connector

Description

Technical Parameters：

Working temperature：-20-60℃
Supply voltage：DC5V/12V,12~24V (both of voltage are available for choice)
Output：Three CMOS drain open circuit output
Connection mode：Common anode
Controller size：L63×W35×H22mm
Remoter size：L84×W51×H7mm
Net weight：50g
Gross weight：66g
Static power consumption：<1W
Output current：Maximum load current <6A
Output power：5V<30W, 12V<72W, 24V<144W

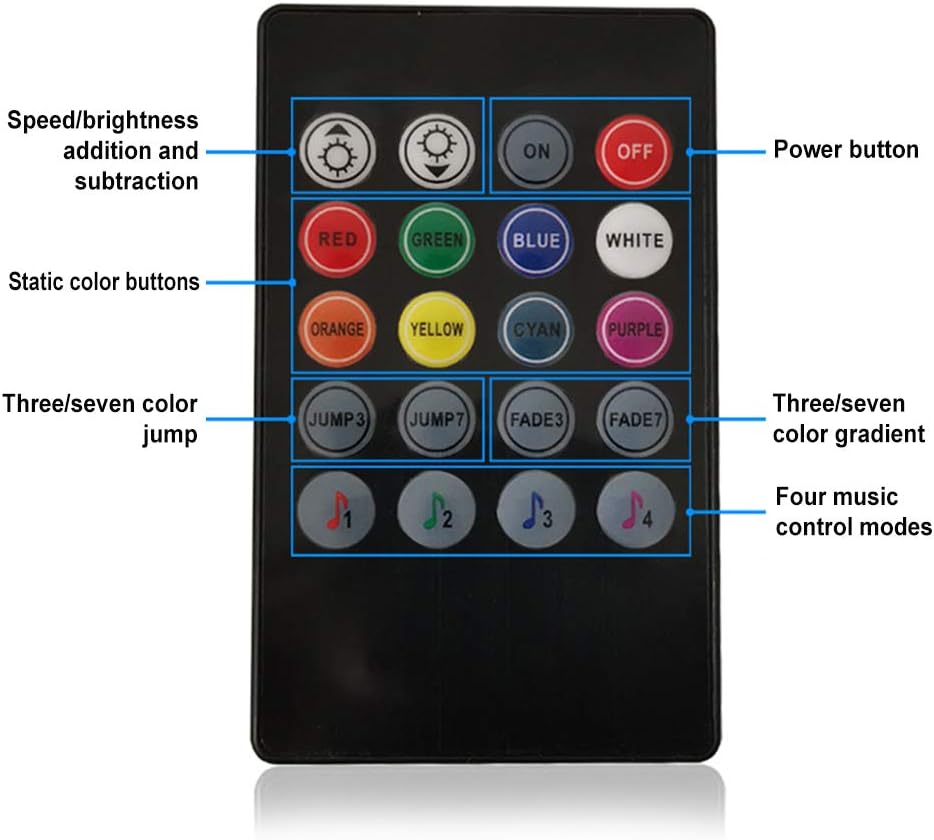

● Remote:

Control method: IR
Control range: 8-10M
Supply voltage：3V

Direction for use

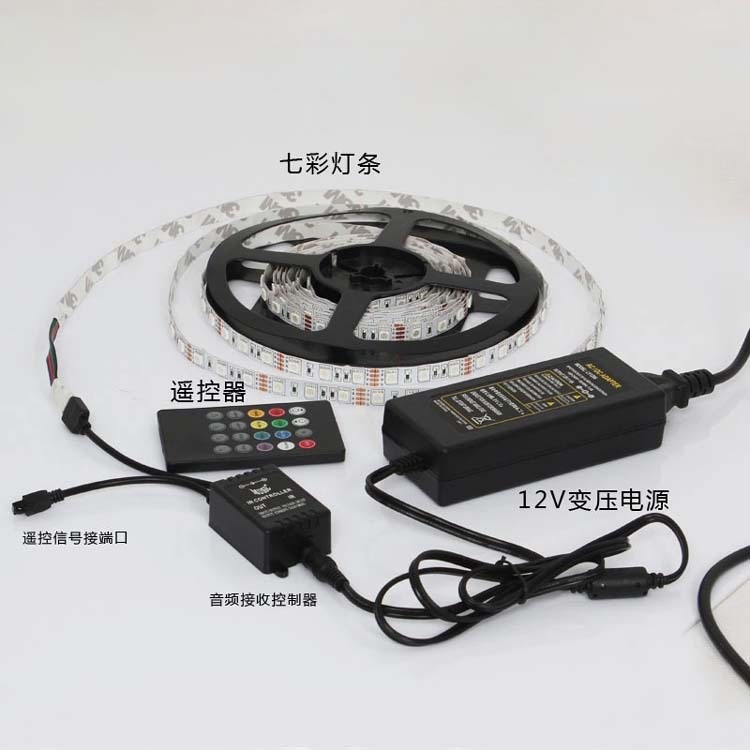

Connection description:
Power input interface (port1): Adopt the 5.5x2.1mm DC connector seat
Load output interface: Adopt the 4 pins connector, the channel near the arrow is the common + ,the second channel is for the green channel, the third channel is the red channel. the forth channel is the blue channel.
(the output color sequency can be customized：such as +GRB/+RGB/+BRG)

Direction for use:

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power
Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

Music mode supplemental instruction：
Sound-control mode 1(general music)：all colors will gradual or jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will gradual change.
Sound-control mode 2(tenderness music):all colors will slow breathing or jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will slow breathing change
Sound-control mode 3(active music):all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, current colors keep lighting.
Sound-control mode 4(DJ music):all colors will strobe change following the music/sound rhythm. If no music/sound input or sensed, all colors off.

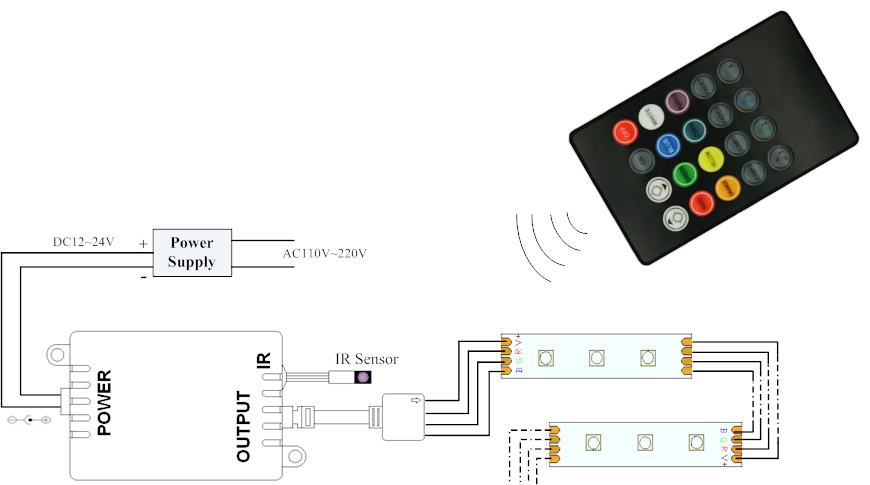

Connection description：

Attention:

Supply voltage of this product is DC5V or DC12V-24V, never connect to others or AC220V.

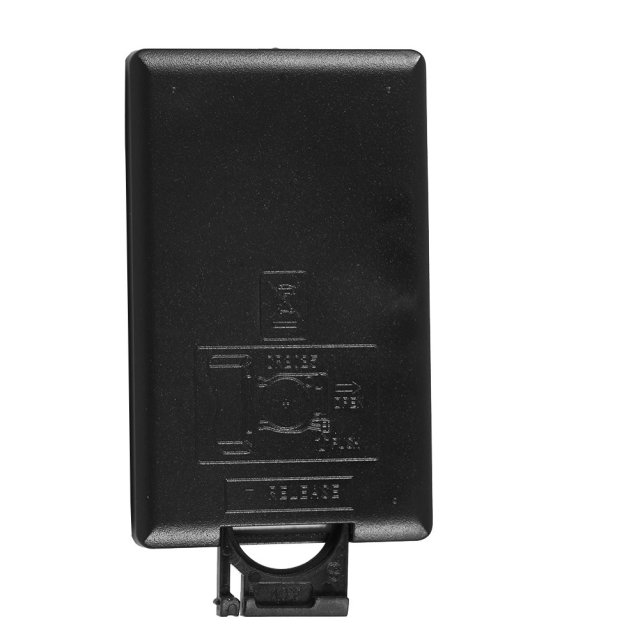

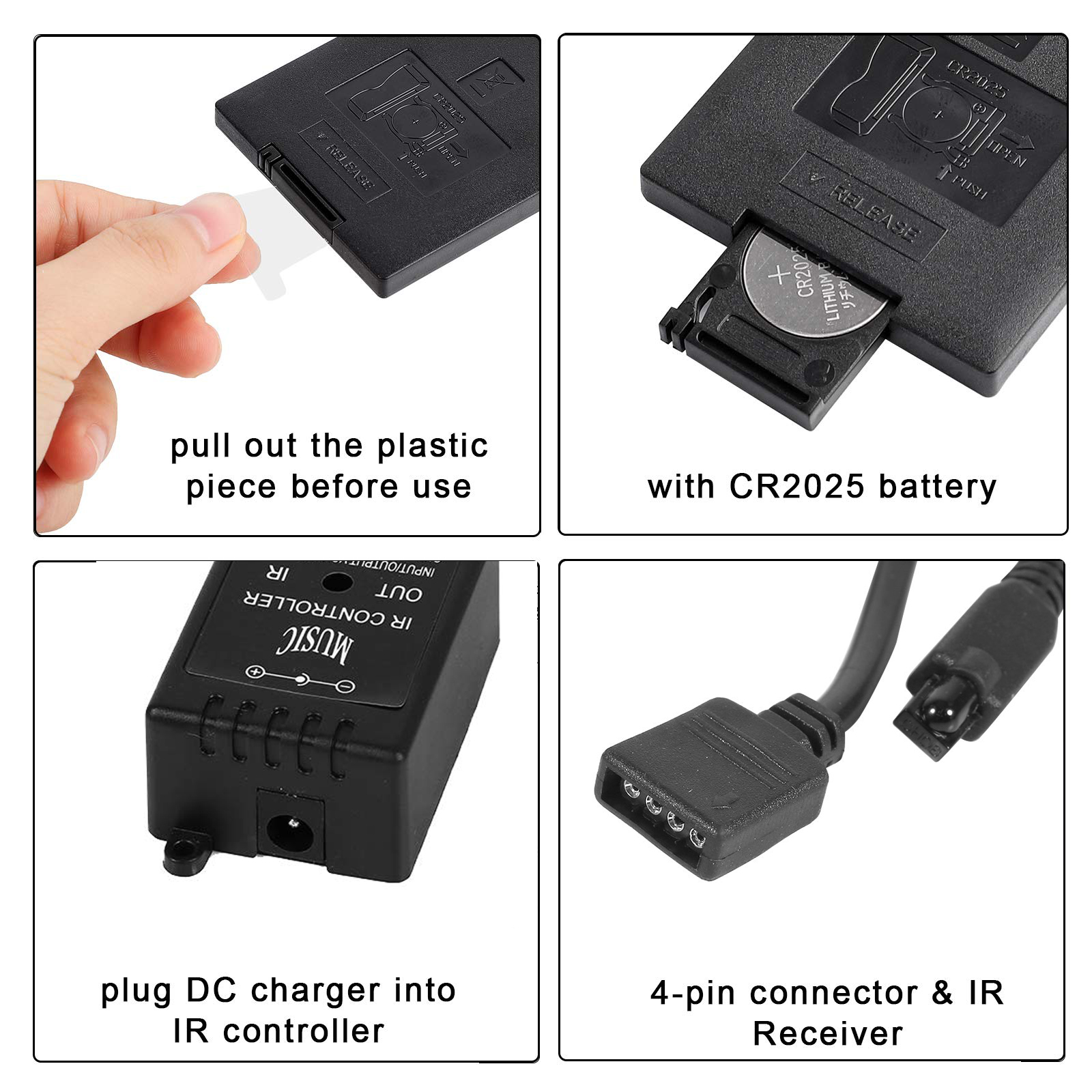

Before using the infrared remote,the insulating film should removed.
Lead wire should be connected correctly according to gradethat connecting diagram offers.
This product is not to overload;
Warranty of this product is twoyear, but exclude the artificial situation of damaged or overload working.
