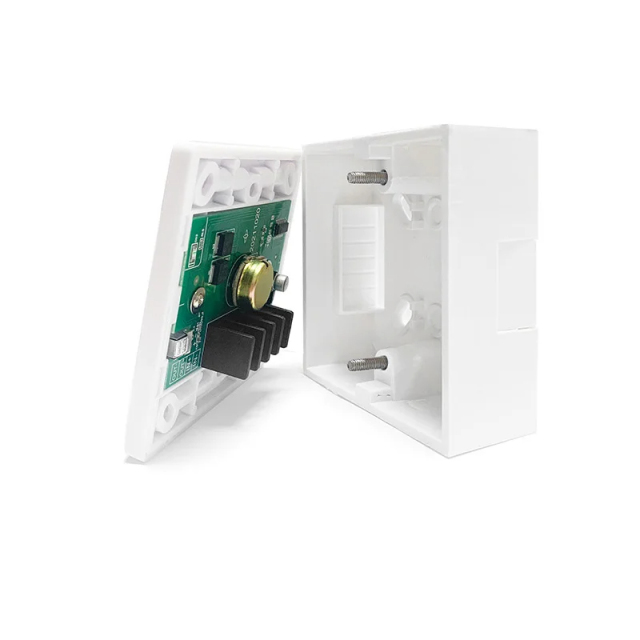

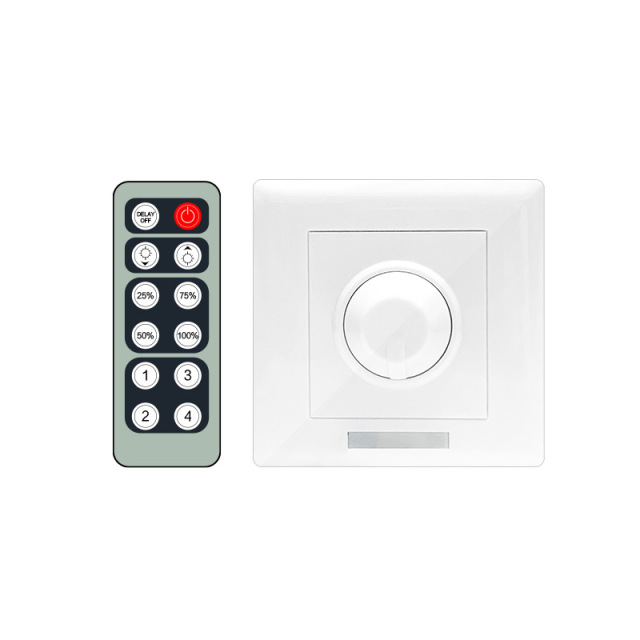

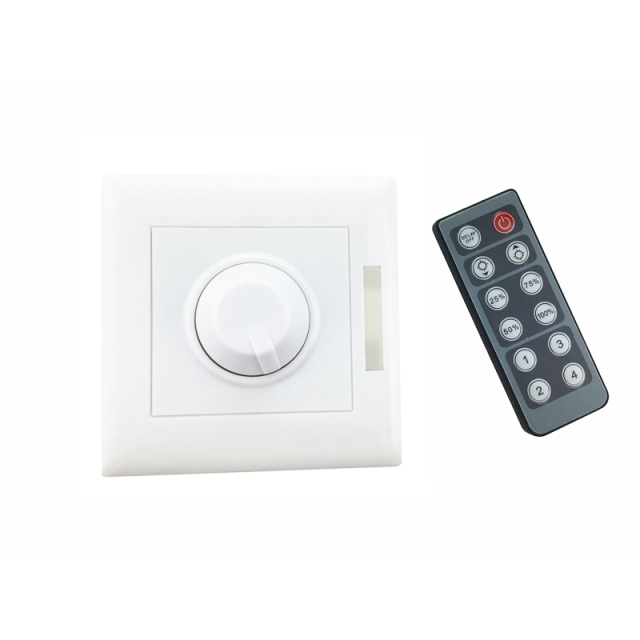

IR 12 keys knob Dimmer

No.D06

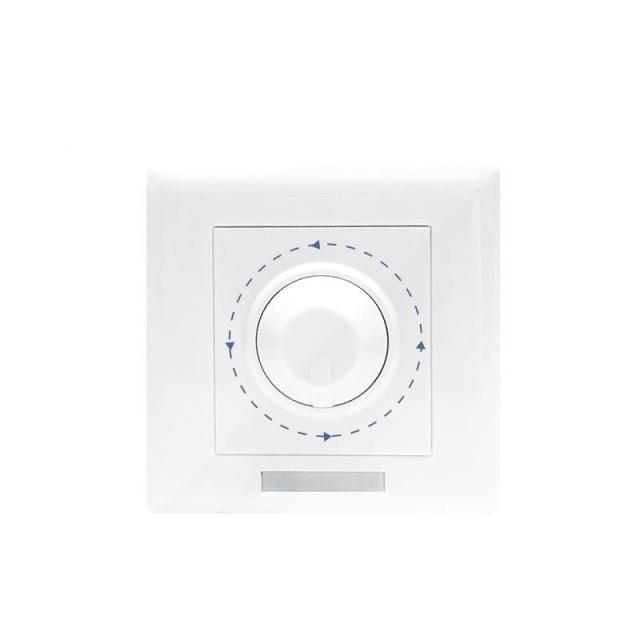

12-key Infrared knob Dimmer Is a dedicated intelligent LED lighting dimmer controls, Adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, You can manually adjust the brightness step-less. IR wireless remote control can also be used to remote dimming; Standards for commercial or home a low 86-type switch socket box installation, LED Dimmer switches can be installed to meet the light needs of commercial or home lighting in the different time and different environments, To extend the LED life span, energy saving; power and low-power LED lighting can be dimming. Is used to control a variety of led lamps as the light source, For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on;

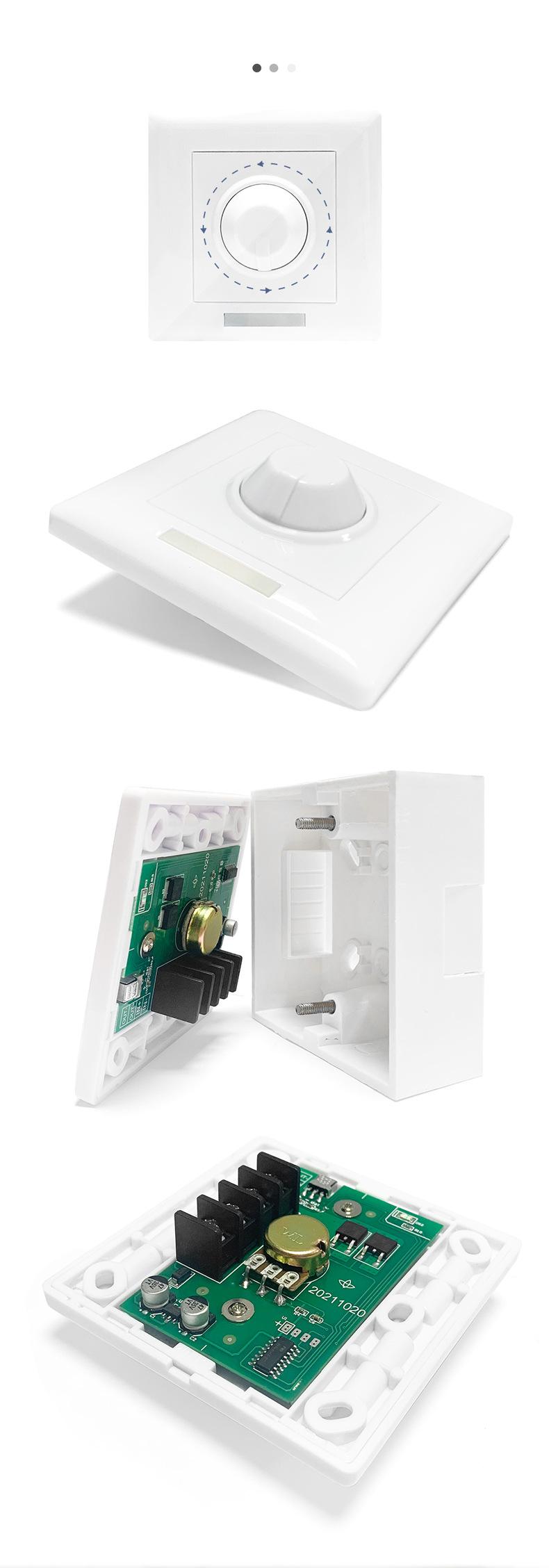

Description

Technical Parameters：

Product name: IR 12 keys knob Dimmer
Model No.：D06
Working temperature：-20-60℃
0utput: 1 channel
Input voltage：DC5V, 12V~24V optional
Connection mode：Common anode
controller size： L87*W87*H53 mm
Packing size: L106xW106xH66mm
Net weight：150g
Gross weight：200g
Static power consumption：<0.5W
Output current：<16A
Output power: Max: 5V:<80W,12V:<192W, 24V:<384W

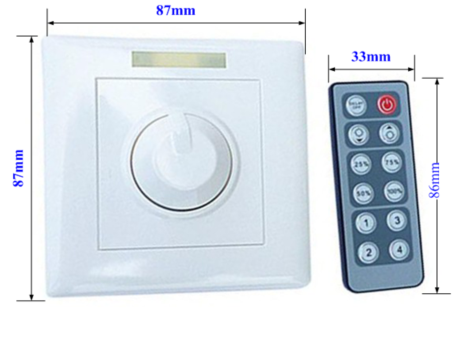

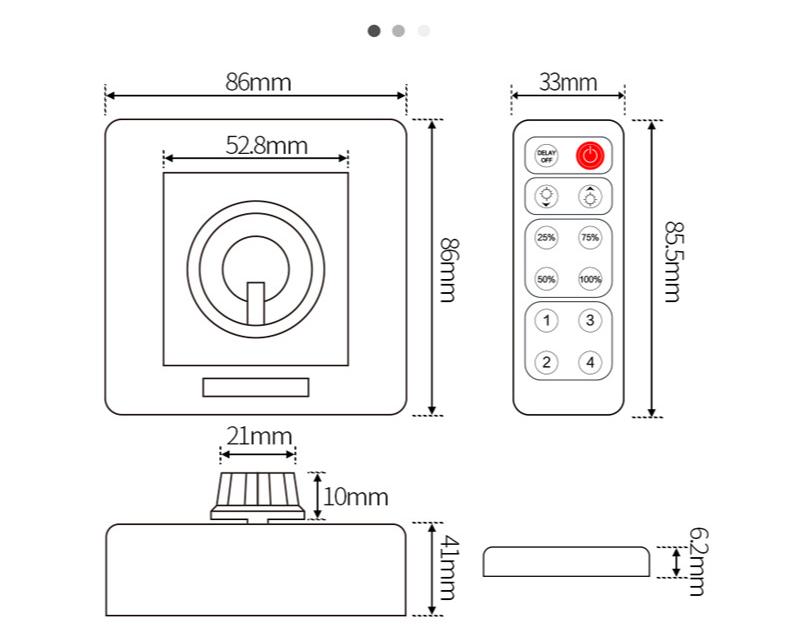

Controller Dimention：

Connect the load wire at first,following by the power wire;
Please ensure short circuit can not occur between connecting wire before you turn on the power；
Adopt rotary button,its function as follows:

Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

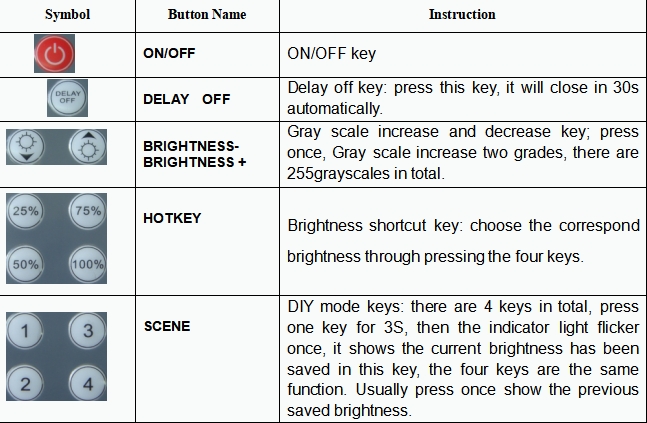

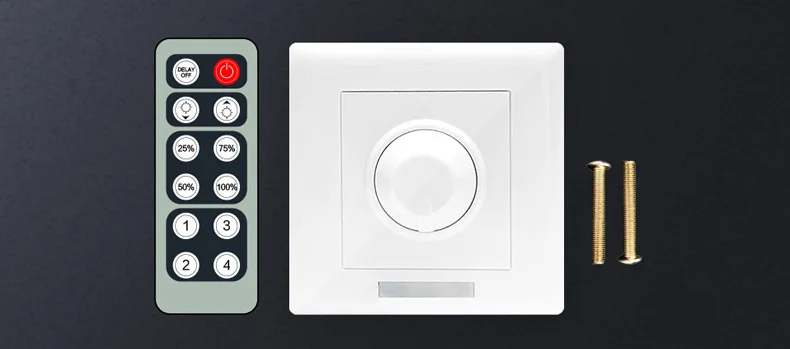

Remote function introduce:

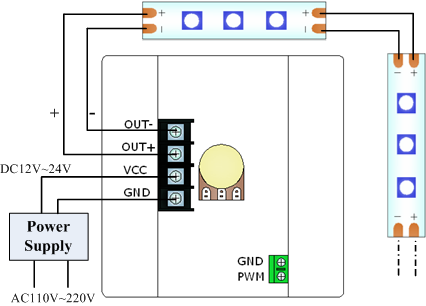

Connection description：

Application:

Attention:

1. This products Input voltage is DC5V or DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 16A.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
