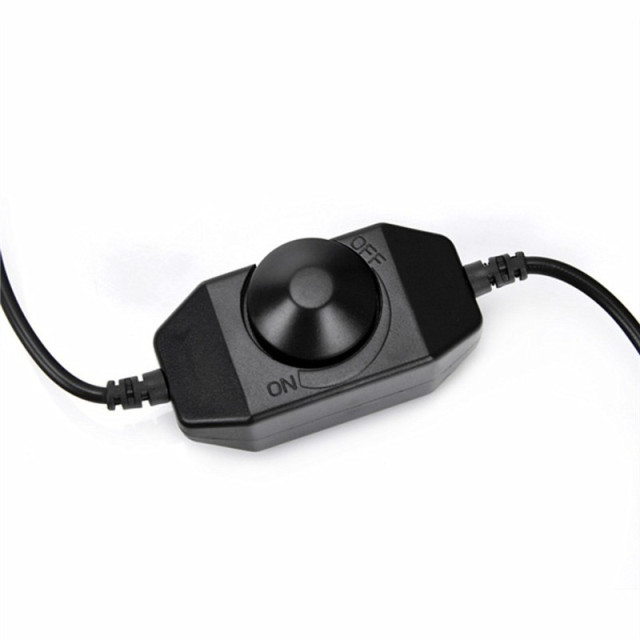

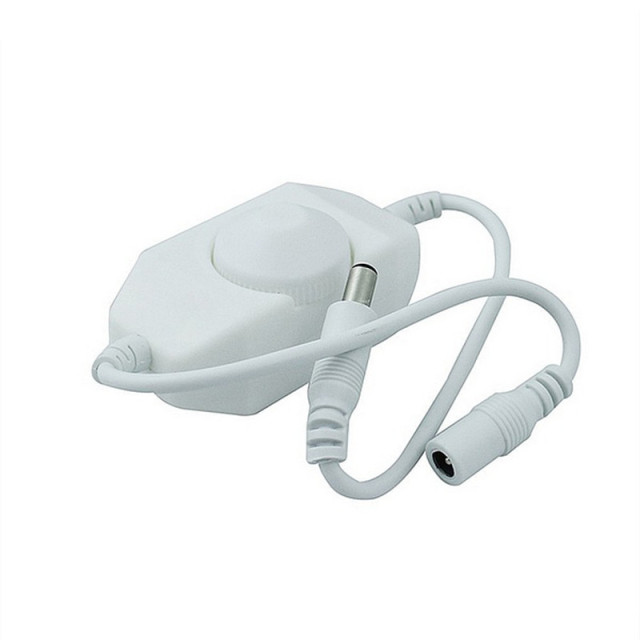

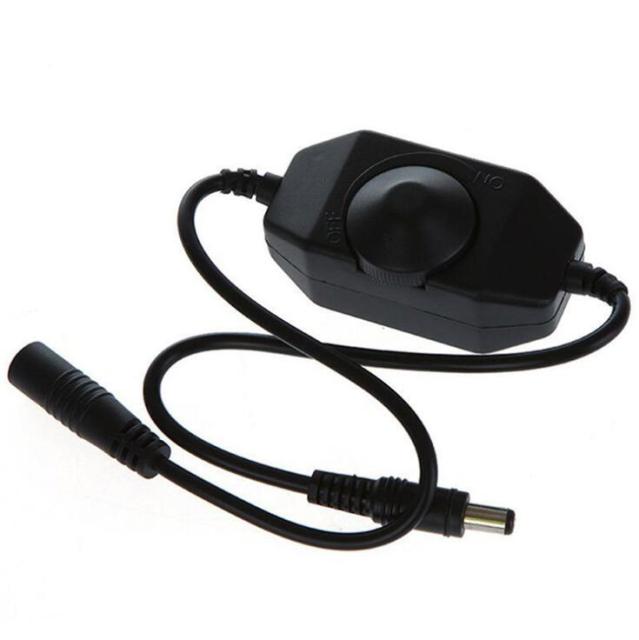

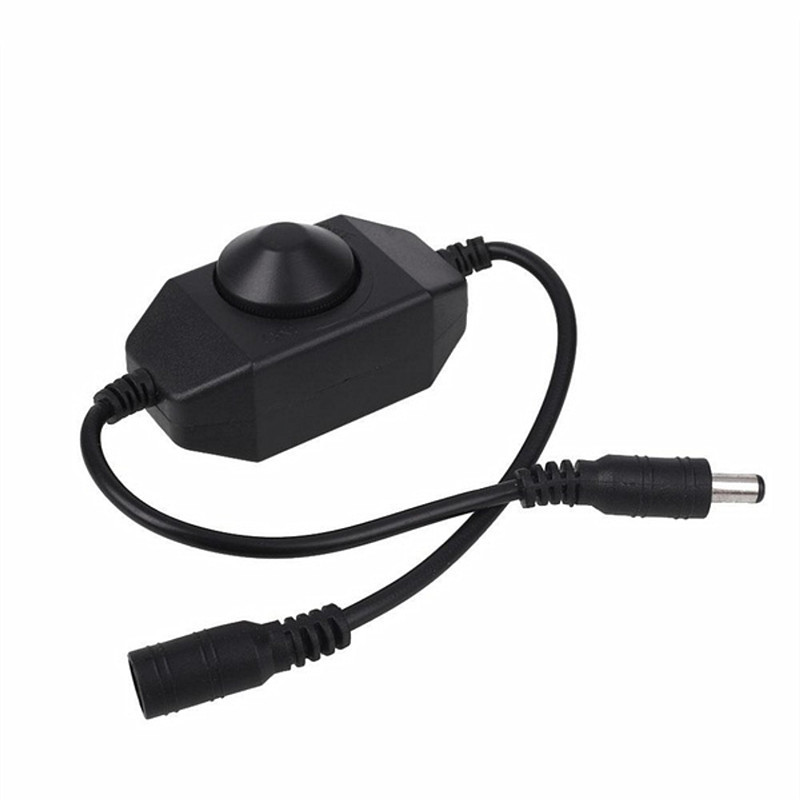

Technical Parameters：
- Product name: Single color inline dimmer switch
- Model No.：D05
- Working temperature：-20-60℃
- 0utput: 1 channel
- Input voltage：DC5V,12-24V
- Connection mode：Common anode
- controller size： L61×W33×H32mm
- Packing size: L90xW60xH40mm
- Net weight：30g
- Gross weight：50g
- Static power consumption：<0.5W
- Output current：<8A
- Output power: Max: 5V<30W, 12V<72W, 24V<144W
Controller Dimention：
1.Connect the load wire at first, following by the power wire;
Please ensure short circuit can not occur between connecting wire before you turn on the power；

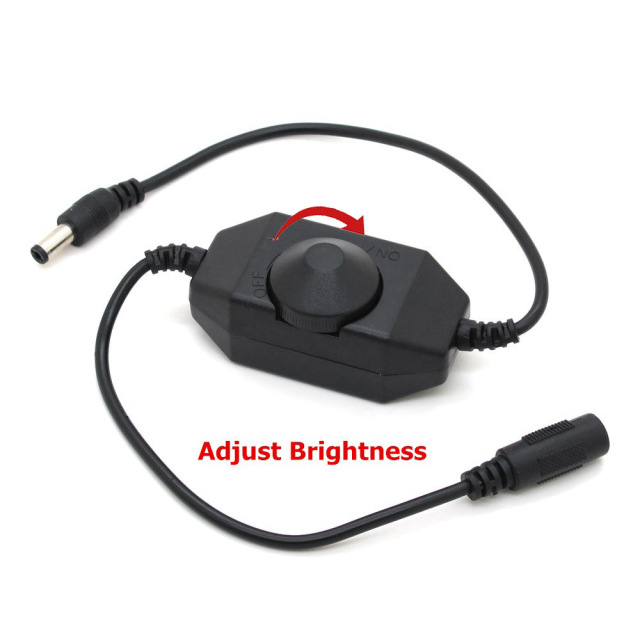

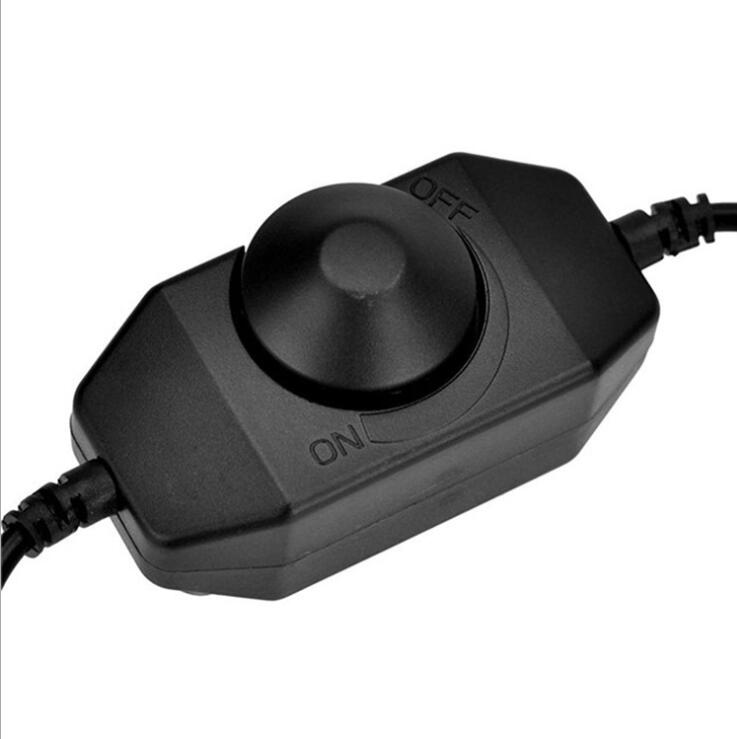

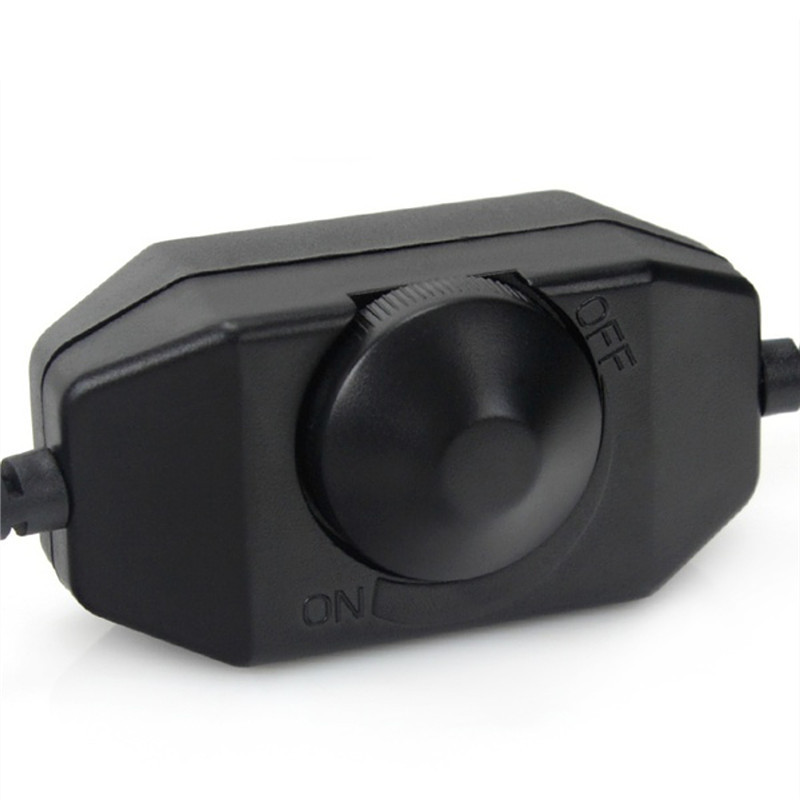

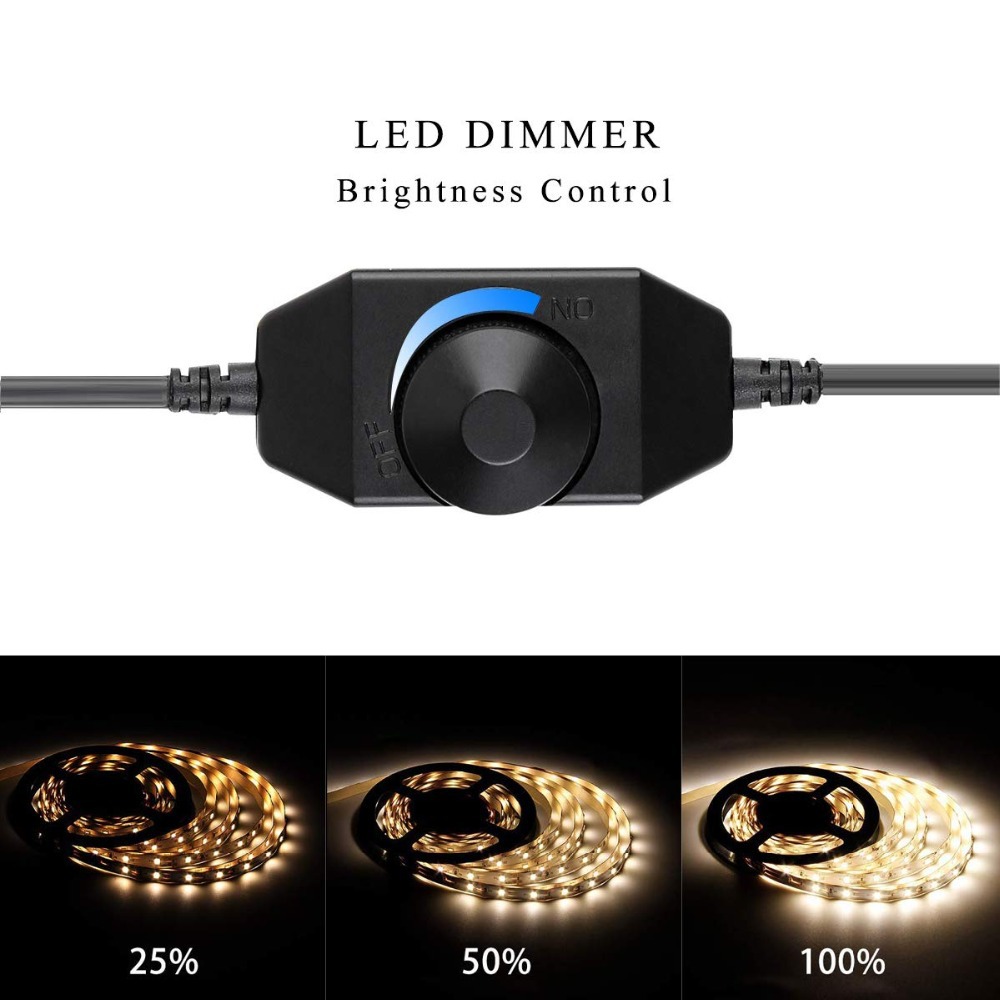

2. Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

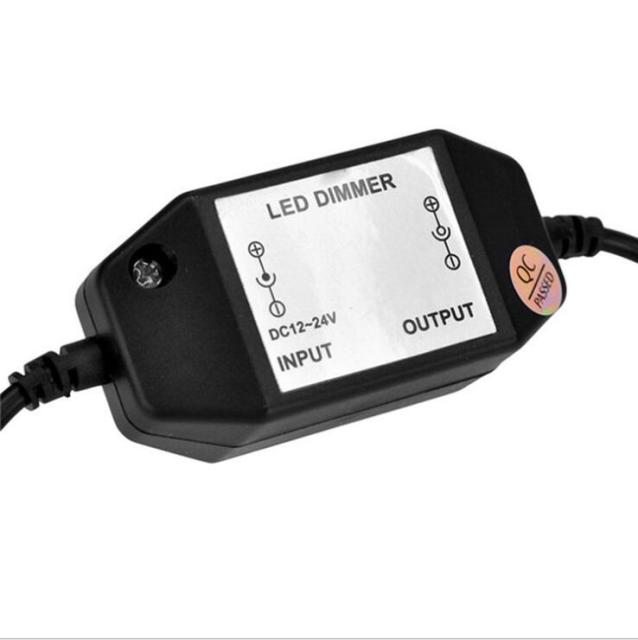

Connection description：

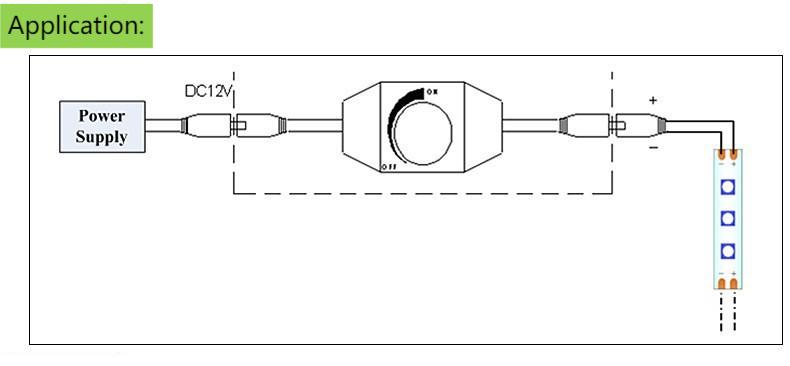

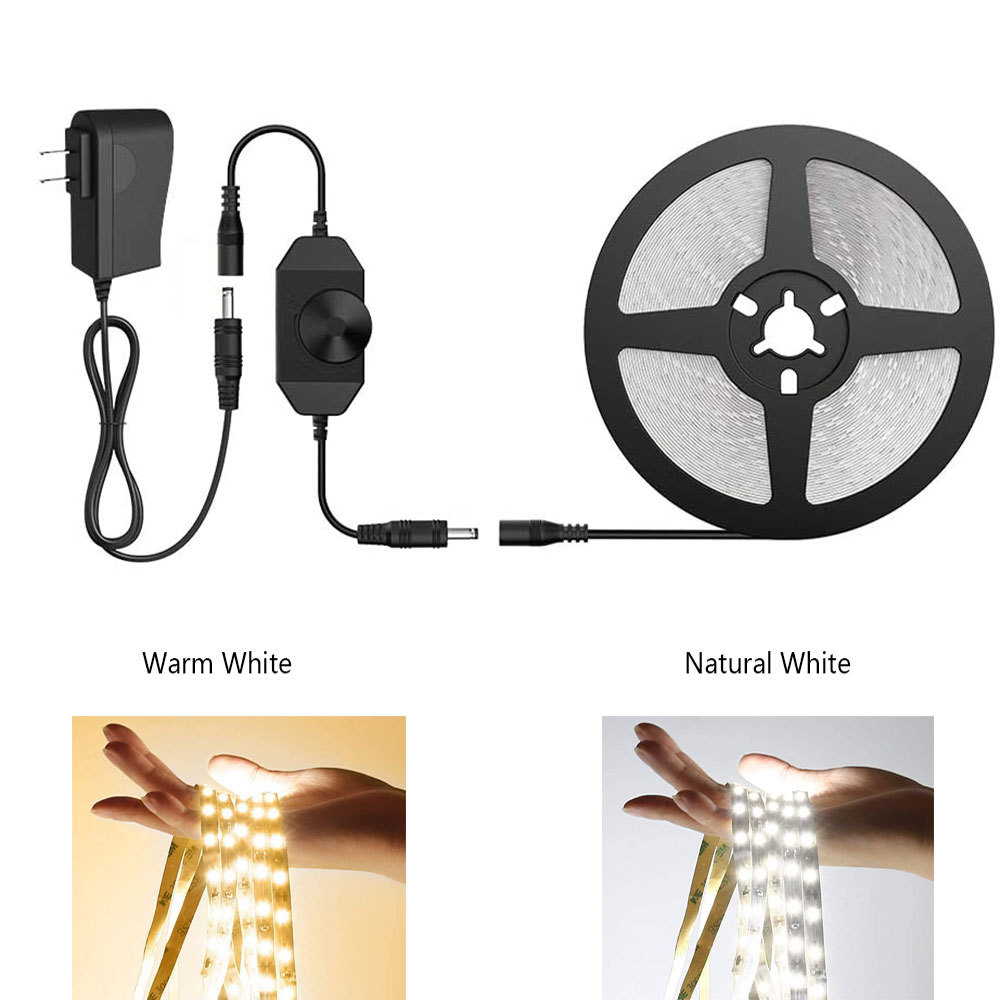

Application:
Attention:
1、This products Input voltage is DC12V,other input voltage are not allowed.
2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3、Overload are prohibited.
