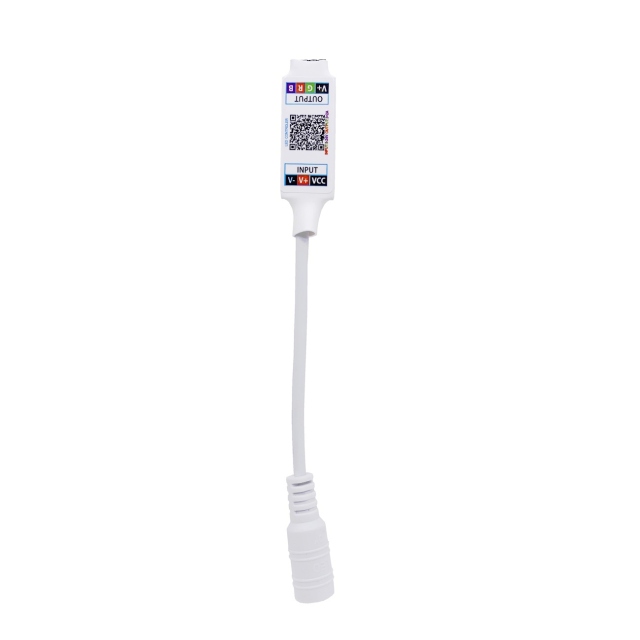

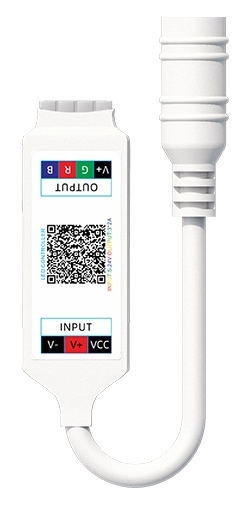

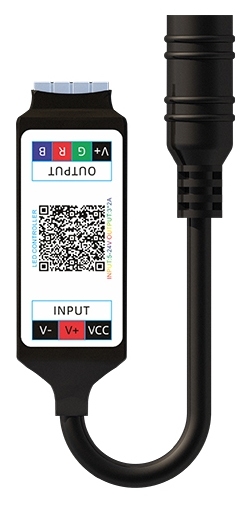

Bluetooth Music IR 24 Keys mini RGB Controller APP: "Lotus Lantern"

No.IR-M01

Bluetooth Music IR 24 Keys mini  RGB Controller is a intelligent LED controller which is compatible with "Lotus Lantern"  APP control and IR Remote control. It use latest Bluetooth solution technology to ensure device’s stability and easy to use. Main function are Music control,16 million colors, dynamic modes, brightness adjustment, speed adjustment etc.

Input voltage:
DC 5V~24V
Output power:
5V:≤30W, 12V:≤72W, 24V:≤144W

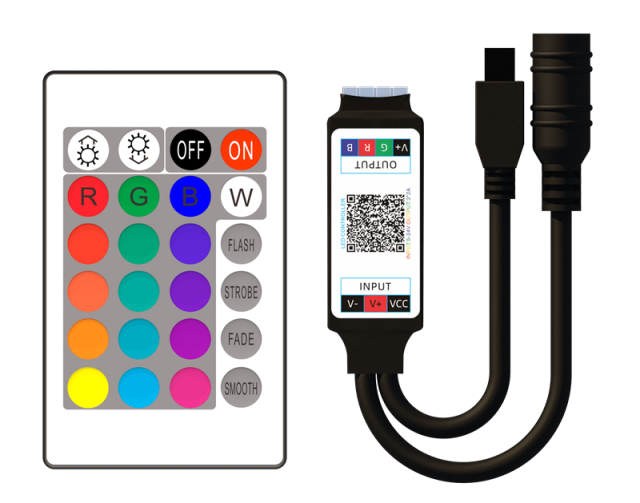

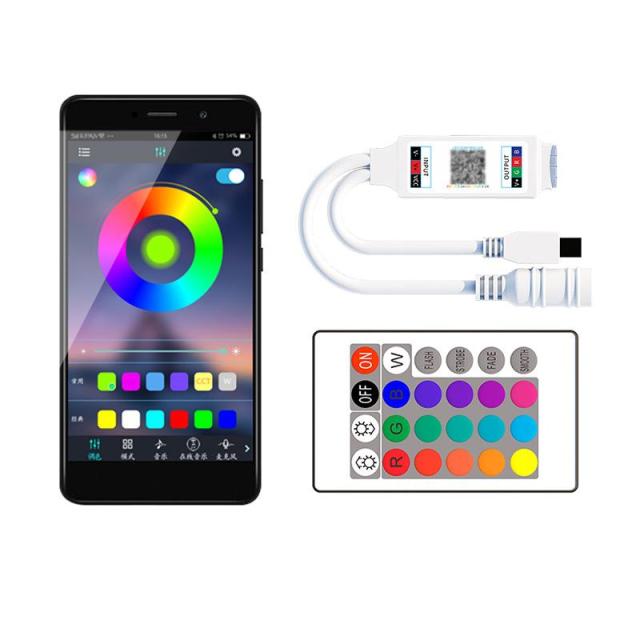

With 24keys Remote:
Black color
White color

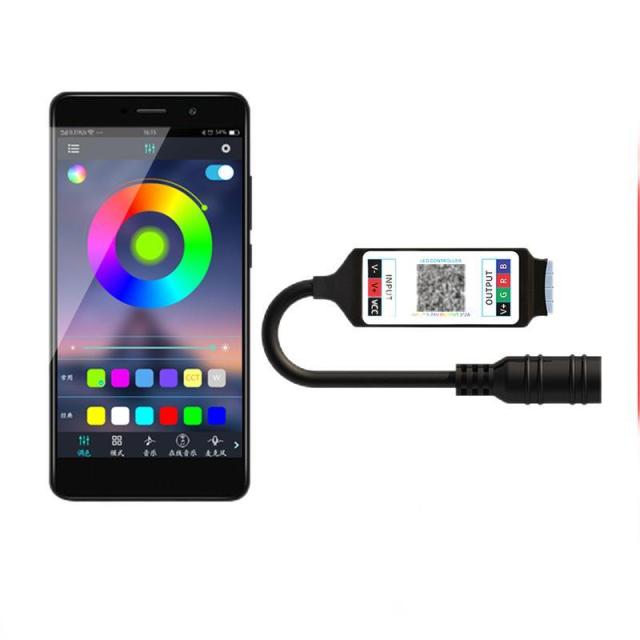

Whitout 24keys remote:
Black color
White color
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
  • Bluetooth Music IR 24 Keys mini  RGB Controller  APP: "Lotus Lantern"
Description

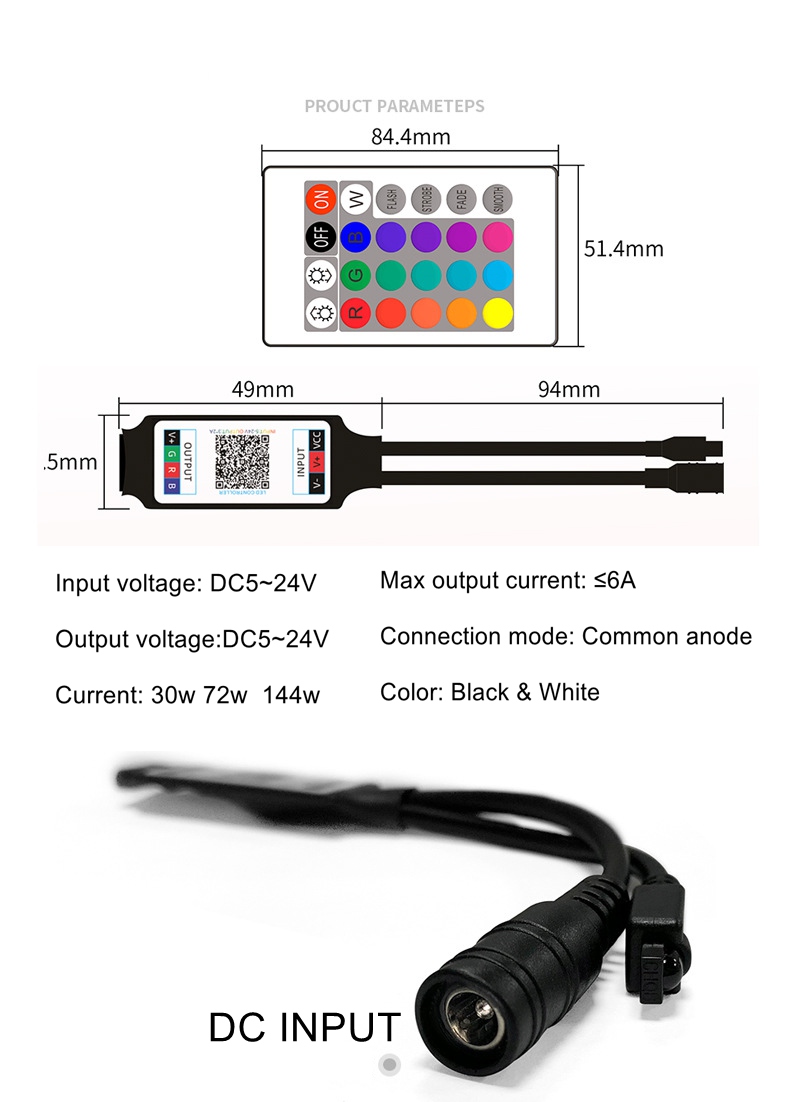

Technical Parameters:

Controller:

  • Model No.: IR-M01
  • App: : "Lotus Lantern"
  • Working temperature:-20-60℃
  • Input voltage: DC 5~24V
  • Output: RGB: 3 channels
  • Max output current: ≤6A
  • Controller size: L49*W9*H5mm  / Wire lehgth: 94mm
  • Net weight: 30g(set)   Gross weight: 45g(set)
  • Packing size : L13*W9*H7mm
  • Type: with & whihout remote  /   Black & white controller housing

Remote control:

  • Working voltage: 3V, 1*CR2025 button cell
  • External dimension: L84.4mm*W51.4*H7mm

 Controller & Remote control fuction instruction



"Lotus Lantern" APP pairing instructions:

(1) APP download


① Scan this QR Code to download: "Lotus Lantern" APP via mobile phone.

② Other methods to download APP:

iOS system: search "Lotus Lantern"in APP Store.

Android system: search "Lotus Lantern"  in Google play.

③ Open your phone Bluetooth function.

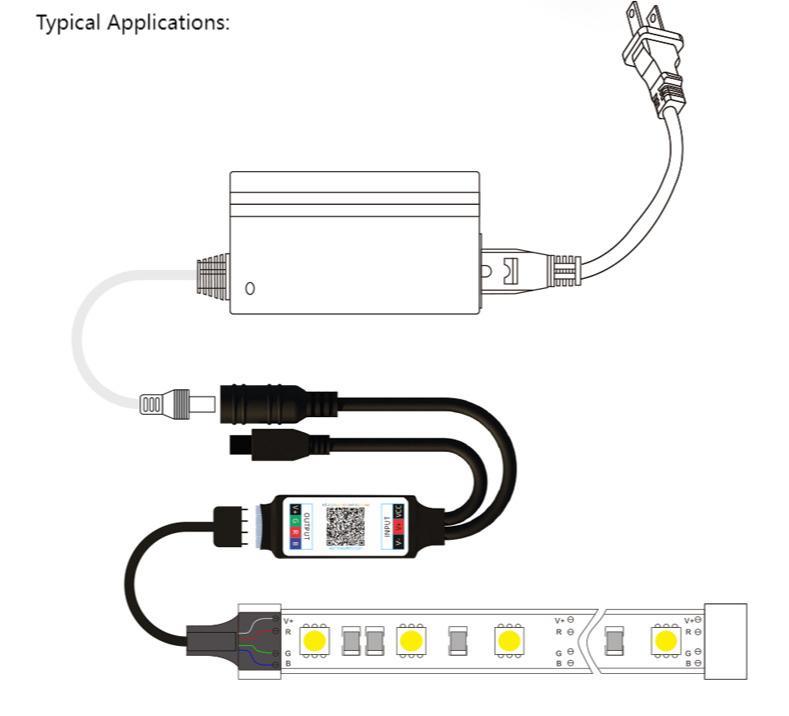

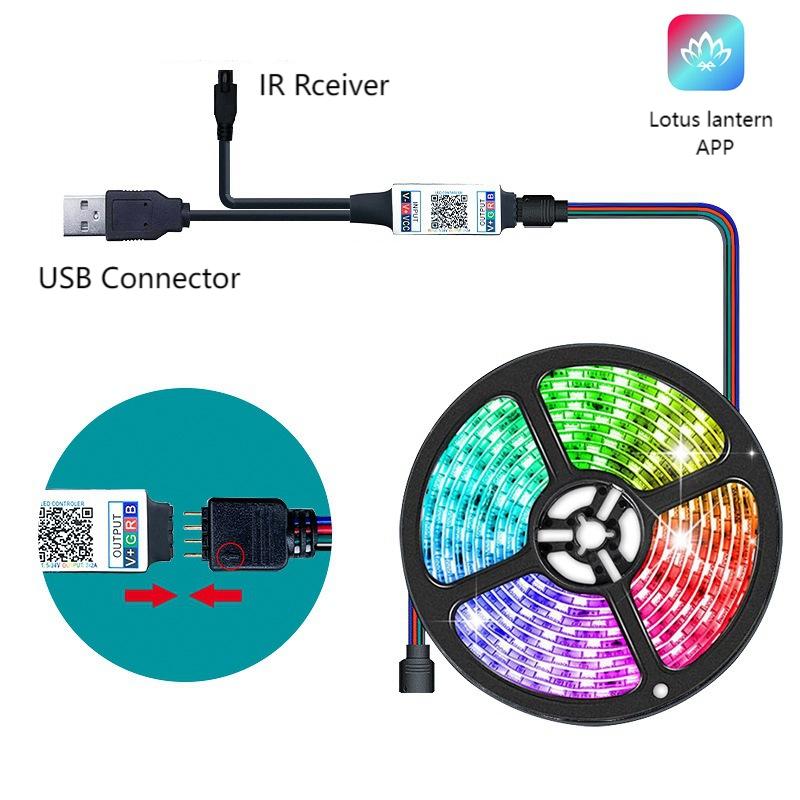

 (2) Controller device installation

①  Connecting controlller and output led light first.

② Connecting input power supply , to ensure no short circuit between the cables before power on, supply voltage is DC5-24V, do not input on other voltage.

(3) To add bluetooth device

1: Open the control software APP--"Lotus Lantern";

2: Enter the homepage, Click  "+"  in the upper right corner to add the bluetooth device;

3: APP into “connection” page, long press the device name “xxx" to rename the device name,

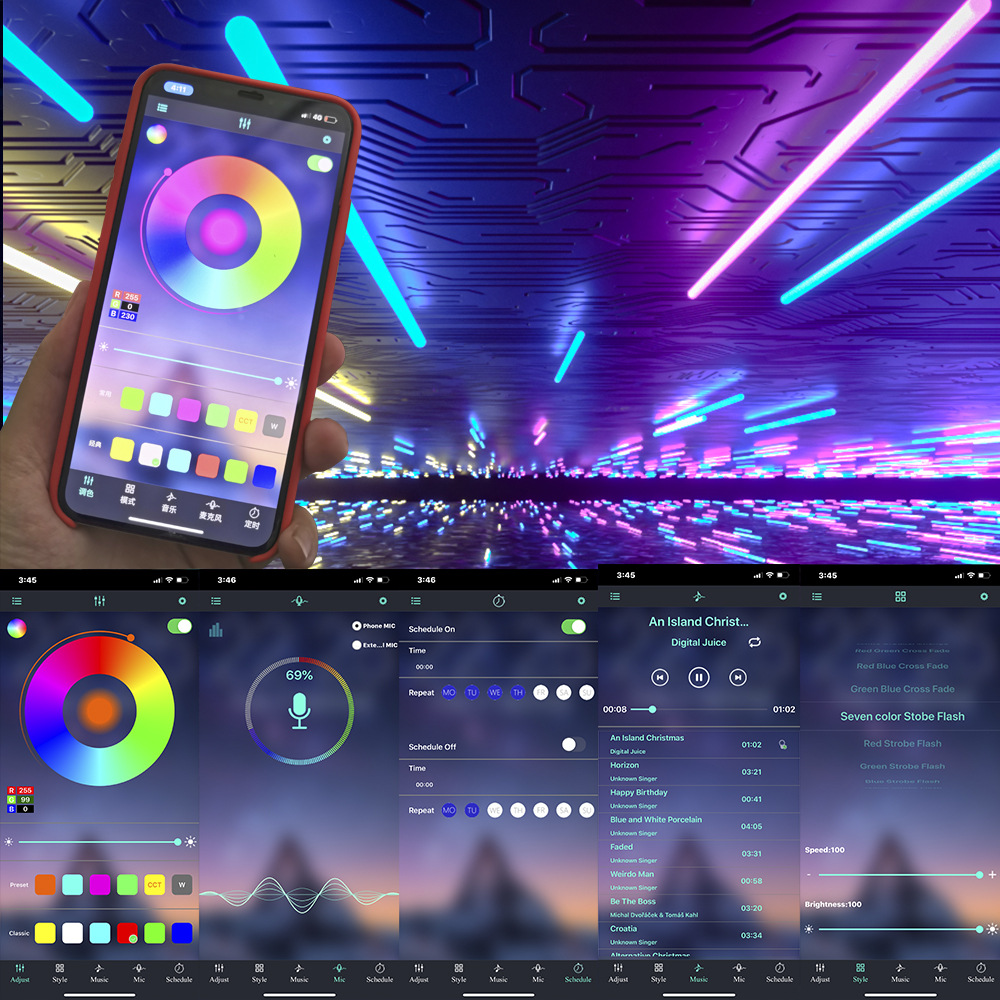

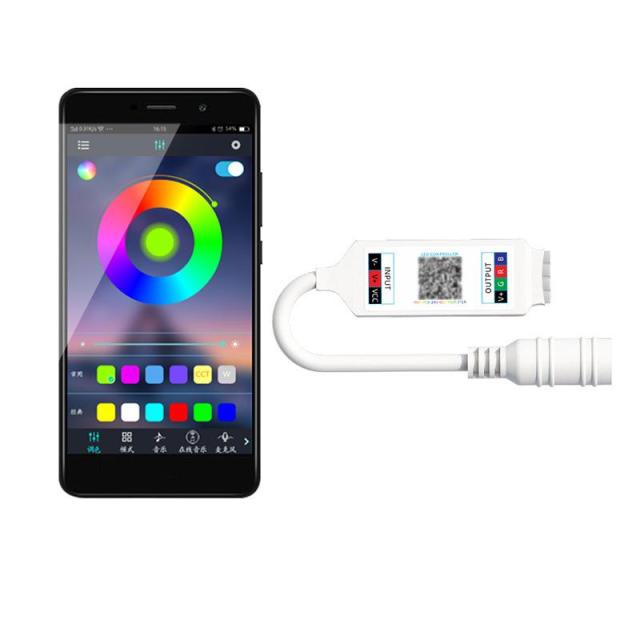

"Lotus Lantern" APP Interface & Application:
