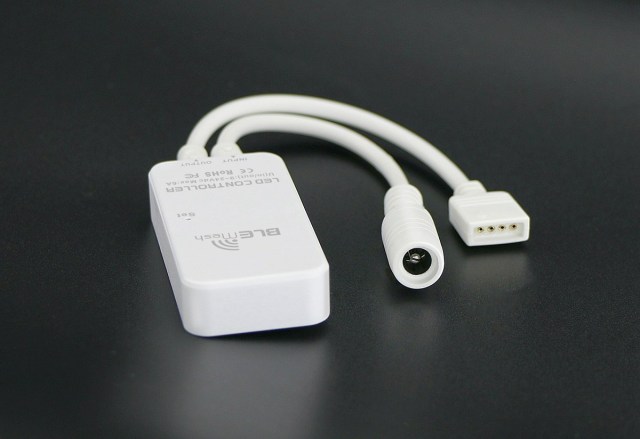

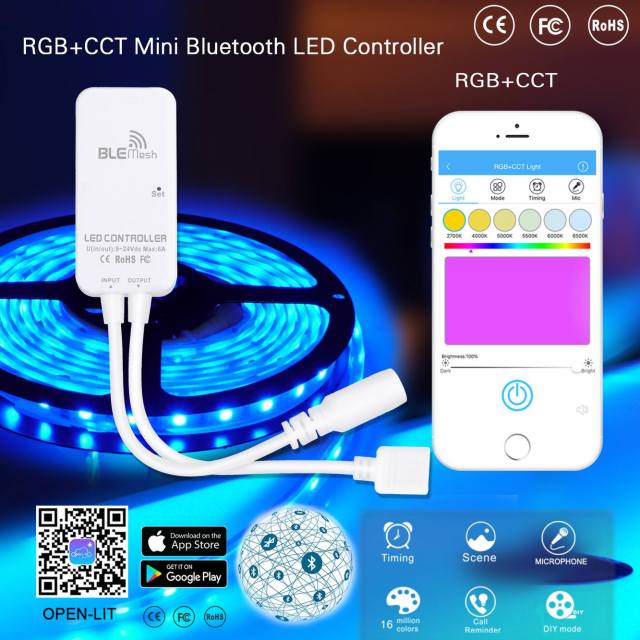

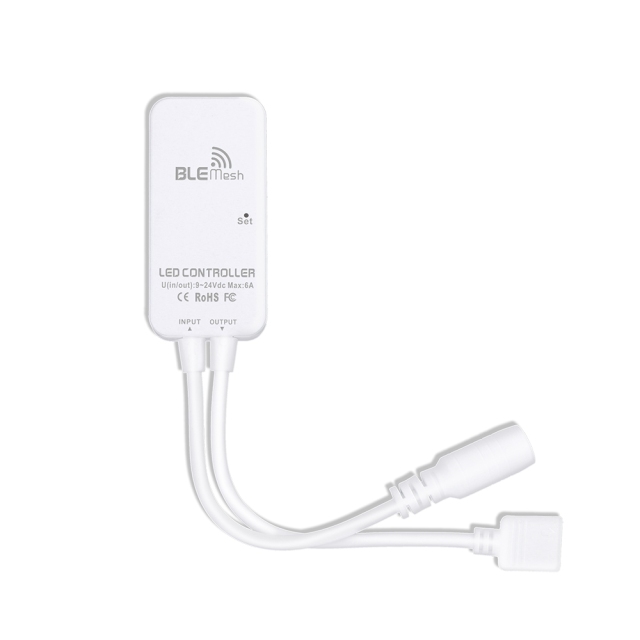

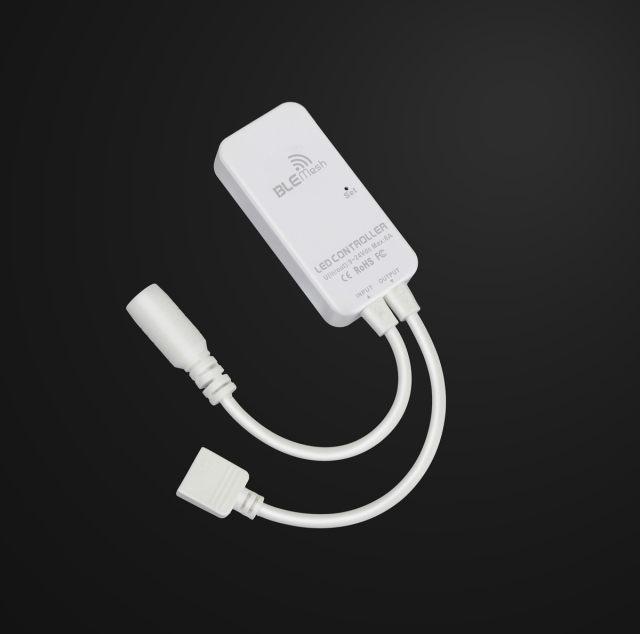

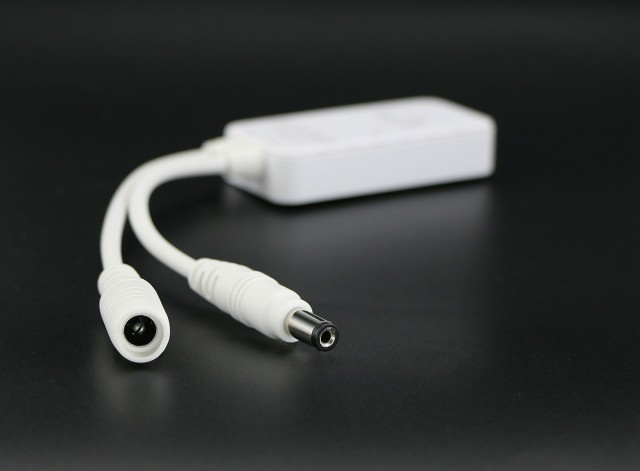

Bluetooth Mesh mini LED Controller -- DIM/CCT/RGB/RGBW/RGBCW --"OPEN-LIT" APP

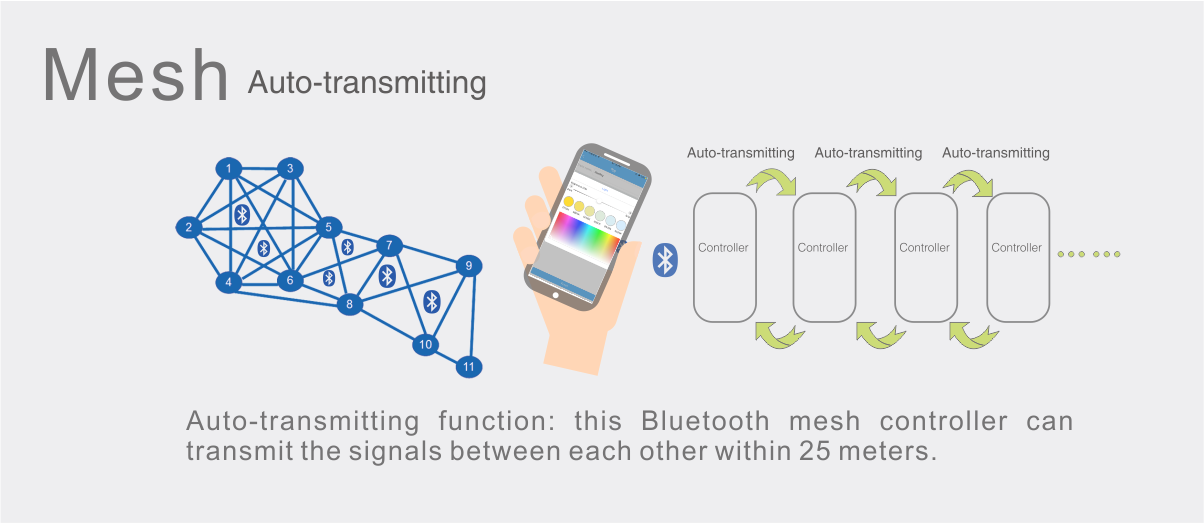

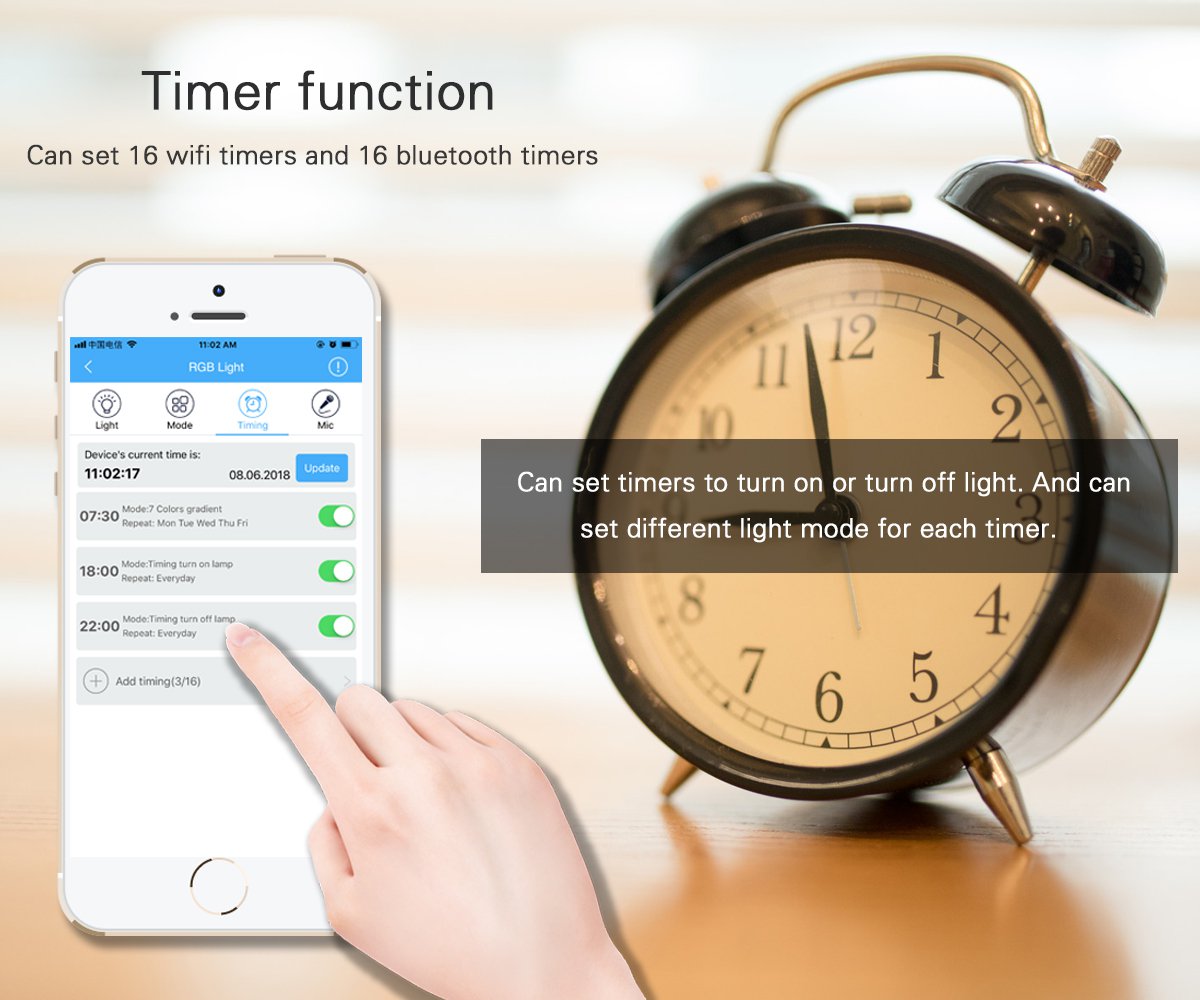

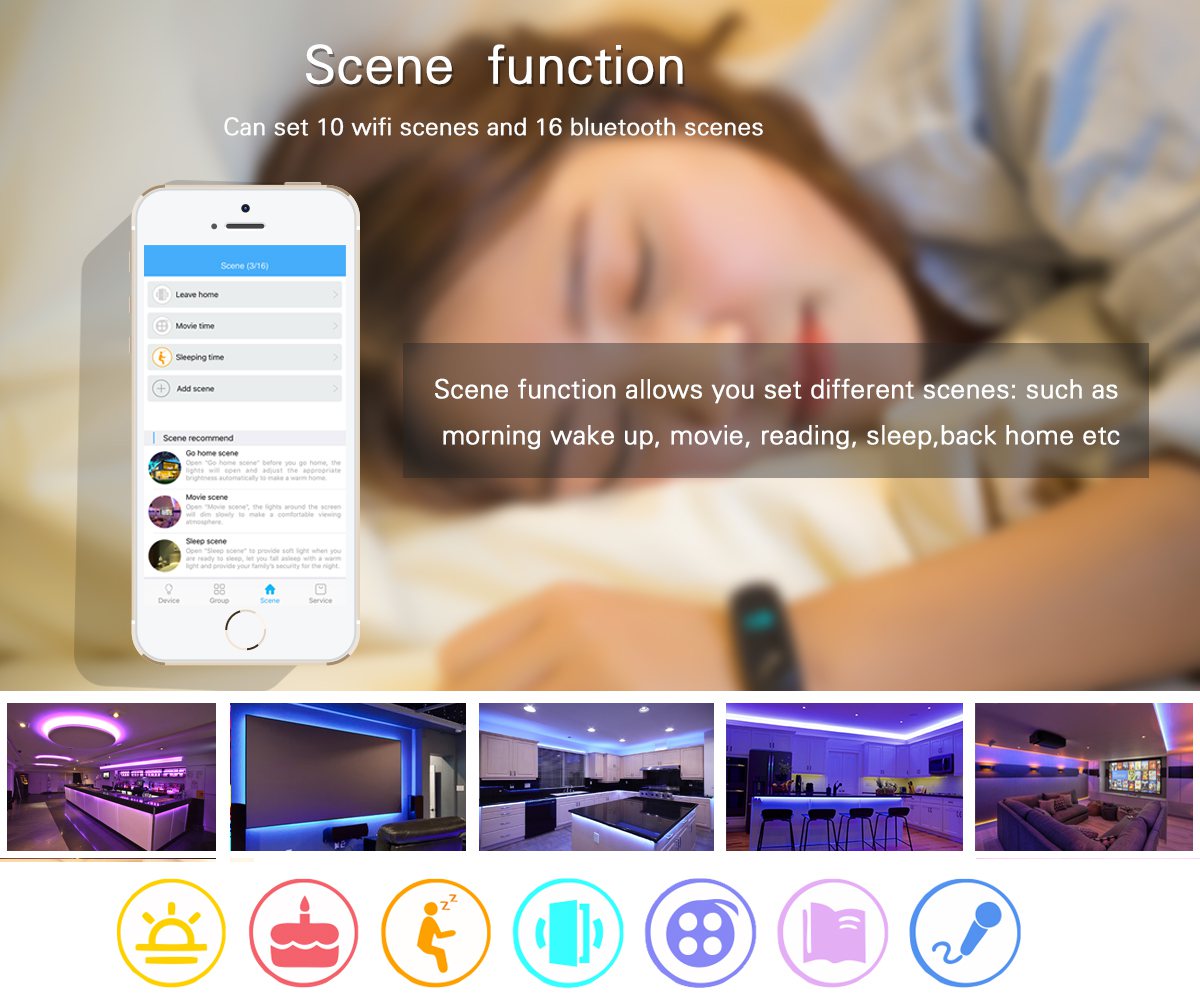

Mini series bluetooth mesh controller is a kind of brand new smart controller. It uses the latest Bluetooth Mesh module and Bluetooth networking technology. Use low power consumption both-way communication Bluetooth mesh chip to make sure controller have longer distance. The latest APP interface design makes the operation of color adjustment, brightness adjustment and saturation adjustment easier, faster and more humanized.The main functions are brightness adjustment, timer, group, scene, call reminder and so on.This controller is with power off memory function, next time to used it, will start with the model it save. Mainly used to control all kinds of constant voltage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on.

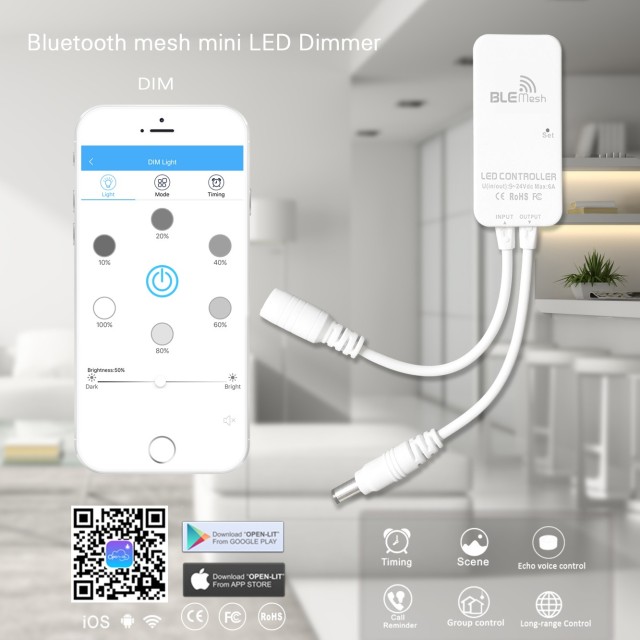

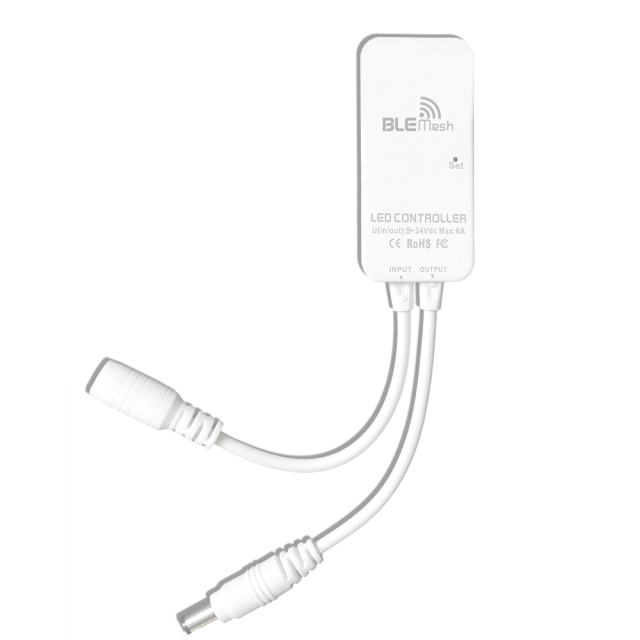

DIM:

1 Channel

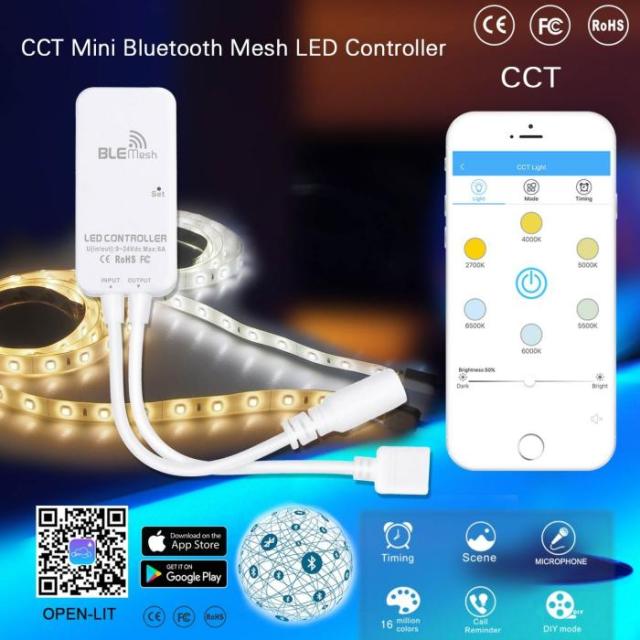

CCT:

2 Channel

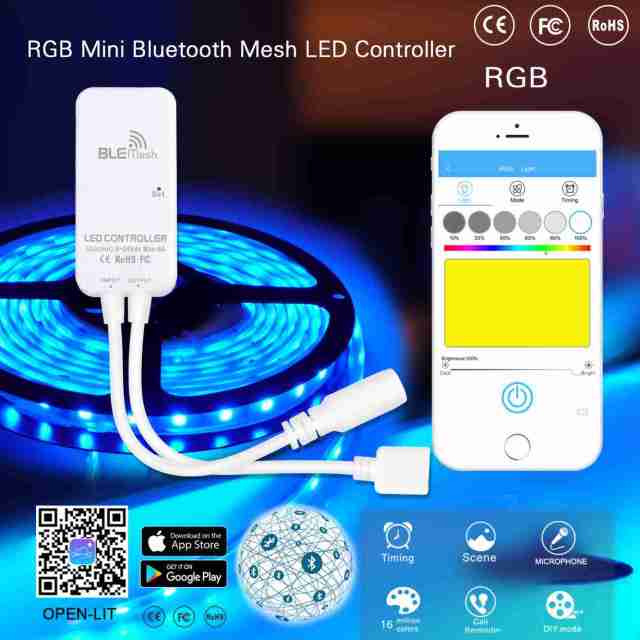

RGB:

3 Channel

RGBW:

4 Channel

RGBCW:

5 Channel

Description

Technical Parameters：

- - - Product name: Mini Bluetooth mesh LED controller
    - Model: OP-BL-M1/M2/M3/M4/M5
    - APP Type: OPEN-LIT
    - Input voltage: DC9V~24V
    - Output voltage:DC9V~24V
    - Working temperature:-30~55℃
    - Static power consumption：<1W
    - Connection mode：Common anode

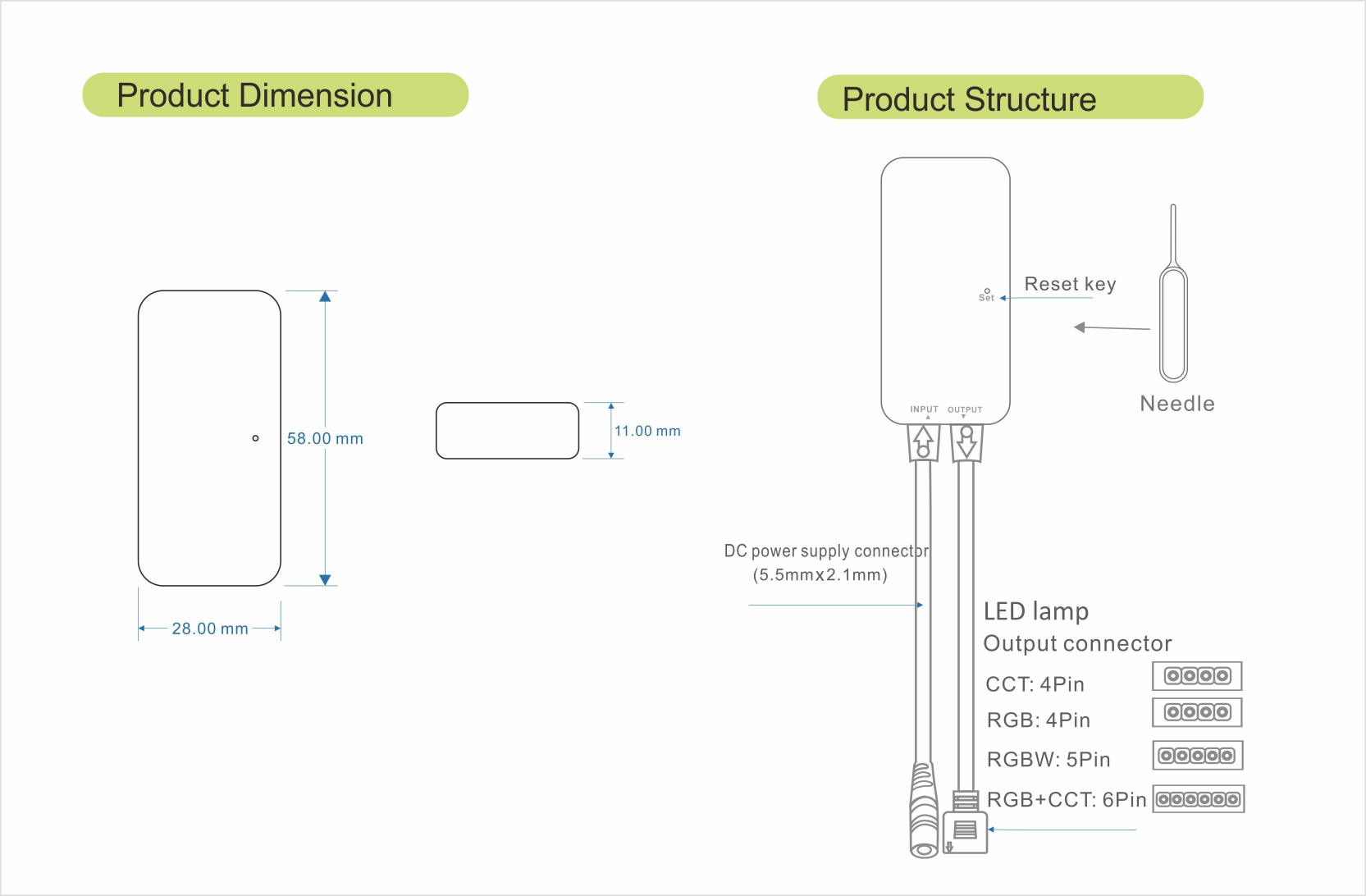

    - Dimension:L58XW28XH11mm
    - Packing size: L95XW60XH18mm
    - Net weight: 30g Gross weight: 45g
    - Output current: Max:6A
    - Output power: Max:9V:<54W,12V:<72W, 24V:<144W
    - Output control: DIM/CCT/RGB/RGBW/RGBCW LED lamps
    - Certification: CE ROHS FCC ( module) Contain FCC ID: 2AOTXBLE-M1

Controller fuction instruction：

Configuration:

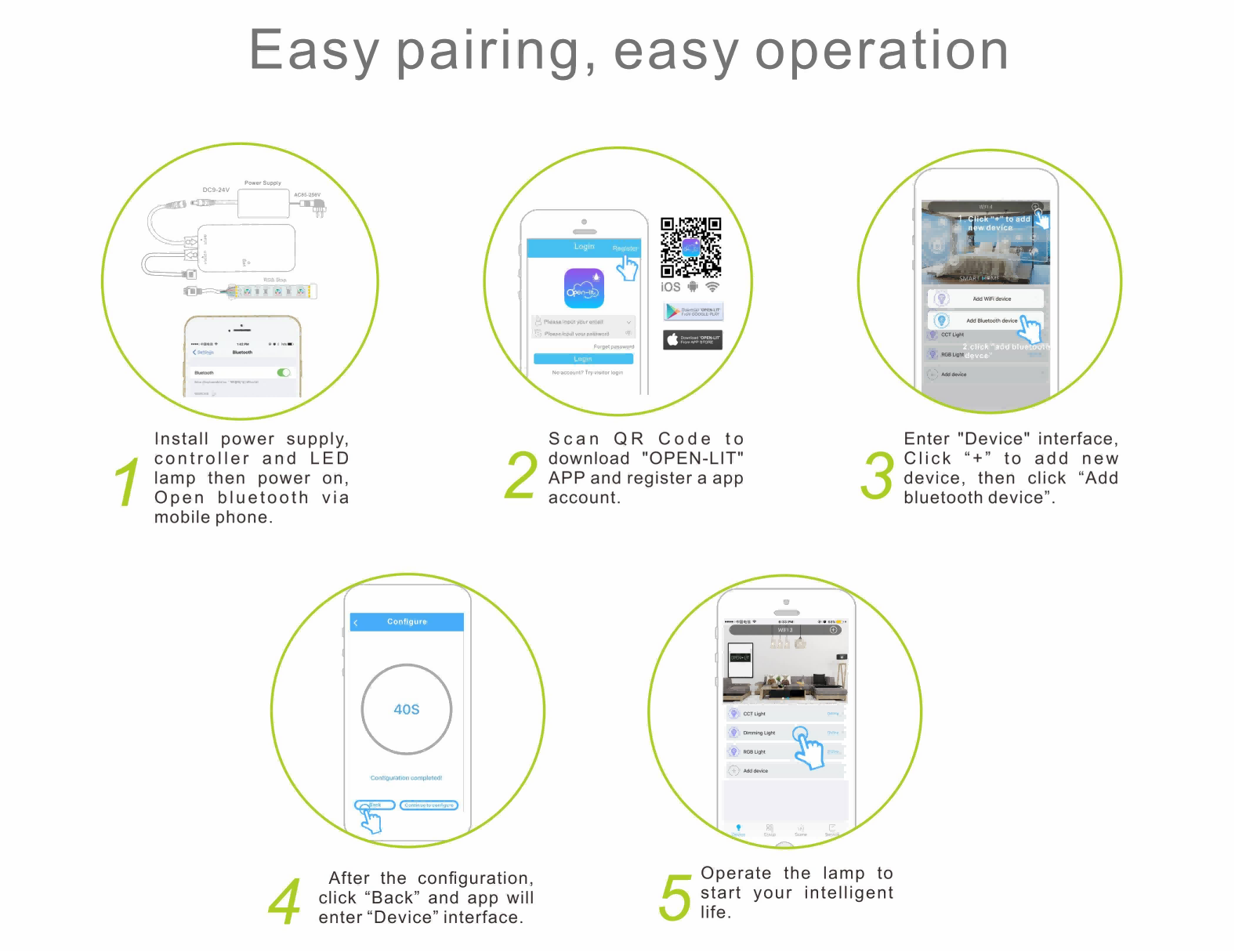

Install power supply, controller and LED lamp then power on, OpenBluetooth via mobile phone.
Scan QR Code to download the APP via mobile phone, or search "OPEN-LIT" in APP Storeor Google play→Turn on APP , click “Register”in the top right→Enter your email→Set your password→click “Register”.
After login, enter "Device" interface, Click “+” to add new device, then click “ Add Bluetoothdevice” to start conﬁguration.Then APP will remind you if it complete the conﬁguration within 40 seconds.
After the conﬁguration, click “Back” and app will enter “Device” interface. Please click“ Continue to conﬁgure”if the conﬁguration failed or you want to conﬁgure next device.
Open the “Device”interface, operate the lamp to start your intelligent life.

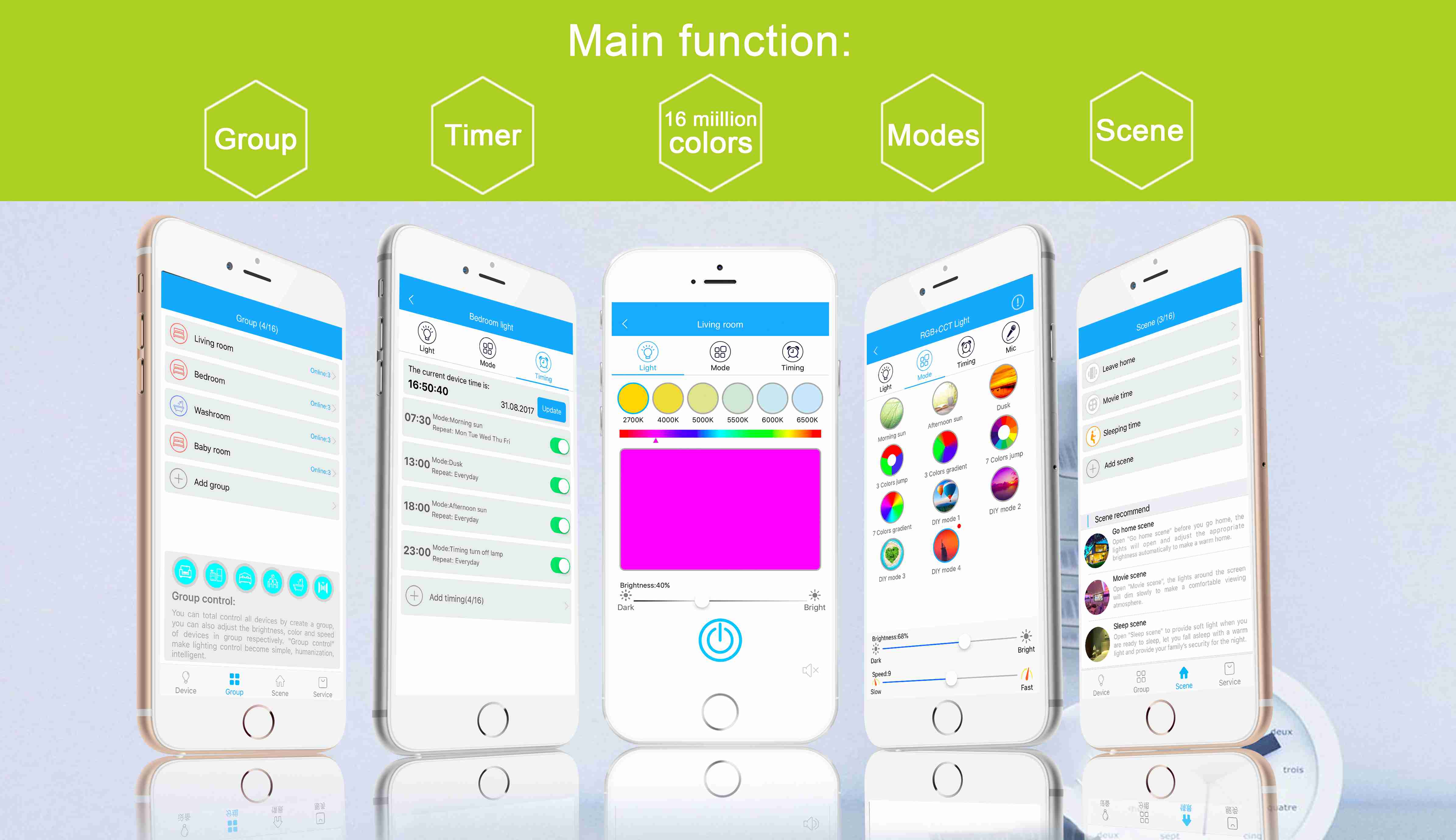

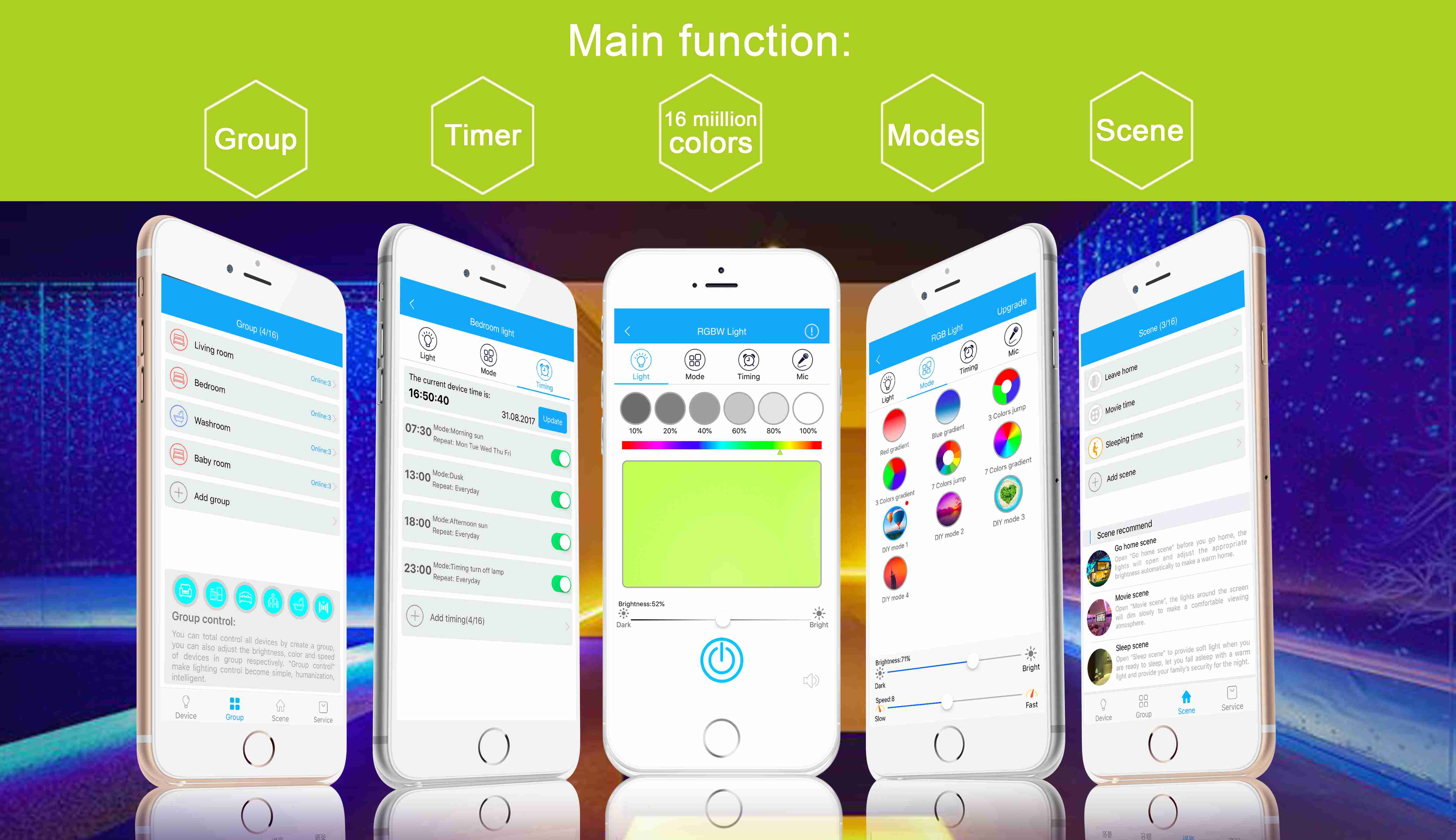

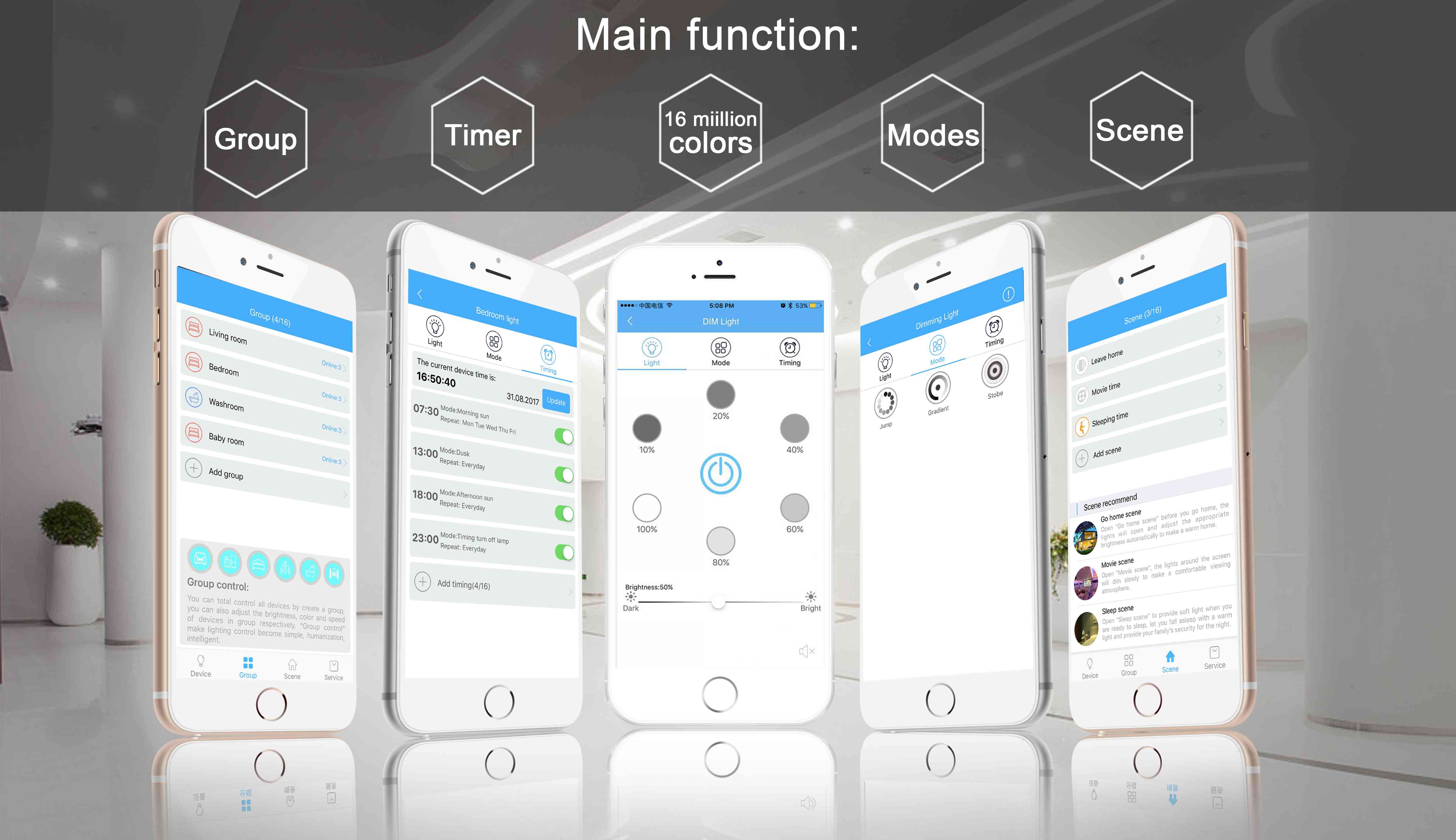

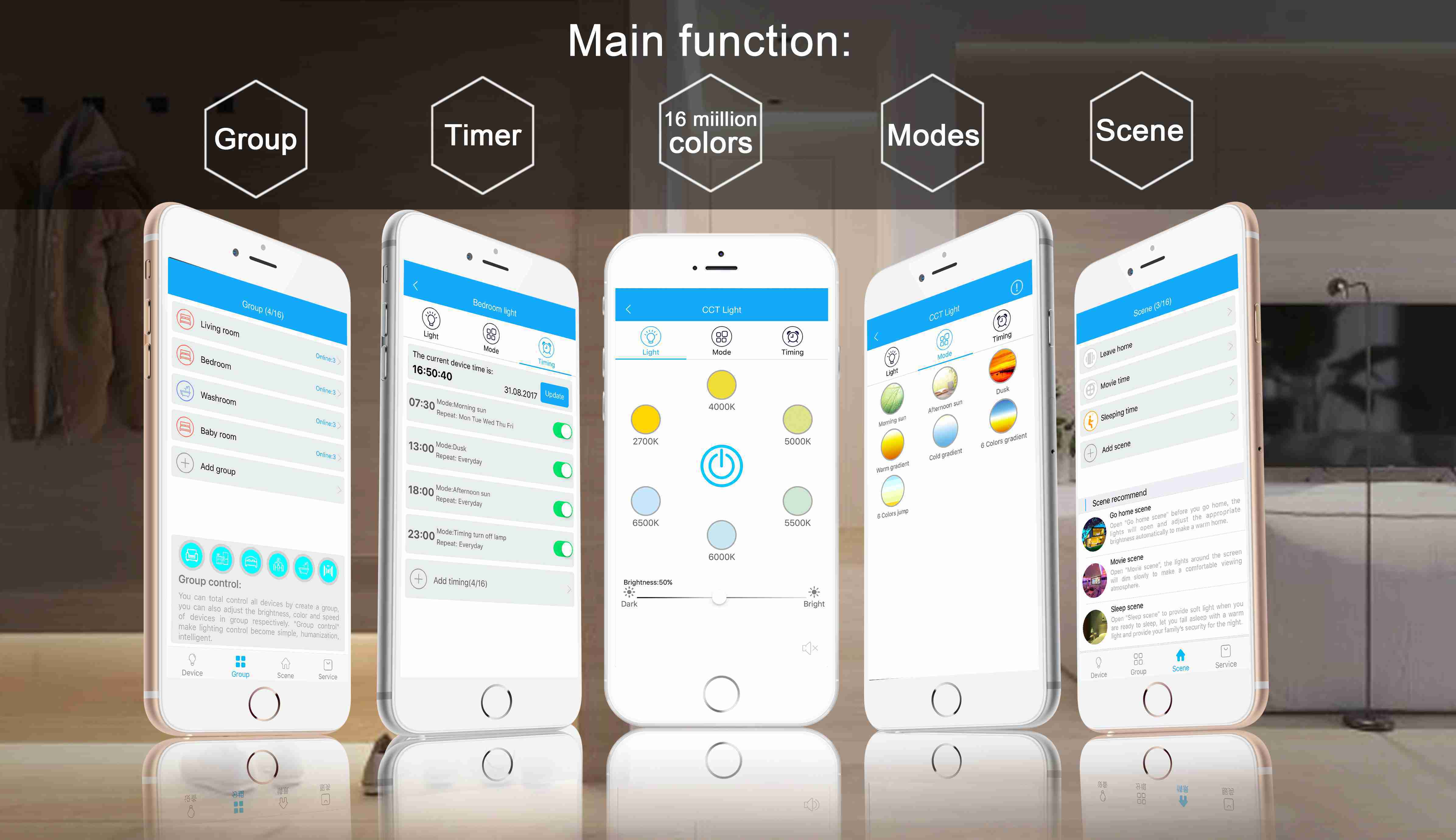

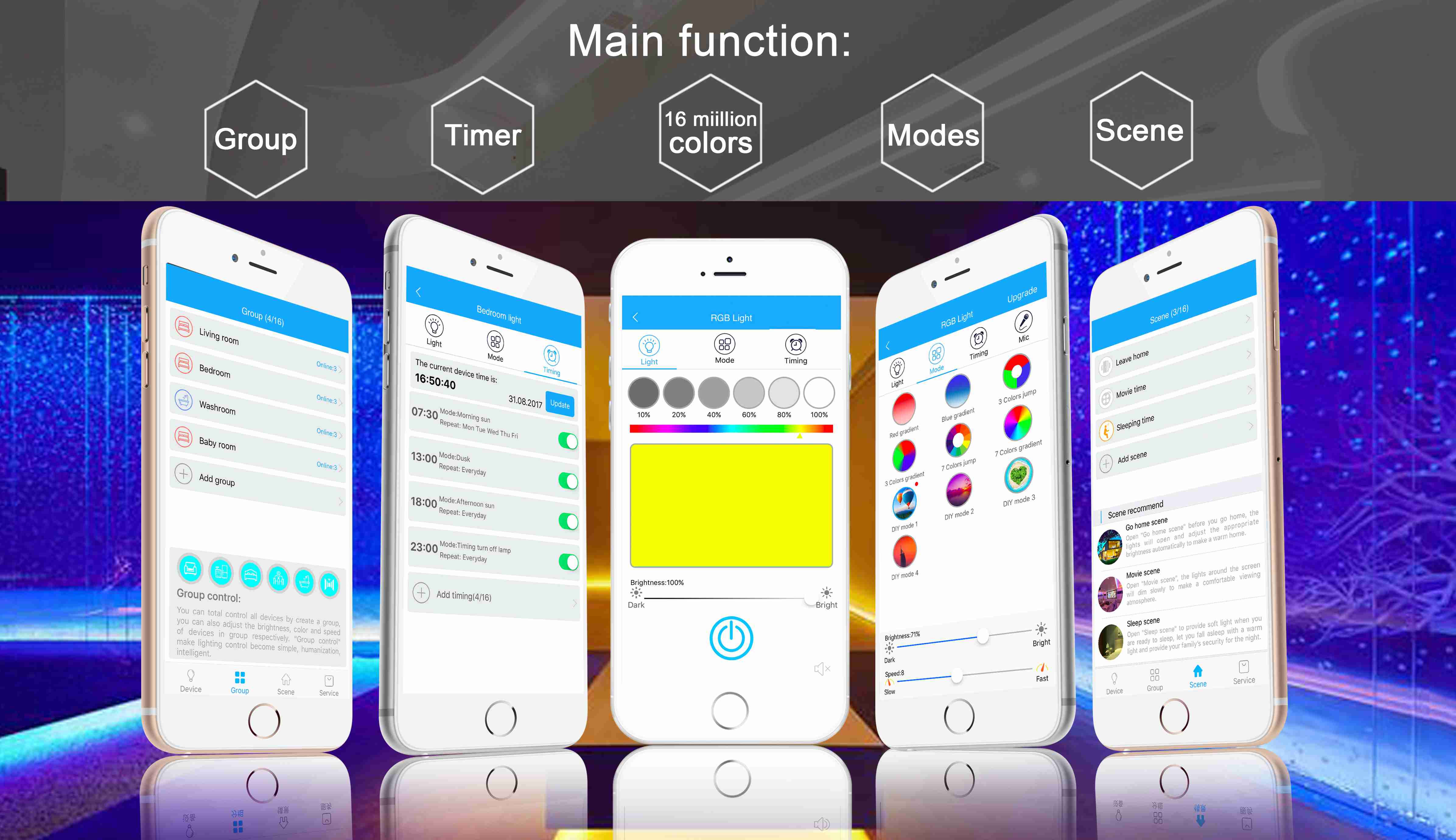

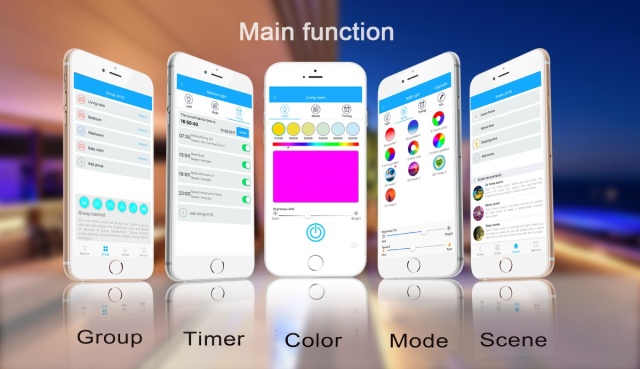

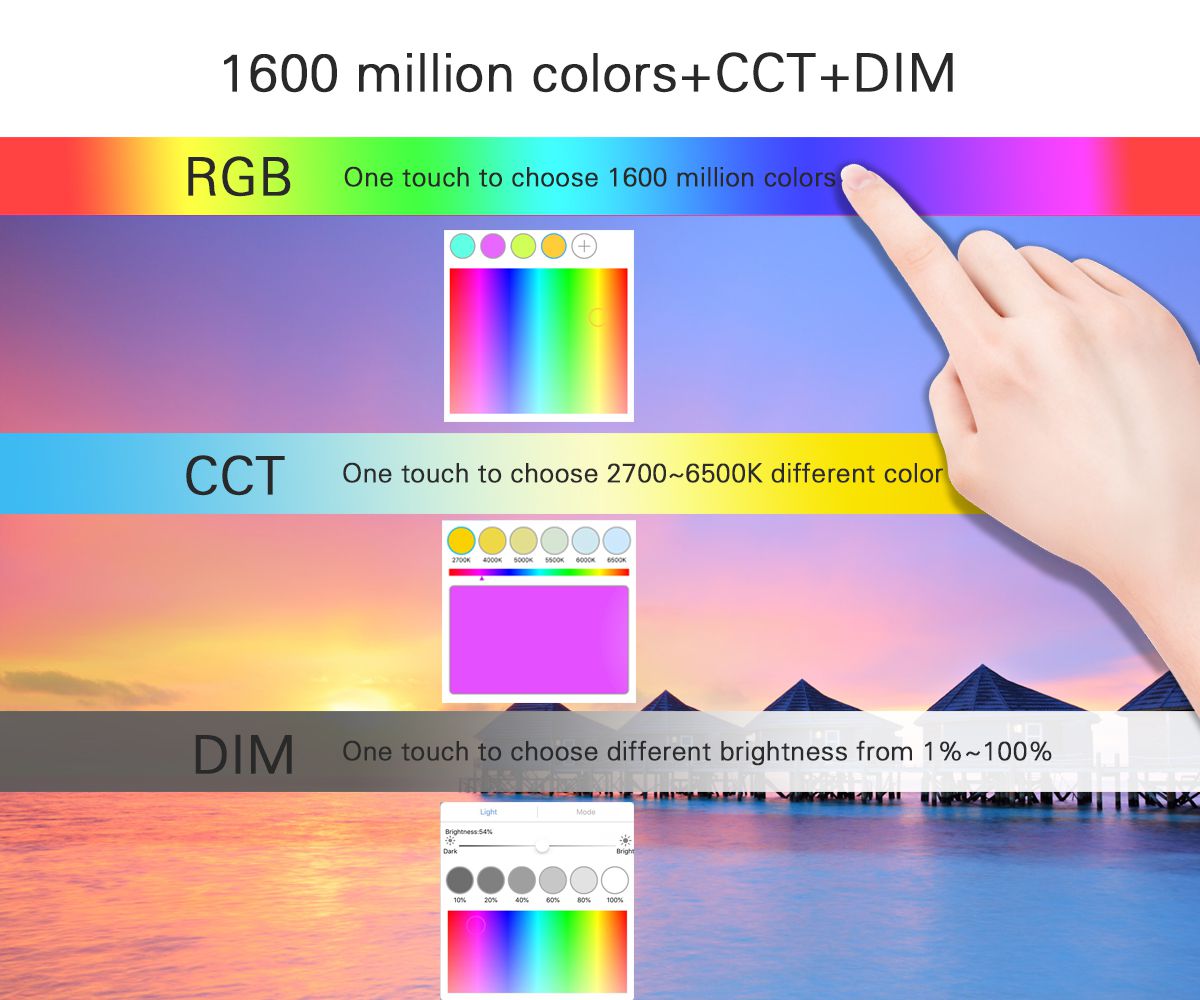

"OPEN-LIT" APP Interface: DIM CCT RGB RGBW RGBCW
