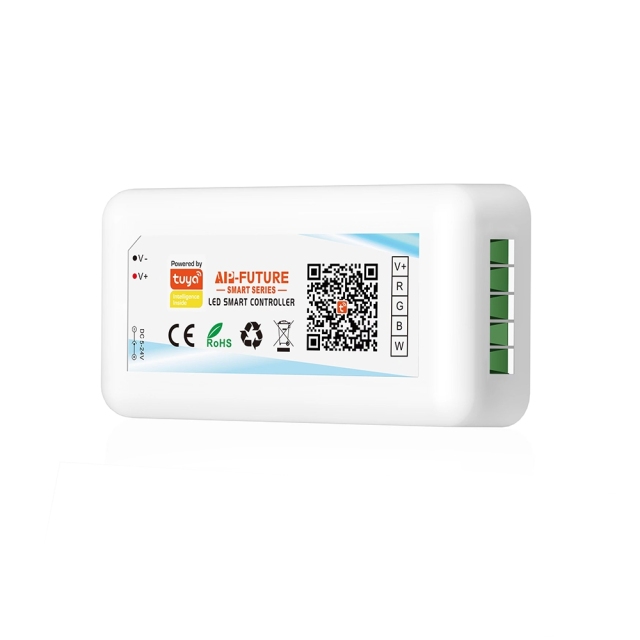

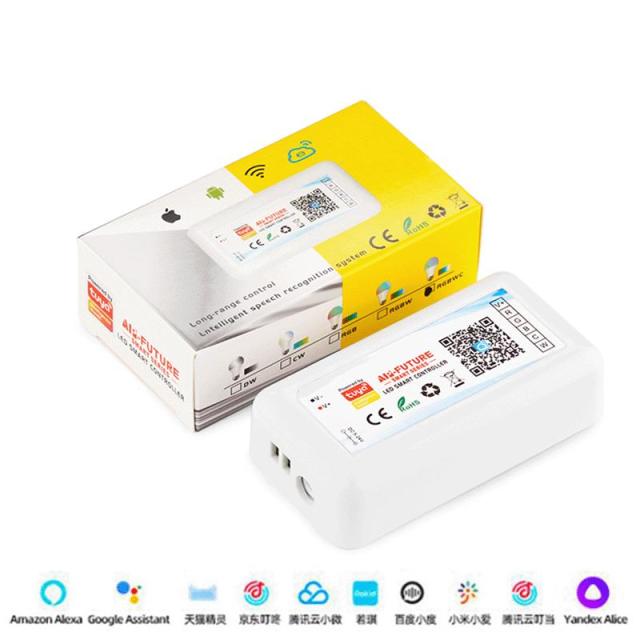

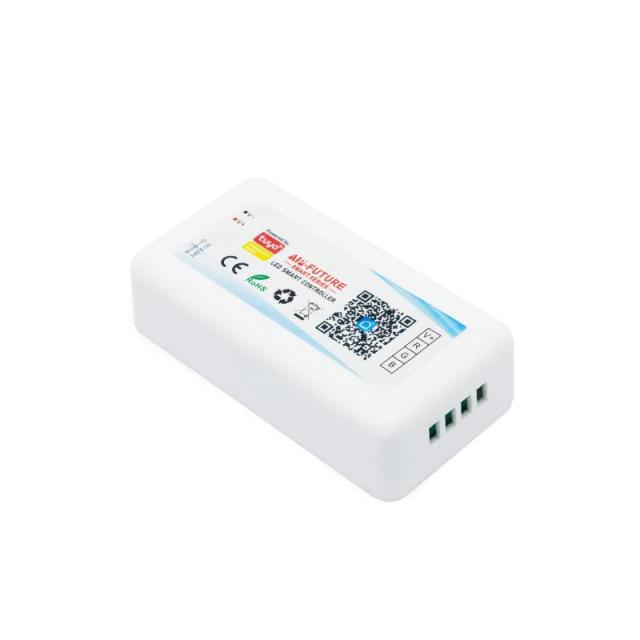

2.4G Tuya Smart app Wifi RGB Controller (DIM CCT RGB RGBW RGBCW)

No.OP-M1/M2/M3/M4/M5

Tuya Smart app Wifi RGB(W) Controller is a intelligent LED controller which is compatible with mobile phone control, voice control. Using Tuya wifi solution technology and the most advanced PWM (pulse-width modulation) control technology. It can control LED Strip light, LED modules, LED light bar, LED light box etc . It has the advantages of convenient connection and use simple, and memory storage.

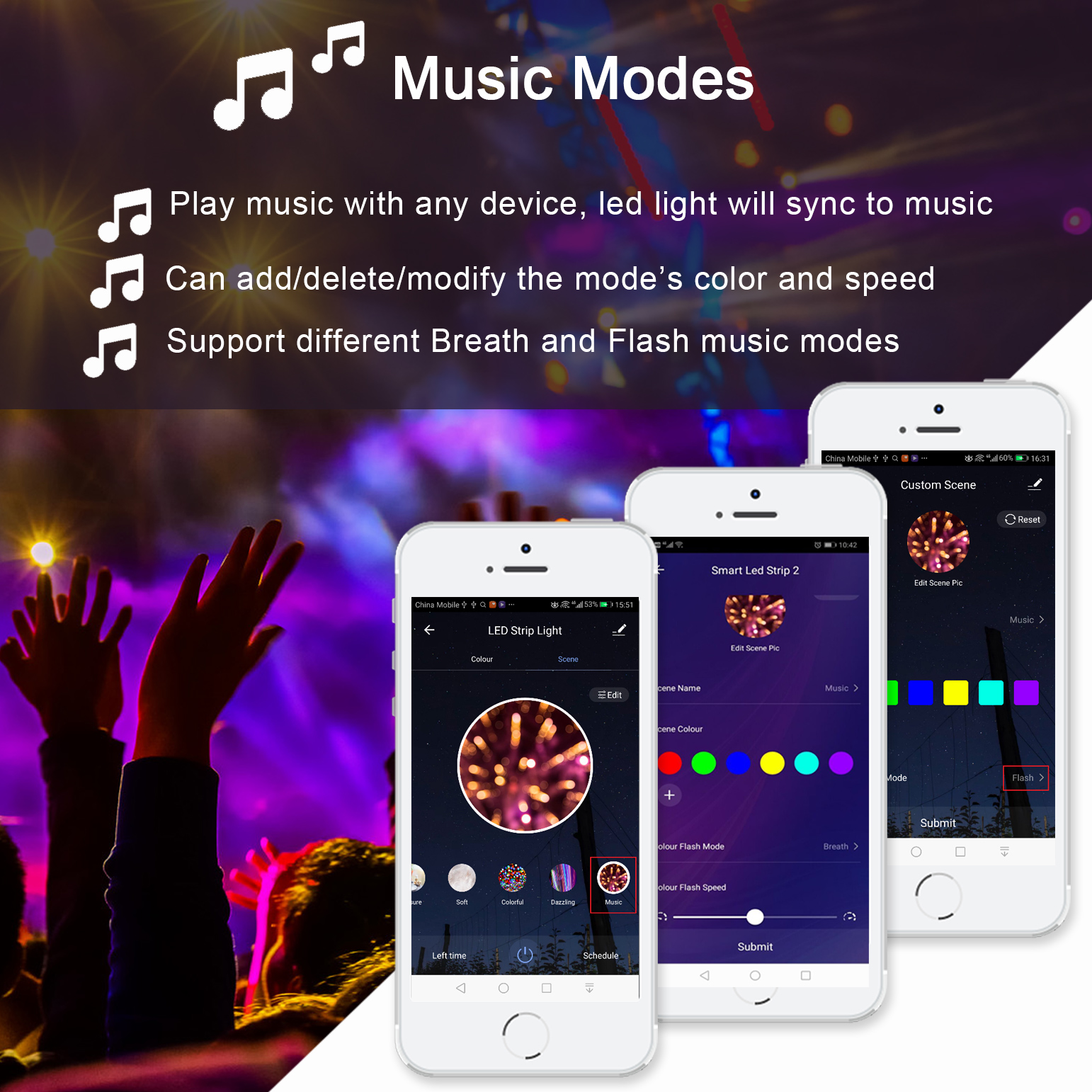

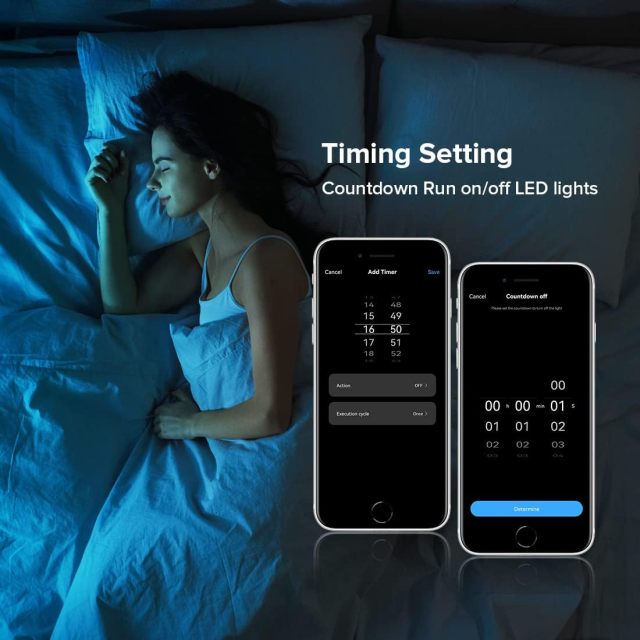

Through the mobile phone or RF remote control to change the mode selection, brightness adjustment, speed regulation, Scene DIY modes, Timer function, Music control and other functions. According to the customer actual demand it can realize the colors jump, the gradient changes, such as dynamic light stroboscopic effect.

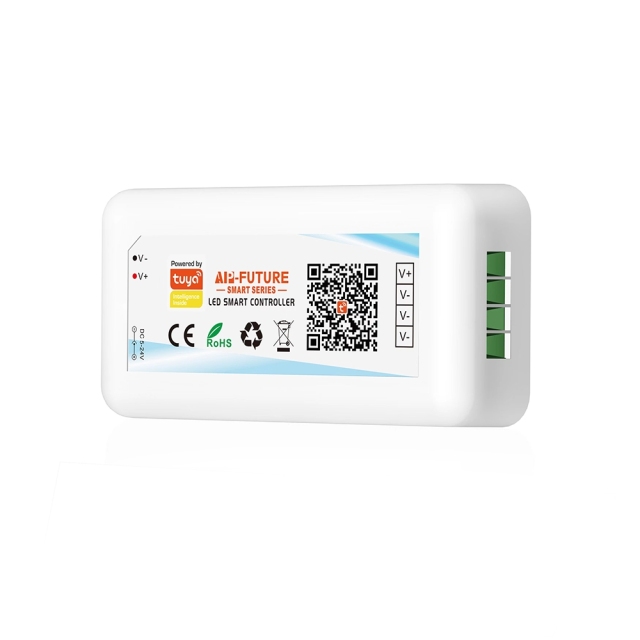

DIM:

3 Channel ( same V-)

CCT:

2 Channel

RGB:

3 Channel

RGBW:

4 Channel

RGBCW:

5 Channel

Description

Technical Parameters：

Receiver:
● Input voltage：DC 5V~24V	●Output type: DIM/CCT/RGB/RGBW/RGBCW
● Output：3CH-DIM / 2CH-CCT/ RGB / 4CH-RGBW /5CH-RGBCW	● Connection mode：Common anode
● Max output current：≤6A/CH Max：18A	● Static power consumption：<1W
● Controller size：L84.5mmW45H22.3mm	● Net weight：52g
● Packing size: L92W52H30mm	● Output power：5V:≤90W, 12V:≤216W, 24V:≤432W

Tuya APP wifi device pairing instructions:

1. Before use, please install wifi control software App (“Tuya Smart” or “Smart life”) on mobile, open the phone wifi function and connect the router.

2. Open the control software APP-“Tuya Smart”or“Smart life” on the phone:

If you don’t have an account, please click “Register” to register an account first; if you already have an account, you can use the existing account to log in directly.

3. After registration, log in and enter the homepage "Home", Click "Add Device" or "+" sign in the upper right corner to add a wifi device; Select the "Lighting" line item in the Add Manually column, select the “Lighting (Wi-Fi)” go to the “Add Device” page;

4. Controller device part installation :

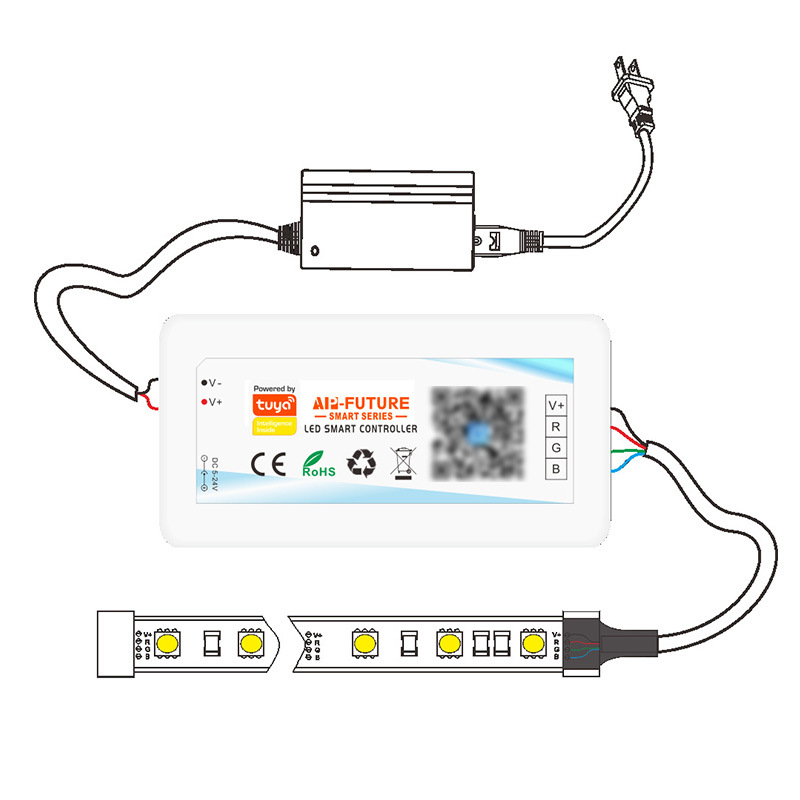

Connecting controller and output led light first, then connect the power supply , to ensure no short circuit between the cables before power on,supply voltage is DC5-24V, do not input on other voltage.

5.Wifi device configuration status setting & Factory reset:

Long press”on/off” button on the controller for 5 seconds into wifi pairing status, and the light fast blinking means setting successfully.

6.Select wifi routing network and input password ---> click “next”---> click “blinking quickly”--->, app will remind “ Add successfully” , the output light will stop fast blinking at the same time. now you can customize the naming settings for the controller.

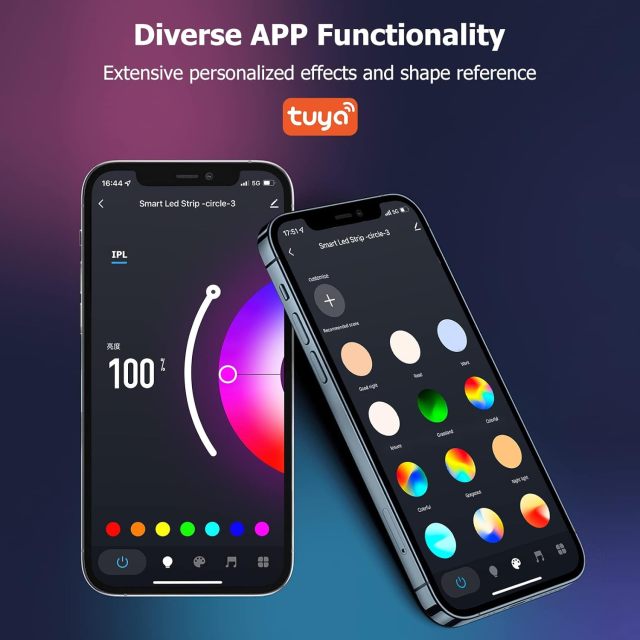

Tuya APP Interface
